Administrator‘s Guide for Yealink VC110 Video Conferencing Endpoint
208
3.

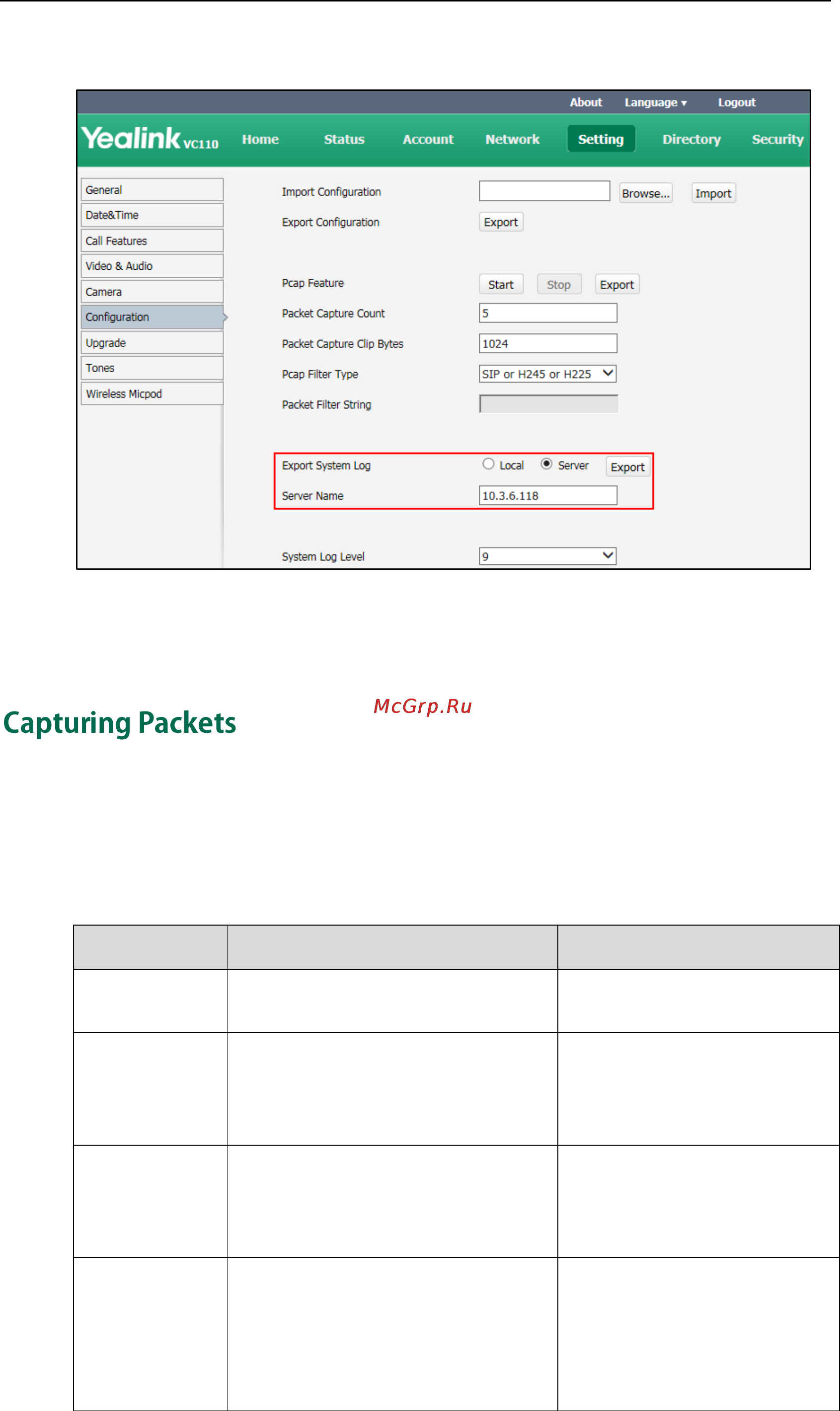

Enter the IP address or domain name of the syslog server in the Server Name field.
A dialog box pops up to prompt that settings will take effect after a reboot.
4. Click Confirm to reboot the endpoint immediately.
The administrator can capture packets in two ways: capturing the packets via web user
interface or using the Ethernet software. Engineers can analyze the packets to
troubleshoot problems.
Packets parameters are described below:
Parameter
Description
Configuration Method
Pcap Feature
Start and stop capturing packets or
export the captured packets.
Web User Interface
Packet Capture
Count
Configures the count of the number
of packets to capture.
Default: 5
Web User Interface
Packet Capture
Clip Bytes
Configures the number of bytes (in
kb) of the packet to capture.
Default: 1024
Web User Interface
Pcap Filter
Type
Configures the filter type of the
packet to capture.
Valid Values:
Custom—Customize the
Web User Interface
