TA Series Installation Guide
12/17
RJ21 Connection
Applicable to TA1600/2400/3200.
Connect one end of a RJ21 cable to the connector. Connect the other ends to
your analog telephones.
3.2.4 Connection of FXO Ports
TA FXO Gateways include TA410, TA810, and TA1610, supporting 4, 8, and 16 FXO
ports respectively.
Connect the FXO interfaces to the Public Telephone Network (PSTN) or a PBX
extension interface.
3.2.5 Power Connection
Connect the power adapter to the Gateway’s power port, and then plug the power
adapter into an electrical outlet. Press the On switch to power on the Gateway. The
gateway will start booting. In the meantime, users would see that the “POWER”
and “RUN” indicator lights turn on.
Note：Please switch off the power before plugging or unplugging the cables.

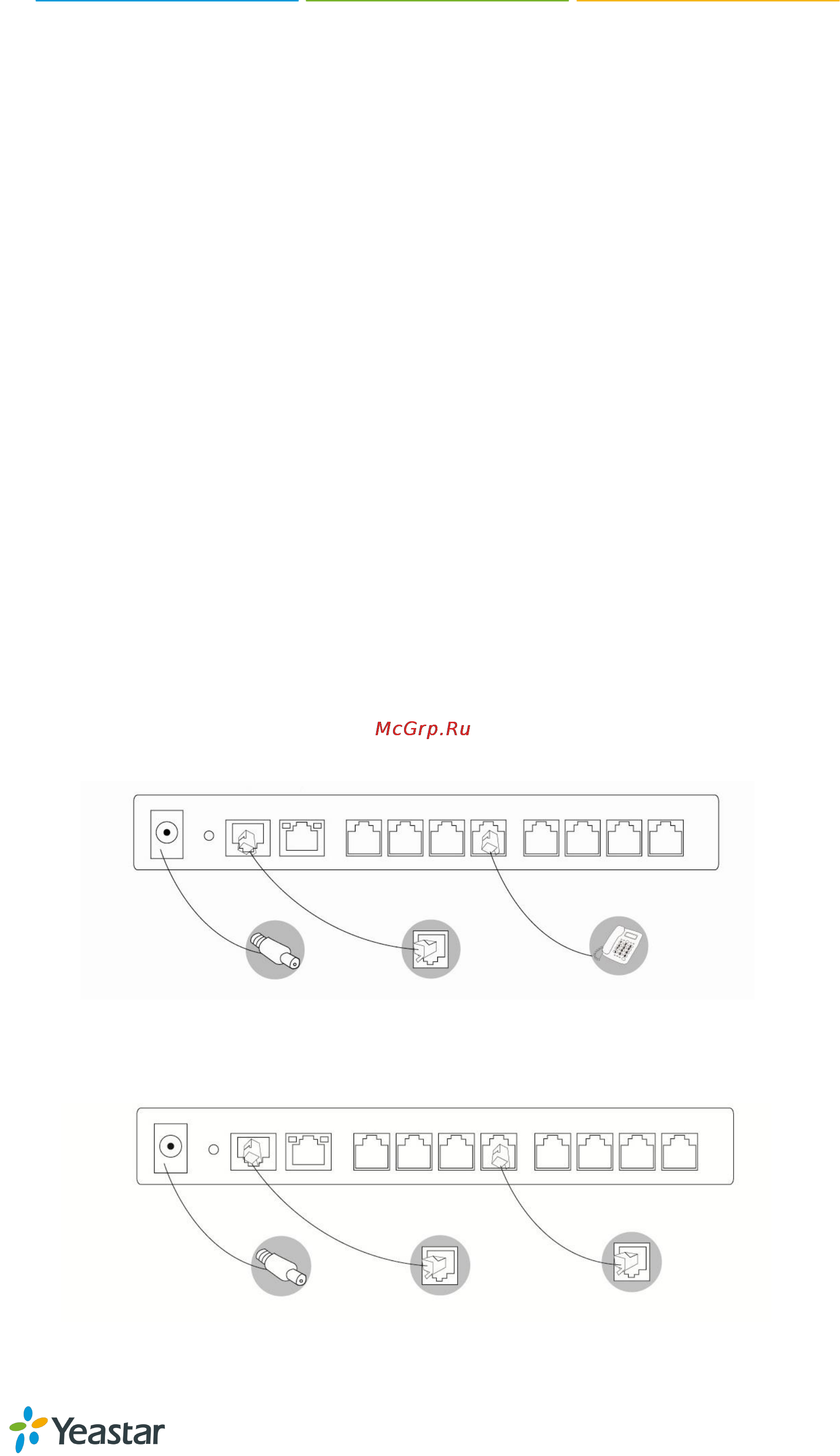

3.2.6 Connection Diagram
Figure 3-1 TA800 Connection Diagram
Figure 3-2 TA810 Connection Diagram
