Yealink sip-t41p [114/136] Music on hold

User Guide for the SIP-T41P IP Phone

104

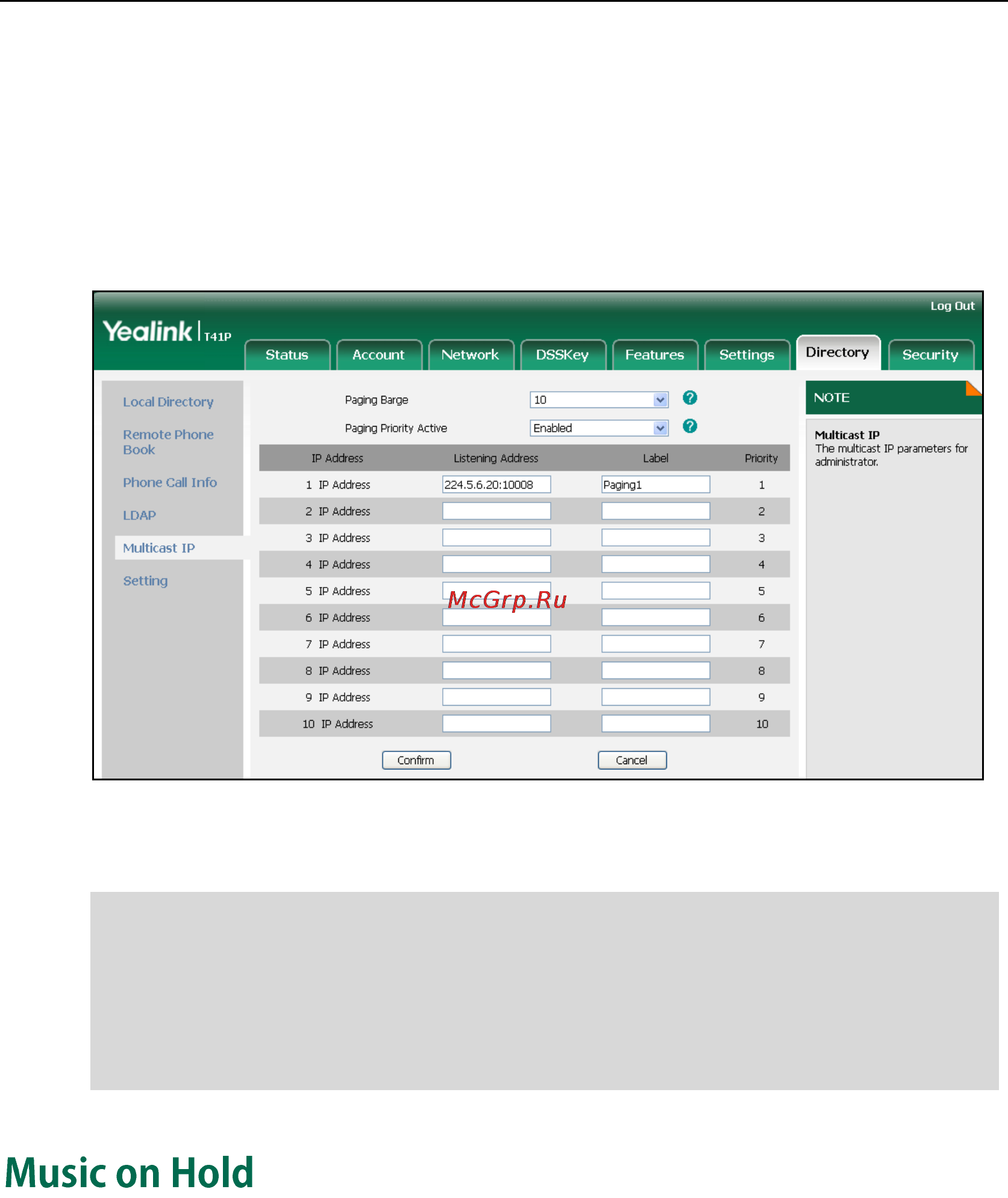

3. Select the desired value from the pull-down list of Paging Priority Active.

4. Enter the multicast IP address(es) and port number (e.g., 224.5.6.20:10008) which

the phone listens for incoming RTP multicast in the Listening Address field.

5. Enter the label in the Label field.

Label will appear on the LCD screen when receiving the multicast RTP stream.

6. Click Confirm to accept the change.

Note

Music on hold (MoH) is the business practice of playing recorded music to fill the silence

that would be heard by the party placed on hold. To use this feature, you should specify

a SIP URI pointing to a Music on Hold Server account. When a call is placed on hold, the

phone will send a SIP INVITE message to the Music on Hold Server account. The Music

on Hold Server account automatically responds to the SIP INVITE messages and

immediately plays audio from some source located anywhere (LAN, Internet) to the

held party. Contact your system administrator for the SIP URI.

To configure music on hold server via web user interface:

1. Click on Account.

2. Select the desired account from the pull-down list of Account.

3. Click on Advanced.

The priorities of listening addresses are predefined: 1 with the highest priority, 10 with the

lowest.

Both the multicast paging sender and the receiver play a warning tone when

establishing a multicast paging call.

Multicast listening addresses are configurable via web user interface only.
