Zalman CNPS7X LED(+) [4/8] Installation

1) Intel Socket 1155 / 1156 / 775 / 1366 Installation

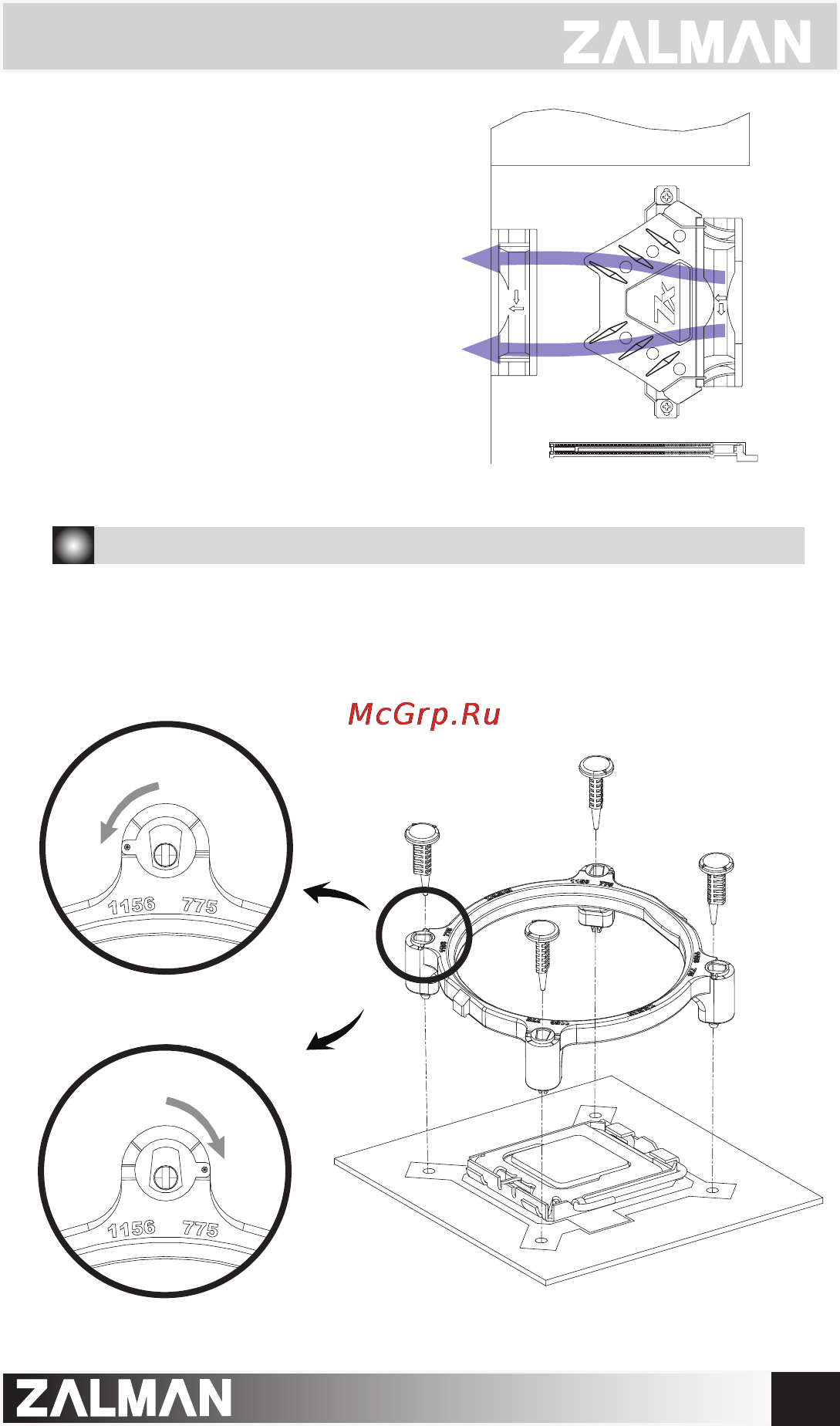

①-ⓐ A-type Clip Support Installation(Socket 1155/1156/775)

Align the A-type Clip Support’s lever with the socket type and

fasten to the motherboard with pushpins.

5. Installation

3) Cooler Orientation

As shown in the diagram below,

it is recommended that the

cooler be installed so that air

flows from the cooler toward the

enclosure’s rear exhaust fan to

be released.

※ Recommended cooler

orientation may differ

according to the motherboard

Socket 1155 / 1156
