Manzel
®
DSL Lubricators L51050

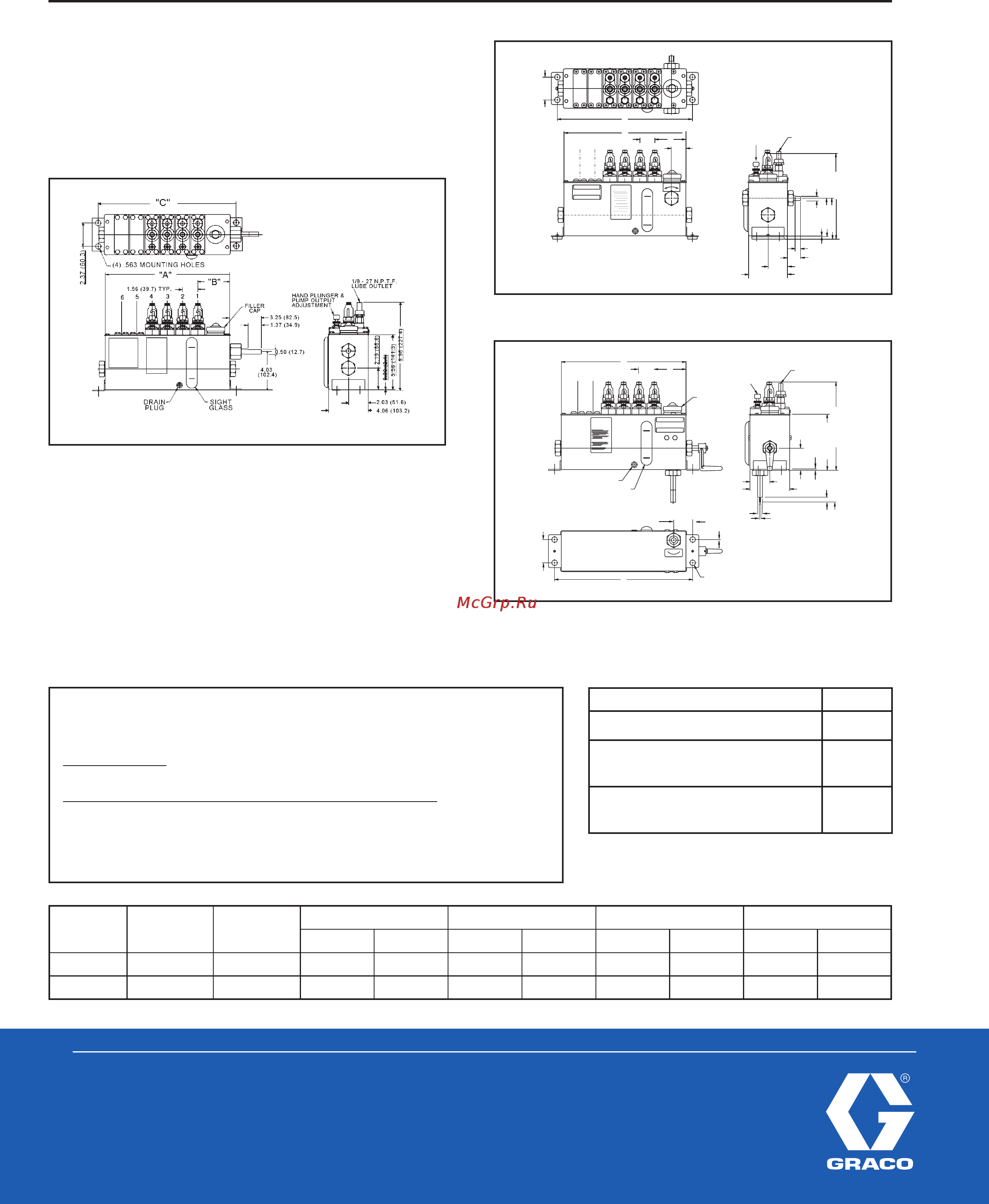

DRIVE OPTIONS
18 drive options are available from direct drive to a reduction ratio
of 283:1. Options provide left- or right -hand end and front side/back
side and bottom reservoir mounting.
123456
2.38 [60.3]
C
1.37 [34.9]
2.03 [51.6]
4.06 [103.2]
0.50
[12.7]
4.03 [102.4]
4.28 [108.7]
9.31
[236.4]
0.09
[2.4]
1/8"-27 N.P.T.F.
LUBE OUTLET
1.56 [39.7]
B
A
0.56 [14.3]
1.50
[38.1]
LUBRIQUIP, INC.
LUBRIQUIP, INC.
IDEX
AUnitofIDEXCorporation
FULL
EMPTY
MODELNUMBER
SERIALNUMBER
SERIA
HAND PLUNGER&
PUMP OUTPUT
ADJUSTMENT
SIDE ROTARY DRIVE
3 21
AUNITOFIDEXCORPORATION
PARTNo. 060160
MADISON,WISCONSIN53716-0999
MODELDSL LUBRICATOR
TOSTART LUBRICATOR
TOADJUST RATE OF FLOW
FAX608-221-8411
2001SOUTHSTOUGHTONROAD,P. O.BOX6999,
608-221-1100
654
IDEXCORPORATION
SERIALNO.:
MODEL:
90432
PARTNO.:
EMPTY
FULL
B
A
C
2.38
[60.3]
4x 0.56 [14.3] MOUNTING HOLES
1/8"-27 N.P.T.F.
LUBE OUTLET
HAND PLUNGER
& PUMP OUTPUT
ADJUSTMENT
FILLER CAP
DRAIN PLUG
SIGHT GLASS
2.03
[51.6]
4.06
[103.2]
0.09 [2.4]
5.75 [145.9]
9.03 [229.4]
0.50 [12.7]
0.13 [3.2]
0.50 [12.7]
3.25 [82.5]
LUBRIQUIP, INC.
LUBRIQUIP, INC.
IDEX
1.56 [39.7]
1.94
[49.2]
0.06
[1.6]
2.38
[60.3]
BOTTOM ROTARY DRIVE
END ROTARY DRIVE
Ordering
Code
Piston Size
(Inches)
Maximum
Pressure (Psi)
*Drops/Stroke Cu.In/Stroke Cm
3
/Stroke Strokes/Min
Max Min Max Min Max Min Max Min
D1 9/32 3000 6.25 2.0 0.15 .0048 .245 .079 25 3
D2 9/32 3000 6.25 2.0 .015 .0048 .245 .079 25 3
Description Part No.
(D1) 9/32 Vacuum Inlet Pump 256907
(D2) 9/32 Pressurized Inlet Pump
(10 psi max)
256908
Vacuum Inlet Pump w/Suction Tube length
reduced by 1 in.
256929
ORDERING INFORMATION –
For complete ordering information, please refer to the Industrial Lubrication Equipment Buyer’s Guide on graco.com
Input Speed
Gear Reduction
=
X
Pump Output
(min. or max. drops/stroke*)
14115 (number of drops in a pint)
Calculate Minimum or Maximum Pump Output Capacity
X
1440
(min./day)
Min. or Max.
Pump Output
(pints/day)
*Minimum and maximum drops per stroke listed in the specification chart below.
Contact us today!
To receive product information or speak with a Graco representative,
call 800-533-9655 or visit us online at www.graco.com.
©2013 Graco Inc. Form No. L51050 Rev. C 12/13 Printed in U.S.A. All other brand names or marks are used for identification purposes and are trademarks of their respective owners. All written and
visual data contained in this document are based on the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice.
