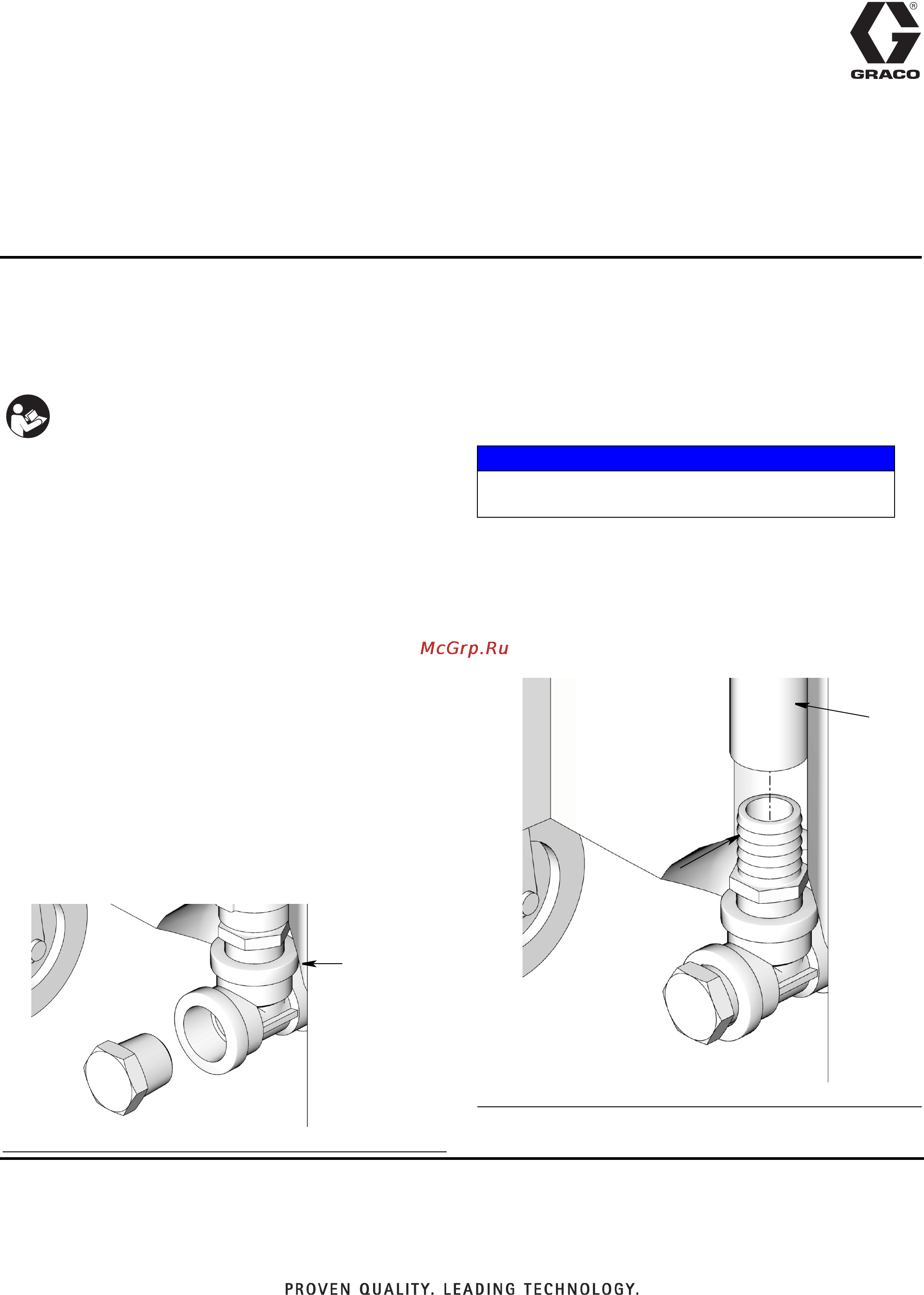

Sight Tube Repair

Kit

406831C

Sight Tube Replacement Instructions for Hurricane, Oil King or Coolant King Dispense

Carts.

Part No: 16C292

Includes:

Instructions

Disassembly

1. Open drain valve (Hurricane Dispense Cart) or

remove drain plug (Oil King or Coolant King Dis-

pense Cart) and drain waste fluid. Properly dispose

of the used oil or antifreeze (F

IG. 1).

2. Close drain valve or replace drain plug. Remove

clamps (a)and discard.

3. Using a heat gun, slightly warm the ends of the sight

tube.

4. Pull old sight tube (b) off tube adapters (c) on each

end of tube. Completely remove tube from unit.

Important Safety Instructions

Read all warnings and instructions in this manual.

Refer to Hurricane Pump, Oil King or Coolant

King manuals for additional instructions. Save

these instructions.

Ref No. Part No. Description Qty

1 192871 Sight Tube 1

2 122900 Tube Adapters 2

3 101818 Tube Clamps 2

IG. 1

NOTICE

Use care using the heat gun in the following

step. Do not burn or melt the tube!

IG. 2
