Main Components

As figure 2 shows, the main components of the 1230 dispense valve are easily recognized. For more valve

specifics, refer to p11-1, .

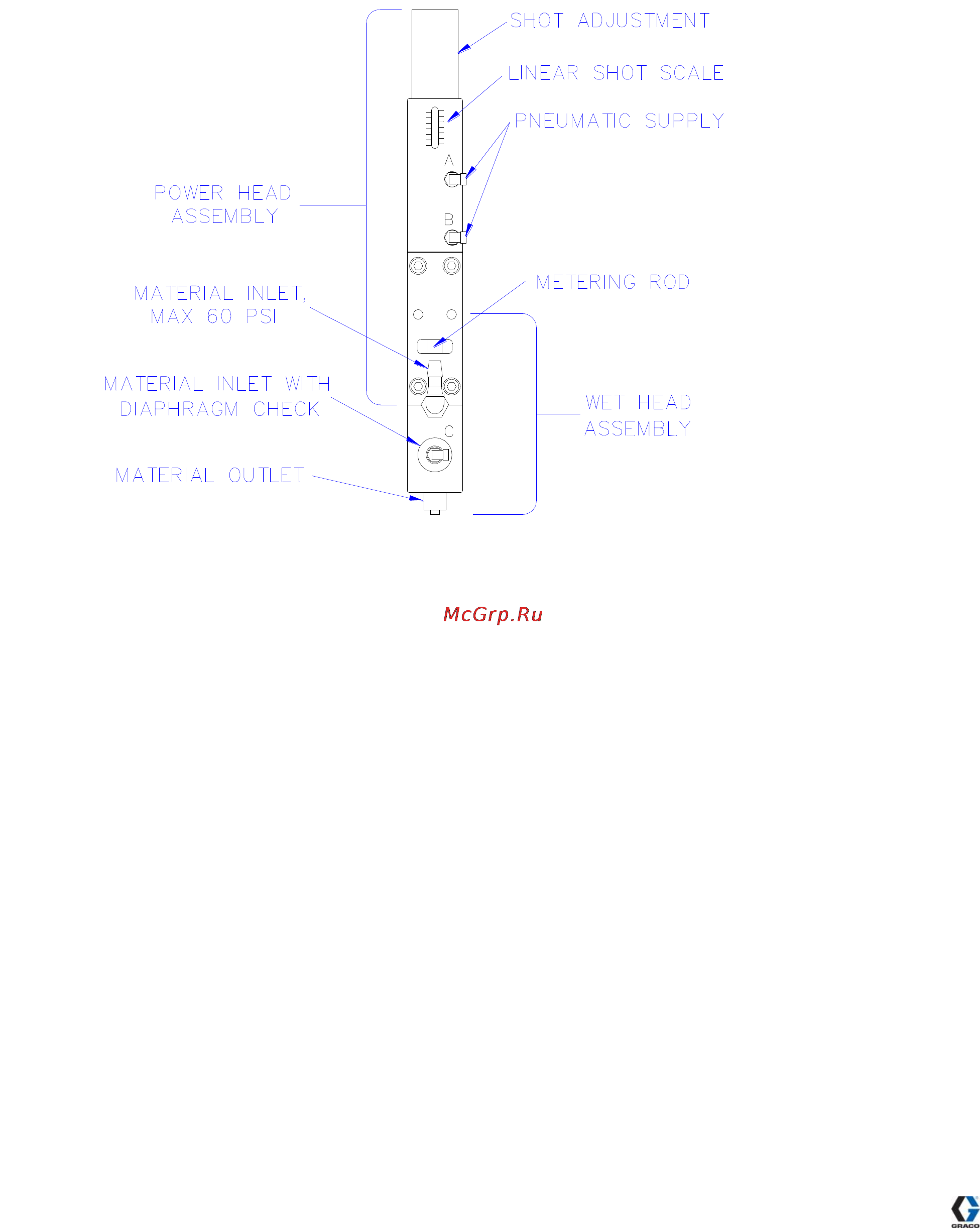

Figure 2. Main Components: The main components of the 1230 dispense valve are easily recognizable and

accessible. Detailed drawings can be found in the back of this manual.

The 1230 standard valve components are manufactured of high quality and wear resistant plastic, and the

metering rod is manufactured of high quality stainless steel. Other materials are available for different

material compatibilities. Refer to the, “Optional Equipment” section, for a complete list of available

component materials.

AND ACCESS TO THE

WET CUP FOR FILLING
