Graco Python XL 5/8" [3/4] Configuration number matrix

Graco Python XL 3/4
3

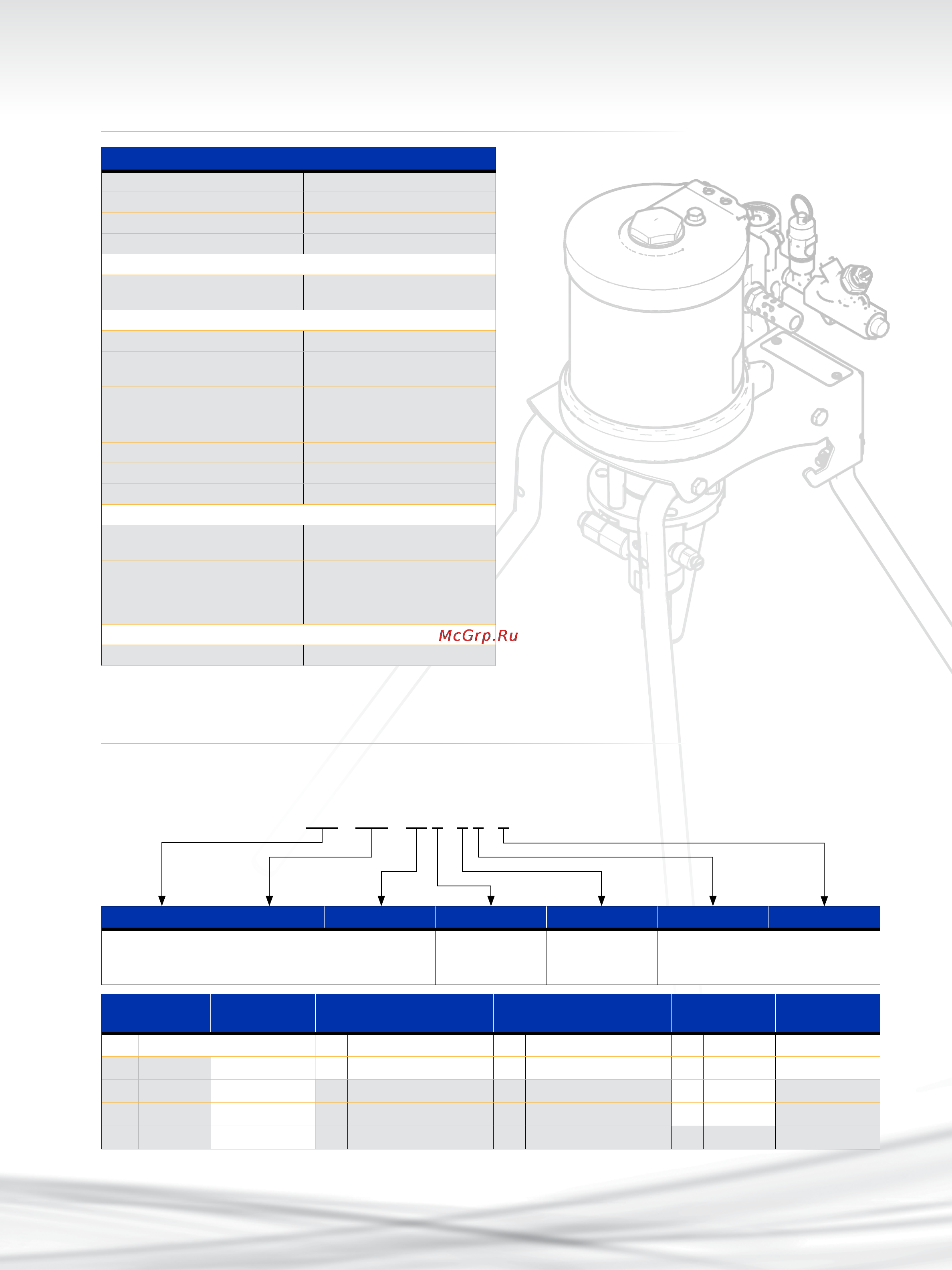

Technical Data
Configuration Number Matrix
Python XL Chemical Injection Pump
Minimum pneumatic inlet pressure 15 psi (0.82 bar)
Maximum fluid working pressure 12,000 psi (826.8 bar)
Maximum cycle rate 100 cpm
Environmental temperature range -40° to 176°F (-40° to 80°C)
Noise (dBa)
Maximum sound pressure
<70 dBa with included
muffler installed
Inlet/Outlet Sizes
Fluid inlet size 1/4 in. npt(f)
Fluid outlet size
(3/8", 1/2", 5/8", & 3/4" plungers only)
1/4 in. npt(f)
Fluid outlet size (1/4" plungers only) HiP HF4
Prime/bleed size
(3/8", 1/2", 5/8", & 3/4" plungers only)
10-32 UNF
Prime/bleed size (1/4" plungers only) 1/16 in. npt(f)
Pneumatic inlet size 1/4 in. npt(f)
Exhaust fitting size 3/8 in. npt(f)
Materials of Construction
Pump/Check Valve Seal Material
See Configuration Number Matrix
below for seal material.
Wetted Parts
See Configuration Number Matrix
below for plunger material.
All other materials are 316 stainless
steel unless otherwise noted.
Weight
All models 20.0 lbs (9.1 kg)
PCI 350 25 S X A 0
Pneumatic
Chemical
Injection
Pneumatic
Motor Size
Plunger Size Pressure Range Plunger Material Seal Material Qualifier
Check the identification plate (ID) for the 12-digit Configuration Number of your pump. Use the following matrix to define the
components of your pump. NOTE: Not all combinations are possible.
Sample Configuration Number: PCI-350-25S-XA-0
Key Points
• All pumps feature 1/4 in. npt(f) inlet connections.
• Kit B32240 can be used to convert an HF4 outlet connection to a 1/4 in. npt(f) for applications at or under 10,000 psi (689 bar).
Pneumatic
Motor Size
Plunger Size
(diameter)
Pressure
Range
Plunger
Material
Seal
Material Qualifier
350 3-1/2" 25 1/4" S 1/4" NPT(F) X Chromex A FKM 0 None
38 3/8" H HiP HF4 C Ceramic B FKMETP A ATEX
50 1/2" C HNBR
63 5/8" D FFKM
75 3/4"
