Graco Python 1/8
3

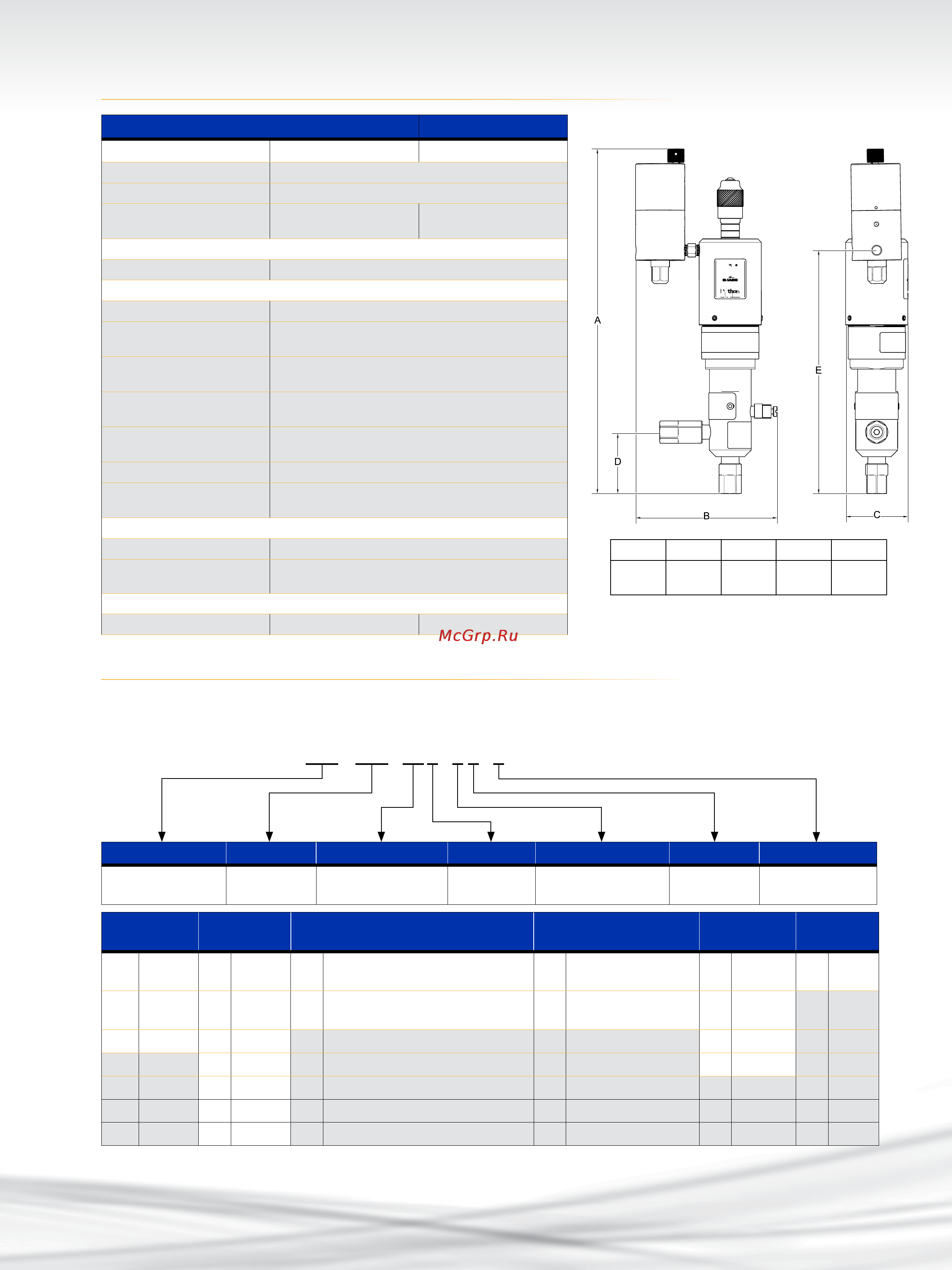

Technical Data
Configuration Number Matrix
Python Chemical Injection Pump
US Metric
Maximum air inlet pressure see charts on back page
Maximum fluid working pressure see charts on back page
Environmental temperature
range
-40°– 176°F -40°– 80°C
Noise (dBa)
Maximum sound pressure <70 dBa with included muffler installed
Inlet/Outlet Sizes
Fluid inlet size 1/4 in. npt(f) (1/4 npt(m) adapter included)
Fluid outlet size (1/4”, 3/8”, 1/2”,
5/8”, & 3/4” plungers only)
1/4 in. npt(f)
Fluid outlet size
(1/8” & 3/16” plungers only)
HiP HF4
Prime/bleed size (1/4”, 3/8”,
1/2”, 5/8”, & 3/4” plungers only)
10-32 UNF
Prime/bleed size
(1/8” & 3/16” plungers only)
1/16 in. npt(f)
Pneumatic inlet size 1/8 in. npt(f) (1/4 npt(f) adapter included)
Pneumatic outlet size
(exhaust recovery)
1/8 in. npt(f)
Materials of Construction
Pump/Check Valve Seal Material
See Configuration Number Matrix below for seal material.
Wetted Parts
See Configuration Number Matrix below for plunger material.
All other materials are 316 stainless steel unless otherwise noted.
Weight
All models 8-11 lbs. 3.6-4.9 kg
A B C D E
13.26 in.
(33.7 cm)
5.3 in.
(13.5 cm)
2.34 in.
(5.9 cm)
2.3 in.
(5.8 cm)
9.125 in.
(23.2 cm)
PCI 125 19 S X A A
Pneumatic Chemical
Injection
Air
Motor Size
Plunger Size Pressure
Range
Plunger Material Seal Material Qualifier
Check the identification plate (ID) for the 12-digit Configuration Number of your pump. Use the following matrix to define the
components of your pump. NOTE: Not all combinations are possible.
Sample Configuration Number: PCI-125-19S-XA-A
Key Points
• Standard pressure pumps feature 1/4 in. NPT(F) inlet and outlet connections.
• High pressure pumps feature 1/4 in. NPT(F) inlet and HiP HF4 outlet connections.
• B32240 can be used to convert HF4 outlet connection to 1/4 in. NPT(F) for applications 10,000 psi and under.
Air Motor Size Plunger Size
(diameter)
Pressure
Range
Plunger
Material
Seal
Material Qualifier
125 1-1/4" 13 1/4" S Standard Pressure
(1/4”, 3/8”, 1/2”, 5/8”, 3/4” plungers)
X Chromex Coated
17-4 PH Stainless
A FKM A ATEX
175 1-3/4" 19 3/8" H High Pressure (1/8” & 3/16” plungers) C Ceramic Coated
17-4 PH Stainless
B FKMETP
200 2" 25 1/2" C HNBR
38 5/8" D FFKM
50 3/4"
63 5/8”
75 3/4”
Dimensions:
