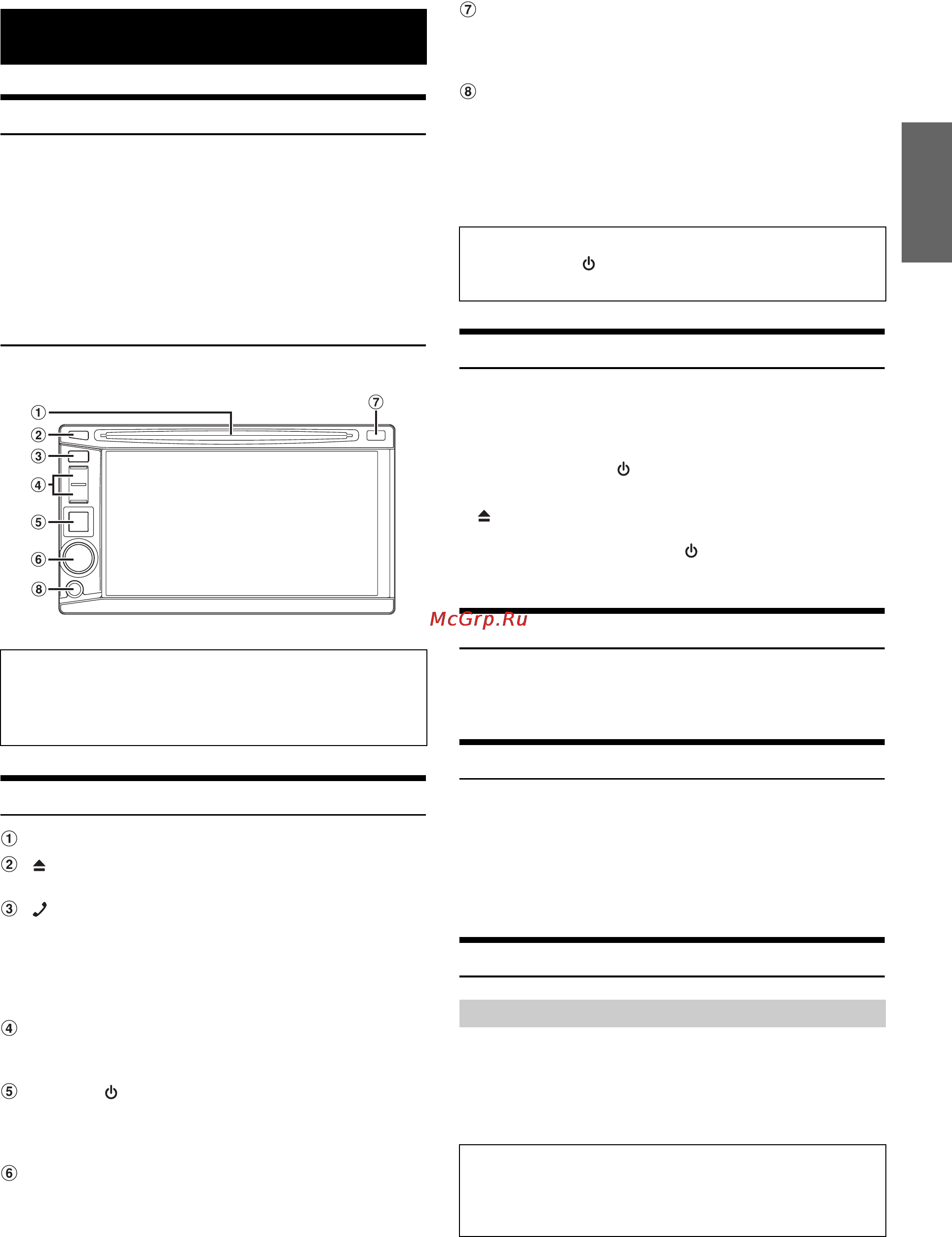

Alpine IVE-W530E [11/60] Getting started
![Alpine IVE-W530E [11/60] Getting started](/views2/1194088/page11/bgb.png)
9-EN
Accessory List
• Head unit .............................................................................1
• Power Cable ........................................................................1
• Mounting Sleeve ..................................................................1
• Bracket key..........................................................................2
• Flush Head Screw (M5 × 8).................................................6
• Screw (M5 × 8) ...................................................................8
• Front Frame .........................................................................1
• USB extension cable ..........................................................1
• Microphone .........................................................................1
• Owner’s Manual.............................................................1 set
Location of Controls
DISC Slot
button
Ejects a disc.
(Phone) button
• Press to display the Telephone Menu screen.
• Press and hold for at least 2 seconds to activate Voice
Dial mode.
(When BLUETOOTH IN is set to HFP or HFP+AUDIO
(page 32).)
Track tune button
Press to select the desired Radio preset station/track/file/
chapter.
SOURCE/ button
• Turns the power on.
•
Press and hold for at least 3 seconds to turn the power off.
• Recalls the SOURCE selection screen.
Rotary encoder/MUTE/AUDIO
• Adjust the volume by turning to the left or right.
• Press to activate/deactivate mute mode.
• Press and hold for at least 2 seconds to display the
Audio shortcut screen. The Bass level*
1
, Treble level*
1
,
and Subwoofer level*
2
can be adjusted in this mode.
Remote Sensor/Dimmer Sensor
• Point the optional remote control transmitter towards the
remote sensor within a range of 2 metres.
• Senses the brightness of the car interior.
Front AUX Input Terminal
Connects a portable music player, etc., to the system. For
details, see “Operating Auxiliary Devices (Optional)”
(page 39).
*
1
Adjustable only when Defeat is OFF.
*
2
Adjustable only when Subwoofer is ON.
Turning Power On or Off
Some of this unit’s functions cannot be performed while the vehicle is in
motion. Be sure to stop your vehicle in a safe location and apply the
parking brake, before attempting these operations.
1
Press SOURCE/ to turn on the unit.
• The unit can be turned on by pressing any button on the unit except
(Eject).
2
Press and hold SOURCE/ for at least 3 seconds to
turn off the unit.
Adjusting the Volume
Adjust the volume by turning the Rotary encoder.
Volume: 0 - 35
Lowering Volume Quickly
Activating this function will instantly lower the volume level by 20 dB.
Press Rotary encoder (MUTE).
The audio level decreases by about 20 dB.
Pressing Rotary encoder (MUTE) again brings the audio back to
its previous level.
How to view the Display
• To protect the display, touch the onscreen button with the tip of your
finger.
• If you touch a button and there is no reaction, remove your finger
from the display once, and try again.
• If you touch two buttons at the same time, a malfunction may occur.
Getting Started
Connectable to Remote Control Interface Box
You can operate this unit from the vehicle’s control unit when
an Alpine Remote Control Interface Box (optional) is
connected. For details, contact your Alpine dealer.
• The buttons on the face of this unit are shown in bold
(e.g. SOURCE/ ). The onscreen buttons that appear in the
display are shown in bold enclosed by [ ] (e.g.[BAND]).
TOUCH PANEL operation
Onscreen buttons are expressed as follows in this Owner’s
Manual.
• Onscree
n buttons are shown in bold, enclosed in [ ] (e.g.
[BAND]).
(IVE-W530EBT/IVE-W530ABT only)
