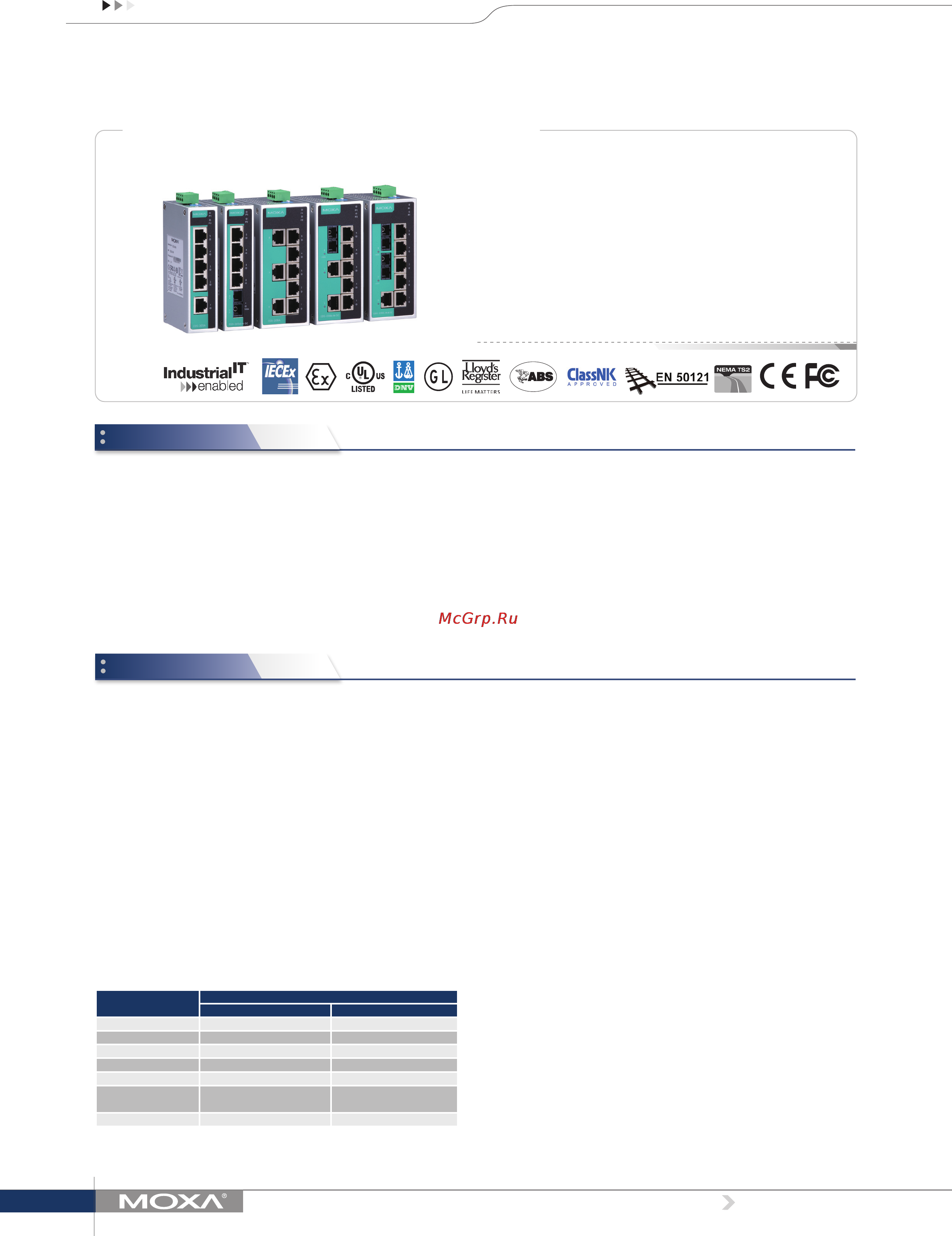

Industrial Ethernet Solutions
1
www.moxa.com
The EDS-205A/208A series are 5 and 8-port industrial Ethernet
switches that support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/
half-duplex, MDI/MDI-X auto-sensing. The EDS-205A/208A switches
provide 12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC redundant power
inputs that can be connected simultaneously to live AC/DC power
sources. These switches have been designed for harsh industrial
environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside,
highway, or mobile applications(EN 50121-4/NEMA TS2/e-Mark), or
hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with
FCC, UL, and CE standards.
Introduction
EDS-205A/208A Series
Specifications
5 and 8-port unmanaged Ethernet switches
The EDS-205A/208A switches are available with a standard operating
temperature range from -10 to 60°C, or with a wide operating
temperature range from -40 to 75°C. All models are subjected to
a 100% burn-in test to ensure that they fulfill the special needs of
industrial automation control applications. In addition, the
EDS-205A/208A switches have DIP switches for enabling or disabling
broadcast storm protection, providing another level of flexibility for
industrial applications.
A
P
P
R
O
V
E
D
P
R
O
D
U
C
T
› 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-
mode, SC or ST connector)
› Redundant dual 12/24/48 VDC, 18 to 30 VAC power inputs
› IP30 aluminum housing
› Rugged hardware design well suited for hazardous locations
(Class 1 Div. 2/ATEX Zone 2), Transportation (NEMA TS2/ EN
50121-4/e-Mark), and maritime environments (DNV/GL/LR/ABS/
NK)
› -40 to 75°C operating temperature range (T models)
Technology
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control
Processing Type: Store and Forward
Flow Control: IEEE 802.3x flow control, back pressure flow control
Switch Properties
MAC Table Size: 1 K
Packet Buffer Size: 512 kbit
Interface
RJ45 Ports: 10/100BaseT(X) auto negotiation speed, Full/Half duplex
mode, and auto MDI/MDI-X connection
Fiber Ports: 100BaseFX ports (SC/ST connector, multi-mode,
single-mode)
DIP Switches: Enable/Disable broadcast storm protection
LED Indicators: Power, 10/100M (TP port), 100M (fiber port)
Optical Fiber
100BaseFX
Multi-mode Single-mode
Wavelength 1300 nm 1310 nm
Max. TX -10 dBm 0 dBm
Min. TX -20 dBm -5 dBm
RX Sensitivity -32 dBm -34 dBm
Link Budget 12 dB 29 dB
Typical Distance
5 km
a
4 km
b
40 km
c
Saturation -6 dBm -3 dBm
a. 50/125 μm, 800 MHz*km fiber optic cable
b. 62.5/125 μm, 500 MHz*km fiber optic cable
c. 9/125 μm single-mode fiber optic cable
Power Requirements
Input Voltage: 12/24/48 VDC (9.6 to 60 VDC), 18 to 30 VAC (47 to 63
Hz), redundant dual inputs
Input Current:
EDS-205A: 0.1 A @ 24 V
EDS-205A-M/S: 0.11 A @ 24 V
EDS-208A: 0.13 A @ 24 V
EDS-208A-M: 0.17 A @ 24 V
EDS-208A-MM/SS: 0.22 A @ 24 V
Overload Current Protection: 1.1 A
Connection: 1 removable 4-contact terminal block
Reverse Polarity Protection: Present
Physical Characteristics
Housing: Aluminum, IP30 protection
Dimensions:
EDS-205A Series: 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
EDS-208A Series: 50 x 115 x 70 mm (1.96 x 4.52 x 2.76 in)
Weight:
EDS-205A Series: 175 g
EDS-208A Series: 275 g
Installation: DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature:
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
