Moxa Managed Ethernet Switches Getting Started
2-7
3. After logging in, you may need to wait a few moments for the web console to appear. Use the folders in the
left navigation panel to navigate between different pages of configuration options.

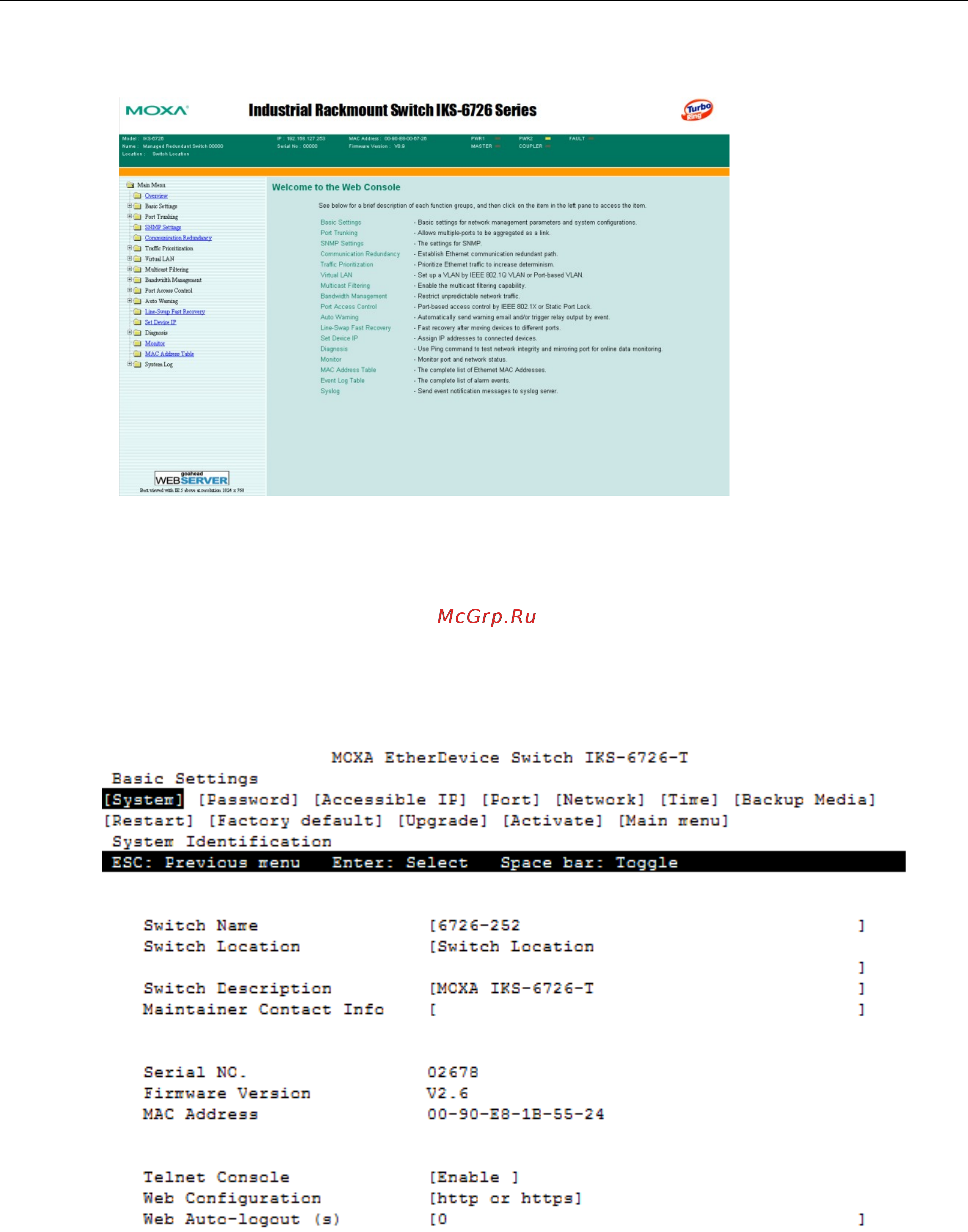

Disabling Telnet and Browser Access
If you are connecting the Moxa switch to a public network but do not intend to manage it over the network, we
suggest disabling both the Telnet and web consoles. This is done from the serial console by navigating to
System Identification under Basic Settings. Disable or enable the Telnet Console and Web
Configuration as shown below:
