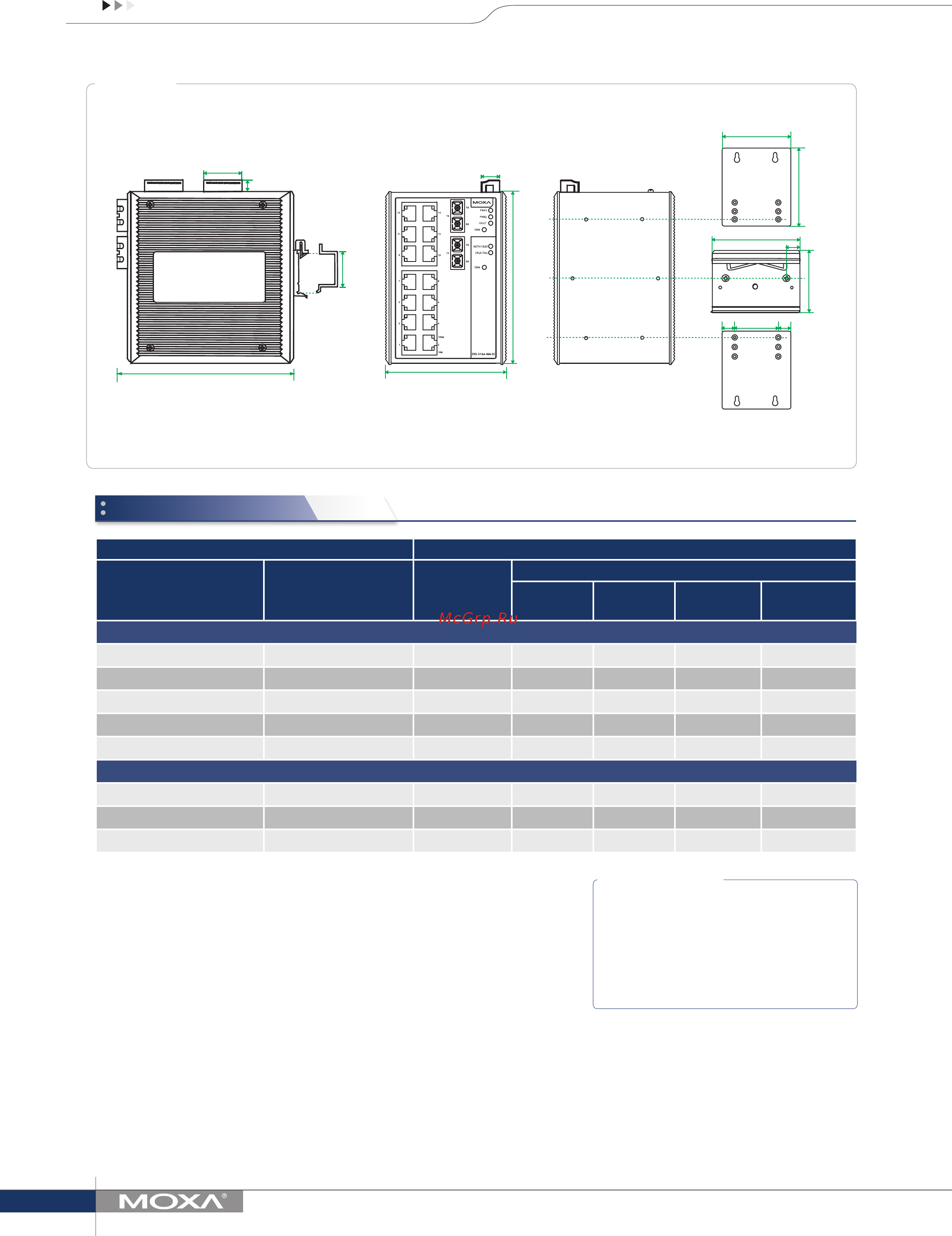

Moxa EDS-508A-T [3/3] Ordering information
![Moxa EDS-508A-T [3/3] Ordering information](/views2/1195559/page3/bg3.png)
Industrial Ethernet Solutions
3
© Moxa Inc. All rights reserved. Updated May. 6, 2016. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.
Available Models Port Interface
Standard Temperature
(0 to 60˚C)
Wide Temperature
(-40 to 75˚C)
10/100BaseT(X)
100BaseFX
Multi-Mode,
SC Connector
Multi-Mode,
ST Connector
Single-Mode,
SC Connector
Single-Mode, SC
Connector, 80 km
EDS-505A/508A Series
EDS-505A/508A EDS-505A/508A-T
5/8 – – – –
EDS-505A/508A-MM-SC EDS-505A/508A-MM-SC-T
3/6 2 – – –
EDS-505A/508A-MM-ST EDS-505A/508A-MM-ST-T
3/6 – 2 – –
EDS-505A/508A-SS-SC EDS-505A/508A-SS-SC-T
3/6 – – 2 –
EDS-508A-SS-SC-80
– 6 – – – 2
EDS-516A Series
EDS-516A EDS-516A-T
16 – – – –
EDS-516A-MM-SC EDS-516A-MM-SC-T
14 2 – – –
EDS-516A-MM-ST EDS-516A-MM-ST-T
14 – 2 – –
EDS-516A Series
Side View Front View Rear View DIN-Rail/Panel-
Mounting Kit
30.0
(1.2)
15.0
(0.6)
7.5
(0.3)
7.8
(0.3)
7.8
(0.3)
46.0 (1.8)
70.0 (2.8)
30.5 (1.2)
66.8 (2.6)
48.3 (1.9)
142.7 (5.6) 94.0 (3.7)
135.0 (5.3)
35.0 (1.4)
9.0 (0.4)
Ordering Information
Dimensions
Unit: mm (inch)
Optional Accessories (can be purchased separately)
MXview: Moxa industrial network management software with 50, 100, 250, 500, 1000, or 2000
nodes
EDS-SNMP OPC Server Pro: OPC server software that works with all SNMP devices
ABC-01: Configuration backup and restoration tool for managed Ethernet switches, 0 to 60°C
operating temperature
DR-4524/75-24/120-24: 45/75/120 W DIN-rail 24 VDC power supplies
MDR-40-24/60-24: 40/60 W DIN-rail 24 VDC power supplies, -20 to 70°C operating temperature
RK-4U: 4U-high 19-inch rack-mounting kit
WK-46: Wall-mounting kit, 2 plates with 8 screws
Package Checklist
• EDS-505A or EDS-508A or EDS-516A switch
• Serial Cable: CN20070
• Protective caps for unused ports
• Documentation and software CD
• Hardware installation guide (printed)
• Warranty card
Содержание
- 8 and 16 port managed ethernet switches 1
- Eds 505a 508a 516a series 1
- Introduction 1
- Specifications 1
- Dimensions 2
- Eds 505a 508a series 2
- Environmental limits 2
- Industrial ethernet solutions 2
- Mtbf mean time between failures 2
- Optical fiber 2
- Physical characteristics 2
- Power requirements 2
- Standards and certifications 2
- Warranty 2
- Dimensions 3
- Eds 505a 508a eds 505a 508a t 3
- Eds 505a 508a mm sc eds 505a 508a mm sc t 3
- Eds 505a 508a mm st eds 505a 508a mm st t 3
- Eds 505a 508a series 3
- Eds 505a 508a ss sc eds 505a 508a ss sc t 3
- Eds 505a or eds 508a or eds 516a switch serial cable cn20070 protective caps for unused ports documentation and software cd hardware installation guide printed warranty card 3
- Eds 508a ss sc 80 3
- Eds 516a eds 516a t 3
- Eds 516a mm sc eds 516a mm sc t 3
- Eds 516a mm st eds 516a mm st t 3
- Eds 516a series 3
- Industrial ethernet solutions 3
- Mounting kit 3
- Mxview moxa industrial network management software with 50 100 250 500 1000 or 2000 nodes eds snmp opc server pro opc server software that works with all snmp devices abc 01 configuration backup and restoration tool for managed ethernet switches 0 to 60 c operating temperature dr 4524 75 24 120 24 45 75 120 w din rail 24 vdc power supplies mdr 40 24 60 24 40 60 w din rail 24 vdc power supplies 20 to 70 c operating temperature rk 4u 4u high 19 inch rack mounting kit wk 46 wall mounting kit 2 plates with 8 screws 3
- Optional accessories can be purchased separately 3
- Ordering information 3
- Package checklist 3
- Side view front view rear view din rail panel 3
