- 7 -

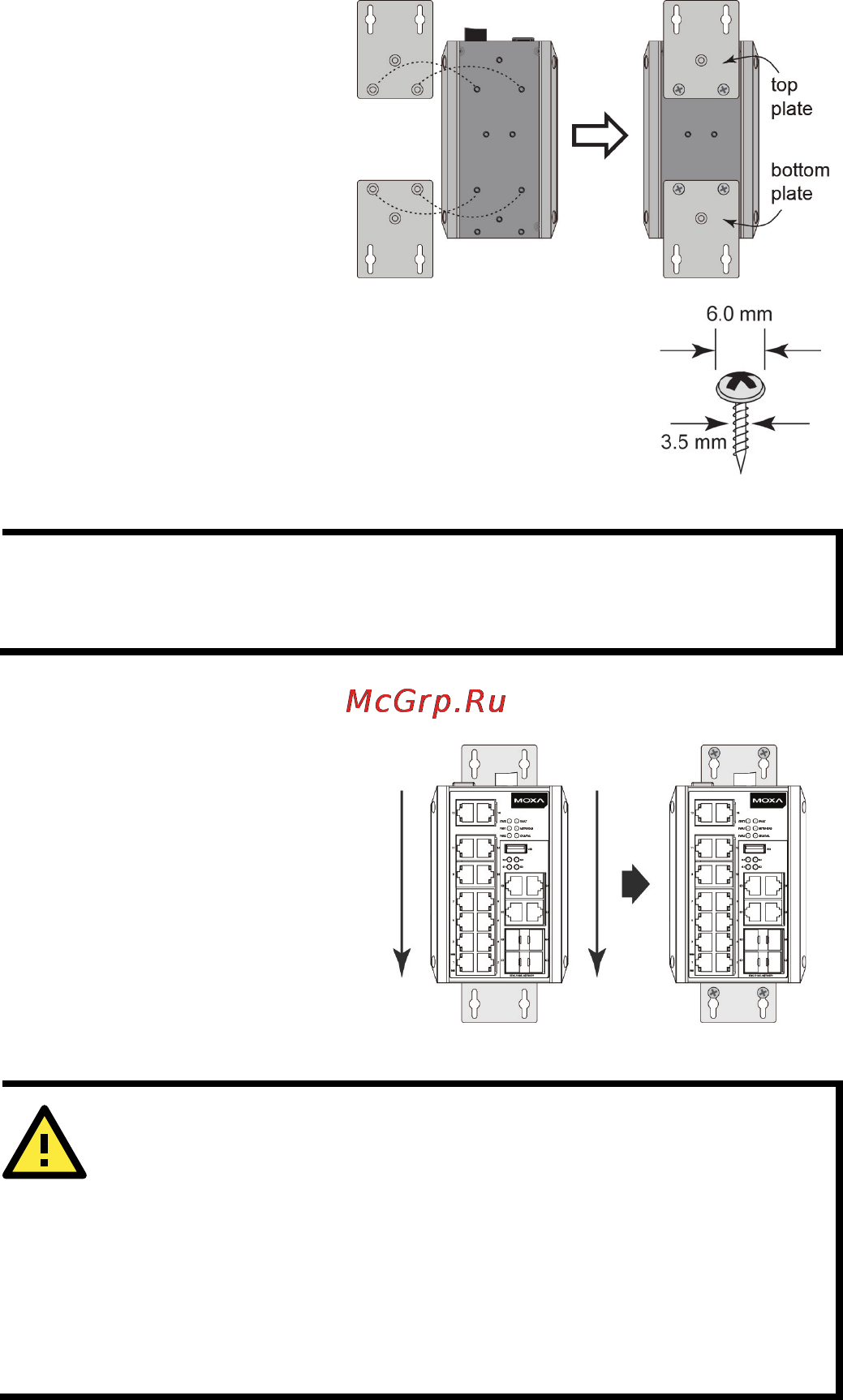

Wall Mounting (Optional)
For some applications, you will find it convenient to mount the Moxa
EDS-518E on a wall, as shown in the following illustrations:
STEP 1: Remove the
aluminum DIN
-rail
attachment plate from the
rear panel
of the EDS-518E,
and then attach the wall
mount plates
with M3 screws
,
as shown
in the figure at the
right.
STEP 2:
Mounting the EDS-518E series on a wall
requires 4 screws. Use the
EDS-518E, with wall mount
plates attached, as a guide to mark the correct locations
of the 4 screws. The heads of the screws should be less
than 6.0 mm in diameter, and the shafts should be less
than 3.5
mm in diameter, as shown in the figure on at
the
right.
NOTE
Before tightening the screws into the wall, make sure the screw
head and shank size are suitable by inserting the screw through
one of the keyhole-shaped apertures of the wall mount plates.
Do not screw the screws in all the way—leave about 2 mm to allow room
for sliding the wall mount panel between the wall and the screws.
STEP 3:
Once the screws are
fixed
to
the wall, insert the four
screw heads through the wide
parts of the keyhole
-shaped
apertures, and then slide
the
EDS
-518E downwards, as
indicated
in the figure at the
right. Tighten the four screws for
g
reater stability.
WARNING
1. EXPLOSION HAZARD—
Do not disconnect equipment unless
power has been removed or the area is known to be
non-hazardous.
2. EXPLOSION HAZARD—
Substitution of any components may
impair suitability for Class I, Division 2.
3. EXPOSURE TO SOME CHEMICALS MAY DEGRADE THE
SEALING PROPERTIES OF MATERIALS USED IN THE RELAY.
