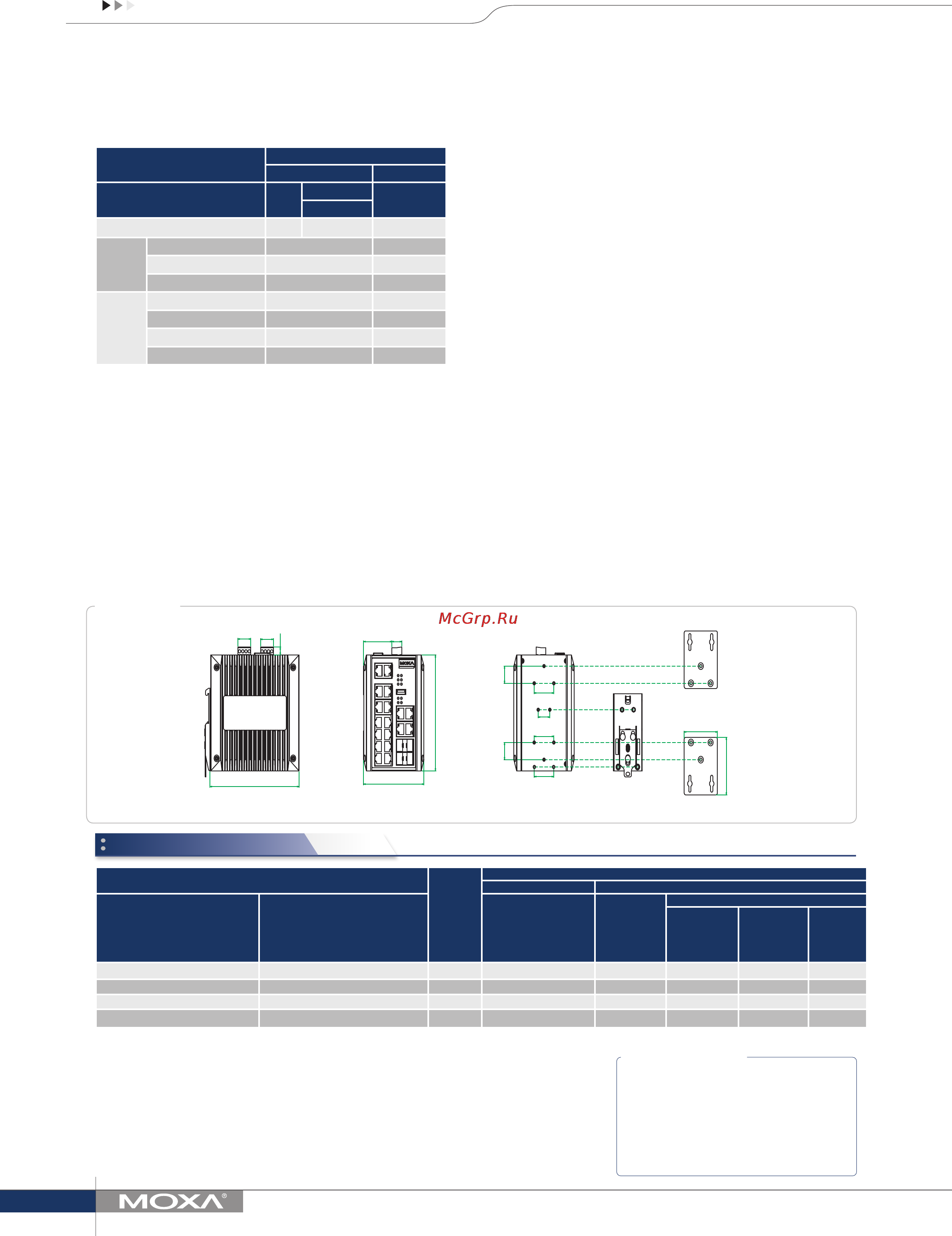

Industrial Ethernet Solutions
2
© Moxa Inc. All rights reserved. Updated May. 6, 2016. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.
Digital Inputs: 1 input with the same ground, but electrically isolated from
the electronics.
•+13to+30Vforstate“1”
•-30to+3Vforstate“0”
•Max.inputcurrent:8mA
Button: Reset button
Optical Fiber
100BaseFX
Multi-Mode Single-Mode
Fiber Cable Type OM1
50/125 μm
G.652
800 MHz*km
Typical Distance
4 km 5 km 40 km
Wave-
length
Typical (nm) 1300 1310
TX Range (nm) 1260 to 1360 1280 to 1340
RX Range (nm) 1100 to 1600 1100 to 1600
Optical
Power
TX Range (dBm) -10 to -20 0 to -5
RX Range (dBm) -3 to -32 -3 to -34
Link Budget (dB) 12 29
Dispersion Penalty (dB) 3 1
Note:Whenconnectingasingle-modebertransceiver,werecommend
using an attenuator to prevent damage caused by excessive optical power.
Note:Computethe“typicaldistance”ofaspecicbertransceiveras
follows:Linkbudget(dB)>dispersionpenalty(dB)+totallinkloss(dB).
Power Requirements
Input Voltage: 12/24/48/-48 VDC, redundant dual inputs
Input Current:
EDS-518E-4GTXSFP:0.75A@24V
EDS-518E-MM-ST/SC-4GTXSFP:0.61A@24V
EDS-518E-SS-SC-4GTXSFP:0.61A@24V
Overload Current Protection: Present
Connection: 2 removable 4-contact terminal blocks
Reverse Polarity Protection: Present
Physical Characteristics
Housing: Metal
IP Rating: IP30 protection
Dimensions: 94 x 135 x 137 mm (3.7 x 5.31 x 5.39 in)
Weight: 1,518 g (3.35 lb)
Installation: DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature:
StandardModels:-10to60°C(14to140°F)
WideTemp.Models:-40to75°C(-40to167°F)
Storage Temperature:-40to85°C(-40to185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: UL 508
Hazardous Location: UL/cUL Class 1 Division 2 Groups A/B/C/D,
ATEX Zone 2 Ex nA nC IIC
EMC: EN 61000-6-2/6-4
EMI: CISPR 22, FCC Part 15B Class A
EMS:
IEC61000-4-2ESD:Contact:8kV;Air:15kV
IEC61000-4-3RS:80MHzto1GHz:10V/m
IEC61000-4-4EFT:Power:4kV;Signal:4kV
IEC61000-4-5Surge:Power:4kV;Signal:4kV
IEC61000-4-6CS:Signal:10V
IEC 61000-4-8
Electrical Substations: IEC 61850-3, IEEE 1613
Traffic Control: NEMA TS2
Rail Traffic: EN 50121-4
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Note:PleasecheckMoxa’swebsiteforthemostup-to-datecerticationstatus.
MTBF (mean time between failures)
Time: 723,953 hrs
Standard: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
Optional Accessories (can be purchased separately)
MXview: Moxa industrial network management software with 50, 100, 250, 500, 1000, or 2000 nodes
EDS-SNMP OPC Server Pro: OPC server software that works with all SNMP devices
ABC-02-USB-T: Configuration backup and restoration tool for managed Ethernet switches, -40 to
75°Coperatingtemperature
DR-4524/75-24/120-24: 45/75/120 W DIN-rail 24 VDC power supplies
MDR-40-24/60-24:40/60WDIN-rail24VDCpowersupplies,-20to70°Coperatingtemperature
WK-51-01: Wall-mounting kit, 2 plates with 6 screws
RK-4U: 4U-high 19-inch rack-mounting kit
Package Checklist
• EDS-518E switch
• USBCable:CBL-USBA/B-100
• Protective caps for unused ports
• Documentation and software CD
• Hardware installation guide (printed)
• Warranty card
Available Models
Total No.
of Ports
Port Interface
Gigabit Combo Port Fast Ethernet
Standard Temperature
(-10 to 60˚C)
Wide Temperature
(-40 to 75˚C)
10/100/1000BaseT(X)
or
100/1000BaseSFP*
10/
100BaseT(X)
100BaseFX
Multi-Mode,
SC
Connector
Multi-Mode,
ST
Connector
Single-
Mode, SC
Connector
EDS-518E-4GTXSFP EDS-518E-4GTXSFP-T
18 4 14 – – –
EDS-518E-MM-SC-4GTXSFP EDS-518E-MM-SC-4GTXSFP-T
18 4 12 2 – –
EDS-518E-MM-ST-4GTXSFP EDS-518E-MM-ST-4GTXSFP-T
18 4 12 – 2 –
EDS-518E-SS-SC-4GTXSFP EDS-518E-SS-SC-4GTXSFP-T
18 4 12 – – 2
*The EDS-518E series supports 4 1000BaseSFP slots. See the SFP section for Gigabit Ethernet SFP module product information.
Ordering Information
Side View Front View Rear View DIN-Rail/Panel-Mounting Kit
Dimensions
Unit:mm(inch)
67 (2.6)
51.6 (2)
30.5 (1.2)
20 (0.8)
20
(0.8)
20
(0.8)
20 (0.8)
30 (1.2)
18 (0.7)
30.5 (1.2)
93.8 (3.7)
135 (5.3)
44.1
(1.7)
15
(0.6)
9.25
(0.4)
138.2 (5.4)
