www.moxa.com
info@moxa.com
Industrial Ethernet Solutions

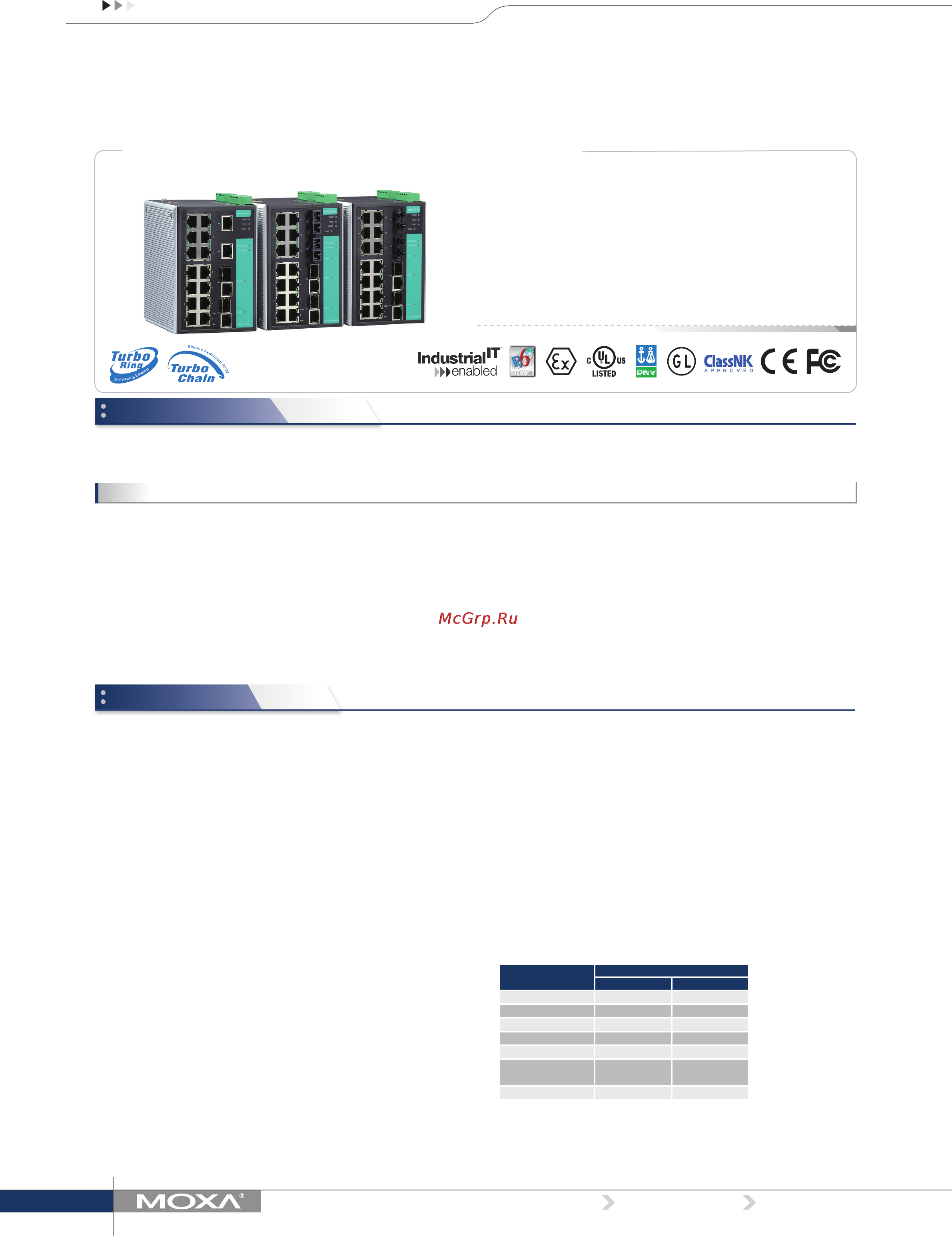

EDS-518A Series
The EDS-518A is a standalone 18-port managed Ethernet switch that
provides 2 combo Gigabit ports with built-in RJ45 or SFP slots for
Gigabit fiber optic communication. The Ethernet redundant Turbo
• Command Line Interface (CLI) for quickly configuring major
managed functions
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• Software-based IEEE 1588 PTPv2 (Precision Time Protocol) for
precise time synchronization of networks
• DHCP Option 82 for IP address assignment with different policies
• Support EtherNet/IP and Modbus/TCP protocols for device
management and monitoring
• Compatible with PROFINET protocol for transparent data
transmission
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250
switches), RSTP/STP, and MSTP for network redundancy
16+2G-port Gigabit managed Ethernet switches
Ring and Turbo Chain (recovery time < 20 ms) increases the reliability
and speed of your network backbone. The EDS-518A also supports
advanced management and security features.
• IGMP snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network
planning
• QoS (IEEE 802.1p) and TOS/DiffServ to increase determinism
• Port Trunking for optimum bandwidth utilization
• TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance
network security
• SNMPv1/v2c/v3 for different levels of network management
• RMON for efficient network monitoring and proactive capability
• Bandwidth management prevents unpredictable network status
• ABC-01 (Automatic Backup Configurator) for system configuration
backup
• Automatic warning by exception through e-mail, relay output
Features and Benefits
Introduction
Specifications
› 2 Gigabit plus 16 Fast Ethernet ports for copper and fiber
› Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250
switches), RSTP/STP, and MSTP for network redundancy
› TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance
network security
› Easy network management by web browser, CLI, Telnet/serial
console, Windows utility, and ABC-01
Technology
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
Protocols: IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/
Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS,
Telnet, Syslog, DHCP Option 66/67/82, SSH, SNMP Inform, EtherNet/
IP, Modbus/TCP, LLDP, IEEE 1588 PTPv2, IPv6, NTP Server/Client
MIB: MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB,
Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control: IEEE 802.3x flow control, back pressure flow control
Switch Properties
Priority Queues: 4
Max. Number of Available VLANs: 64
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 8 K
Packet Buffer Size: 2 Mbit
Interface
Fiber Ports: 100BaseFX (SC/ST connector) and 1000BaseSFP slot
RJ45 Ports: 10/100BaseT(X) or 10/100/1000BaseT(X) auto negotiation
speed
Console Port: RS-232 (RJ45 connector)
LED Indicators: PWR1, PWR2, FAULT, 10/100M (TP port), 100M
(fiber port), MSTR/HEAD, CPLR/TAIL
Alarm Contact: 2 relay outputs with current carrying capacity of 1 A @
24 VDC
Digital Inputs: 2 inputs with the same ground, but electrically isolated
from the electronics.
•+13to+30Vforstate“1”
•-30to+3Vforstate“0”
•Max.inputcurrent:8mA
Optical Fiber
100BaseFX
Multi-mode Single-mode
Wavelength 1300 nm 1310 nm
Max. TX -10 dBm 0 dBm
Min. TX -20 dBm -5 dBm
RX Sensitivity -32 dBm -34 dBm
Link Budget 12 dB 29 dB
Typical Distance
5 km
a
4 km
b
40 km
c
Saturation -6 dBm -3 dBm
a. 50/125 μm, 800 MHz*km fiber optic cable
b. 62.5/125 μm, 500 MHz*km fiber optic cable
c. 9/125 μm single-mode fiber optic cable
d. 9/125 μm single-mode fiber optic cable (80 km)
