Industrial Ethernet Solutions
2
www.moxa.com
EDS-G509 Series
Ordering Information

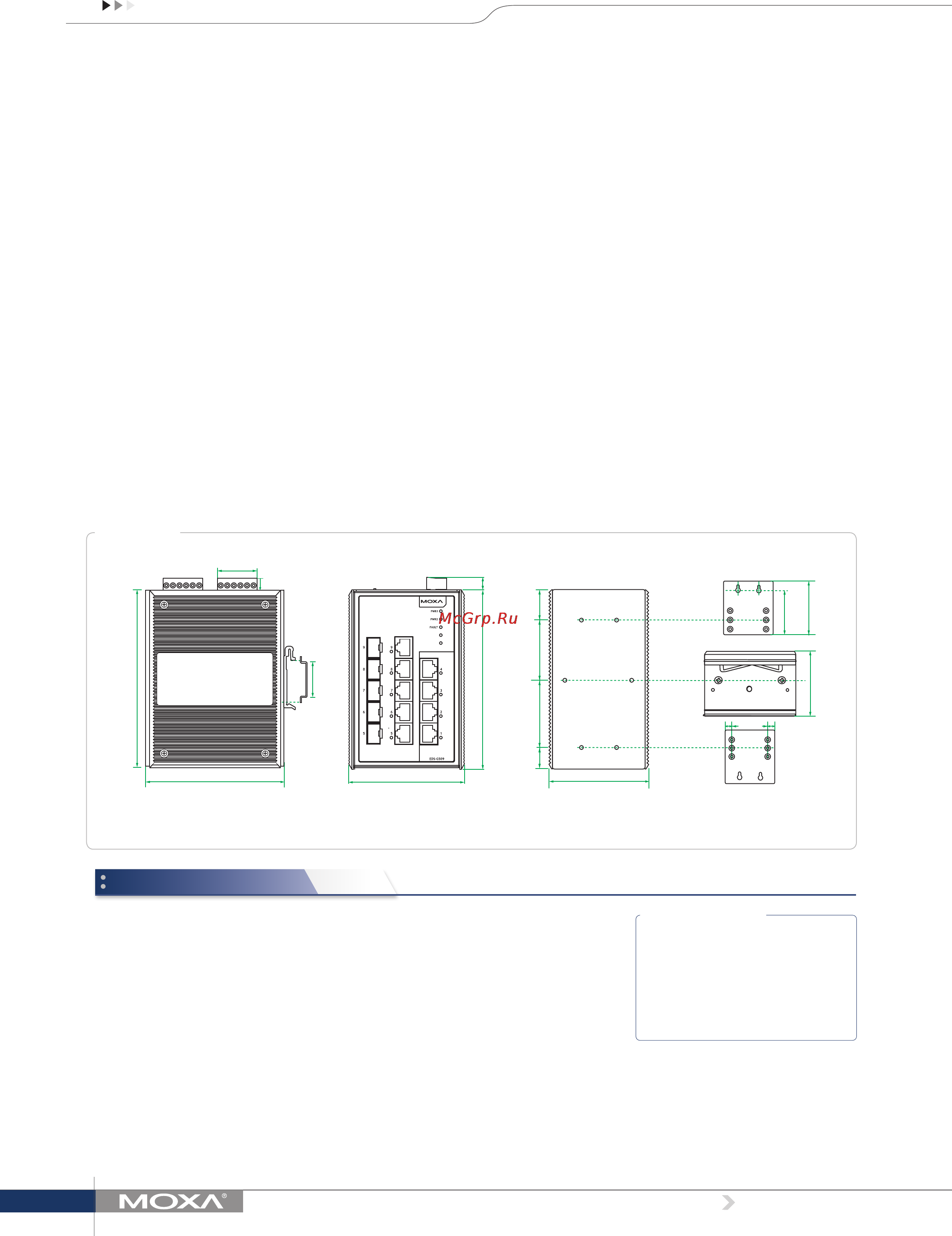

Side View Front View Rear View DIN-Rail/Panel-Mounting Kit
30.0 (1.2)
107.0 (4.2)
87.1 (3.4)
87.1 (3.4)
7.8 (0.3)7.8 (0.3)
9.0 (0.4)
9.5 (0.4)
135.0 (5.3)
135.0 (5.3)
42.2 (1.7) 43.9 (1.8)
35.0 (1.4)
24.3
(1.0)
57.1 (2.2)
66.8 (2.6) 48.3 (1.9)
24.6
(1.0)
30.5 (1.2)
MSTR/HEAD
CPLR/TAIL
Dimensions
Unit: mm (inch)
Available Models
EDS-G509: Industrial full Gigabit managed Ethernet switch with 4 10/100/1000BaseT(X) ports, and 5
10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, 0 to 60°C operating temperature
EDS-G509-T: Industrial full Gigabit managed Ethernet switch with 4 10/100/1000BaseT(X) ports, and 5
10/100/1000BaseT(X) or 100/1000BaseSFP slot combo ports, -40 to 75°C operating temperature
Note: The EDS-G509 series switches support 5 100/1000BaseSFP slots. See the SFP-1G and SFP-1FE datasheets for
Gigabit/Fast Ethernet SFP module product information.
Optional Accessories (can be purchased separately)
MXview: Moxa industrial network management software with 50, 100, 250, 500, 1000, or 2000 nodes
EDS-SNMP OPC Server Pro: OPC server software that works with all SNMP devices
ABC-01: Configuration backup and restoration tool for managed Ethernet switches, 0 to 60°C operating
temperature
DR-4524/75-24/120-24: 45/75/120 W DIN-rail 24 VDC power supplies
MDR-40-24/60-24: 40/60 W DIN-rail 24 VDC power supplies, -20 to 70°C operating temperature
RK-4U: 4U-high 19-inch rack-mounting kit
WK-46: Wall-mounting kit, 2 plates with 8 screws
Package Checklist
• EDS-G509 switch
• Serial Cable: CN20070
• Protective caps for unused ports
• Documentation and software CD
• Hardware installation guide (printed)
• Warranty card
MAC Table Size: 8 K
Packet Buffer Size: 1 Mbit
Interface
RJ45 Ports: 10/100/1000BaseT(X) auto negotiation speed
Fiber Ports: 100/1000BaseSFP slot
Console Port: RS-232 (RJ45 connector)
DIP Switches: Turbo Ring, Master, Coupler, Reserve
Alarm Contact: 2 relay outputs with current carrying capacity of 1 A @
24 VDC
Digital Inputs: 2 inputs with the same ground, but electrically isolated
from the electronics.
•+13to+30Vforstate“1”
•-30to+3Vforstate“0”
•Max.inputcurrent:8mA
Power Requirements
Input Voltage: 12/24/48 VDC, redundant dual inputs
Operating Voltage: 9.6 to 69 VDC
Input Current: 0.69 A @ 24 VDC
Overload Current Protection: Present
Connection: 2 removable 6-contact terminal blocks
Reverse Polarity Protection: Present
Physical Characteristics
Housing: Metal
IP Rating: IP30 protection
Dimensions: 87.1 × 135 × 107 mm (3.43 × 5.31 × 4.21 in)
Weight: 1510 g (3.33 lb)
Installation: DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature:
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: UL 508, EN 60950-1
EMC: EN 55022/24
EMI: CISPR 22, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: Signal: 10 V
IEC 61000-4-8
Rail Traffic: EN 50121-4
Marine: DNV, GL, LR, ABS, NK
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Note: Please check Moxa’s website for the most up-to-date certification status.
MTBF (mean time between failures)
Time: 598,659 hrs
Standard: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
