Industry-specific Ethernet Switches
2
www.moxa.com

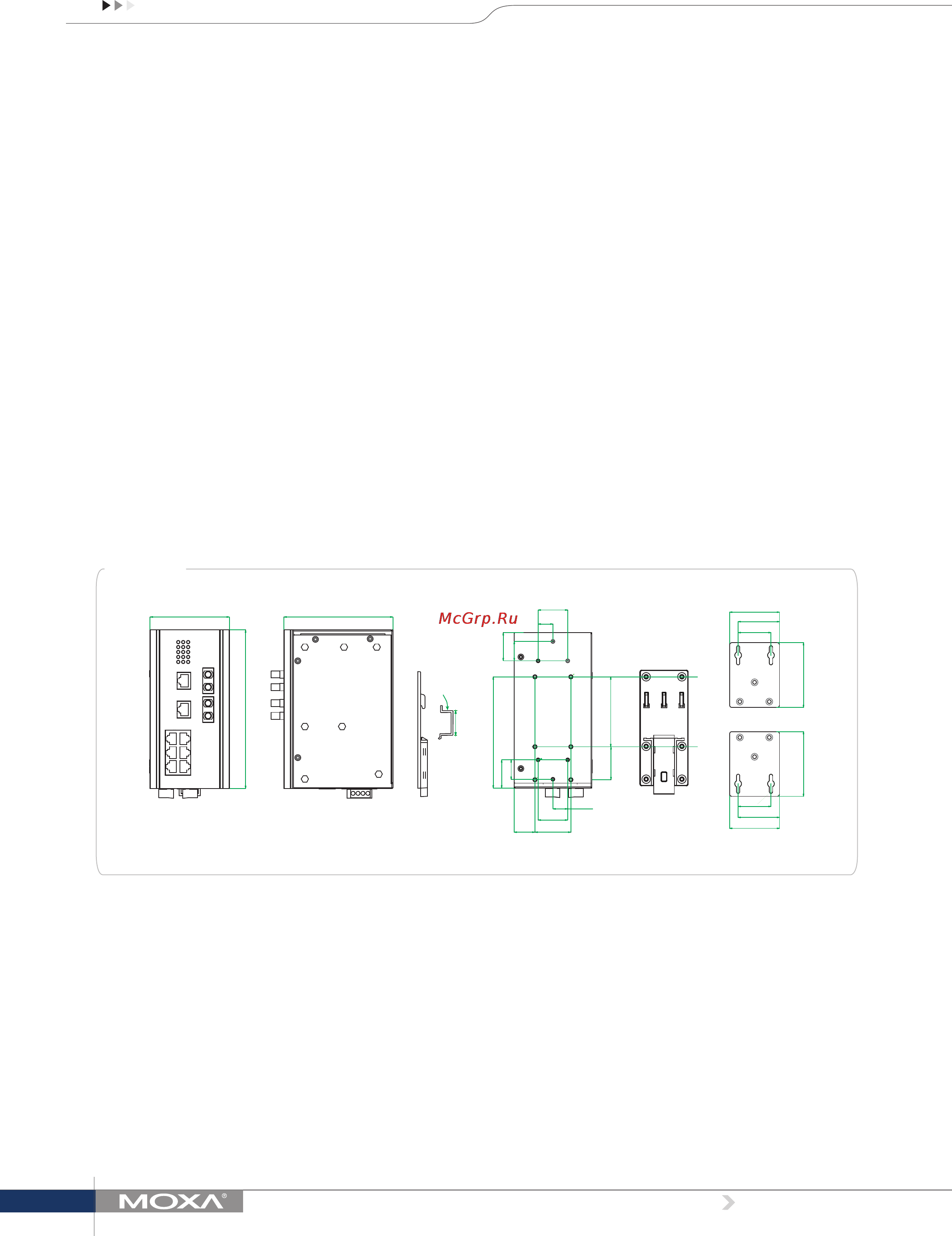

Dimensions
PT-510
Unit: mm (inch)
Front View Side View DIN-Rail Kit DIN-Rail Mounting KitRear View
DlN-Rail
35.00
51.6
42.8
34
67
67
51.6
42.8
34
80 110
160
30.5
15.25
20
29
30.5
15.25
3721.5
20
29
114.5
72
34
MIB: MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge
MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control: IEEE 802.3x flow control, back pressure flow control
Switch Properties
Priority Queues: 4
Max. Number of Available VLANs: 64
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table Size: 8 K
Packet Buffer Size: 1 Mbit
Interface
RJ45 Ports: 10/100BaseT(X) auto negotiation speed, F/H duplex mode,
and auto MDI/MDI-X connection
Fiber Ports: 100BaseFX ports (SC/ST/LC connector)
Console Port: RS-232 (RJ45)
LED Indicators: PWR1, PWR2 (DC models only), FAULT, MSTR/HEAD,
CPLR/TAIL
Alarm Contact: 1 relay output with current carrying capacity of 1 A @
24 VDC
Power Requirements
Input Voltage:
•24VDC(18to36V)
•48VDC(36to72V)
•110/220VDC/VAC(88to300VDC,85to264VAC)
Input Current: (all ports are equipped with fiber)
•Max.0.425A@24VDC
•Max.0.19A@48VDC
•Max.0.111/0.056A@110/220VDC
•Max.0.254/0.16A@110/220VAC
Overload Current Protection: Present
Connection: 5-pin terminal blocks
Reverse Polarity Protection: Present
Physical Characteristics
Housing: IP40 protection
Dimensions: 80 x 160 x 110 mm (3.15 x 6.30 x 4.33 in)
Weight: 1210 g
Installation: DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature: -40 to 85°C (-40 to 185°F), cold start
requires min. of 100 VAC at -40°C
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: UL 508
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
Power Automation: IEC 61850-3, IEEE 1613
Note: Please check Moxa’s website for the most up-to-date certification status.
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
