PT-7528 Series Quick Settings
3-3

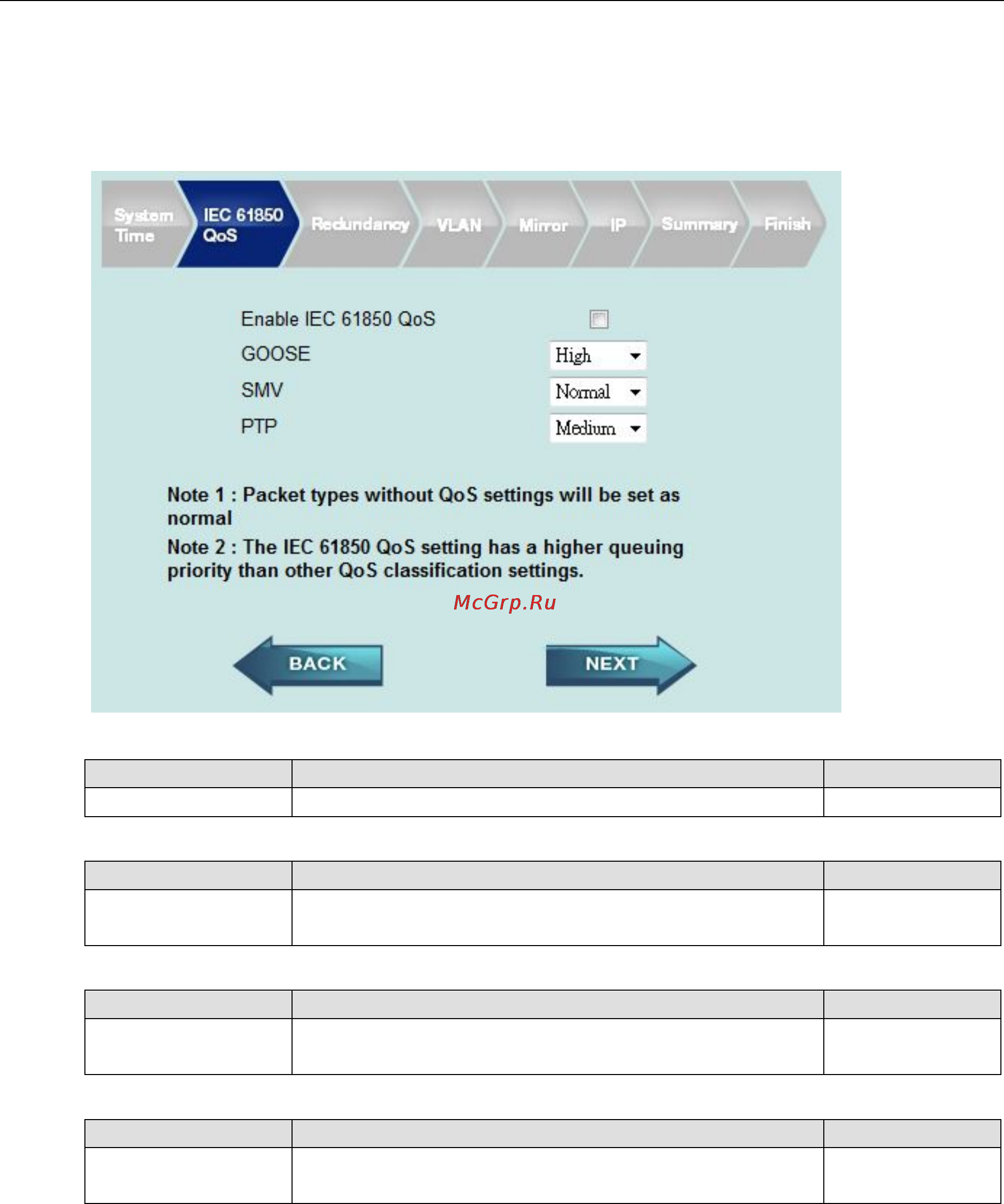

QoS
The Moxa PowerTrans Series switch provides IEC 61850 Quality of Service (QoS). Once you enable IEC
61850 QoS, the packet priority of GOOSE/SMV/PTP is higher than other packets’ type.
Enable Packet Priority
Setting Description Factory Default
Enable IEC 61850 QoS Enables or disables IEC 61850 OoS function. disables
GOOSE
Setting Description Factory Default
High/Medium/Normal/
Low
The priority sequence is High>Medium>Normal>Low. We
recommend setting GOOSE packet as high priority.
High
SMV
Setting Description Factory Default
High/Medium/Normal/
Low
The priority sequence is High>Medium>Normal>Low. We
recommend setting SMV packet as high priority.
High
PTP
Setting Description Factory Default
High/Medium/Normal/
Low
The priority sequence is High>Medium>Normal>Low. High
