PT-7528 Series Advanced Settings
4-54

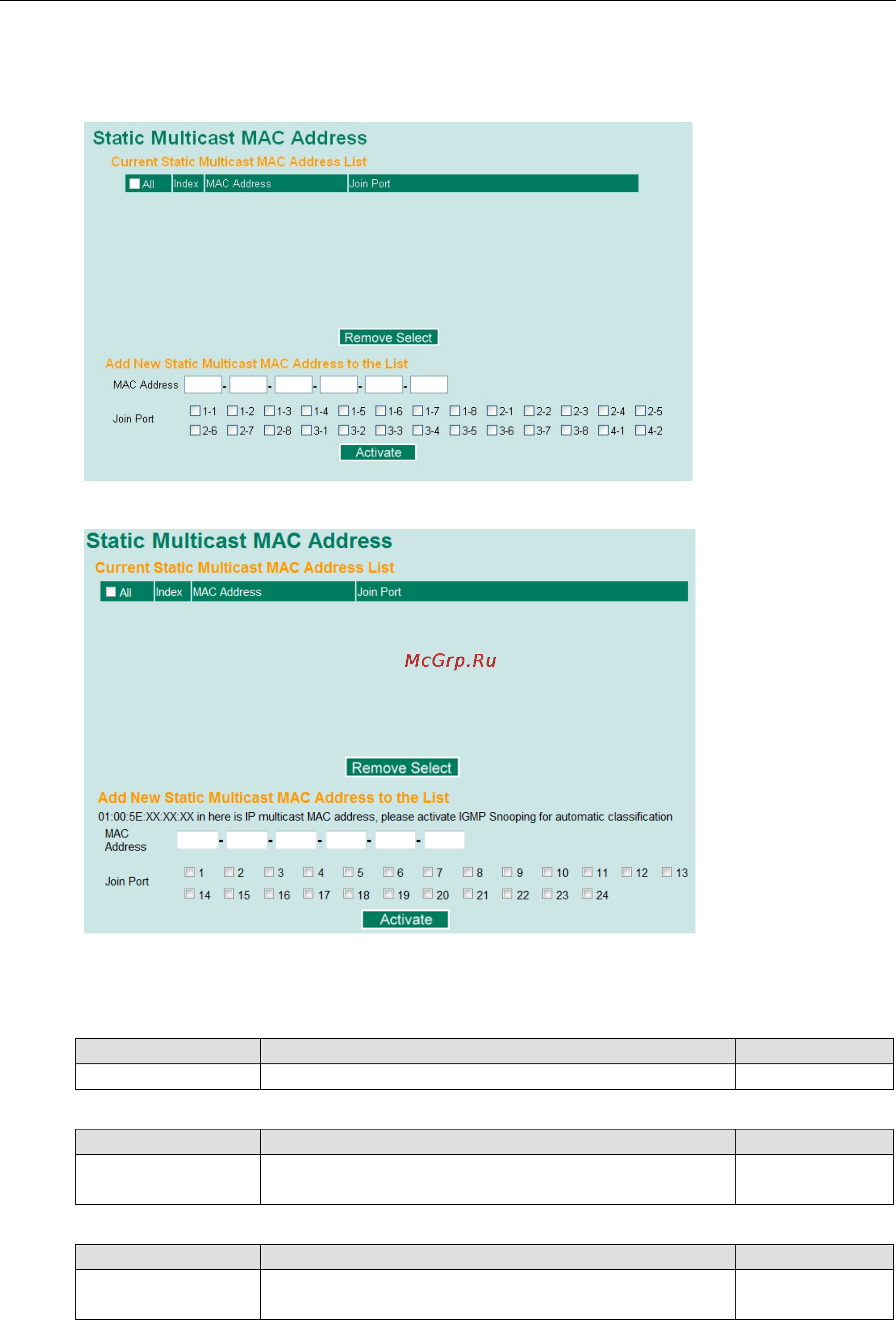

Static Multicast MAC Addresses
Layer 2 switch page
Layer 3 switch page
NOTE: 01:00:5E:XX:XX:XX on this page is the IP multicast MAC address. Please activate IGMP Snooping for
automatic classification.
Add New Static Multicast Address to the List
Setting Description Factory Default
MAC Address
Input the multicast MAC address of this host.
None
MAC Address
Setting Description Factory Default
Integer Input the number of the VLAN that the host with this MAC
address belongs to.
None
Join Port
Setting Description Factory Default
Select/Deselect
Checkmark the appropriate check boxes to select the join ports
for this multicast group.
None
