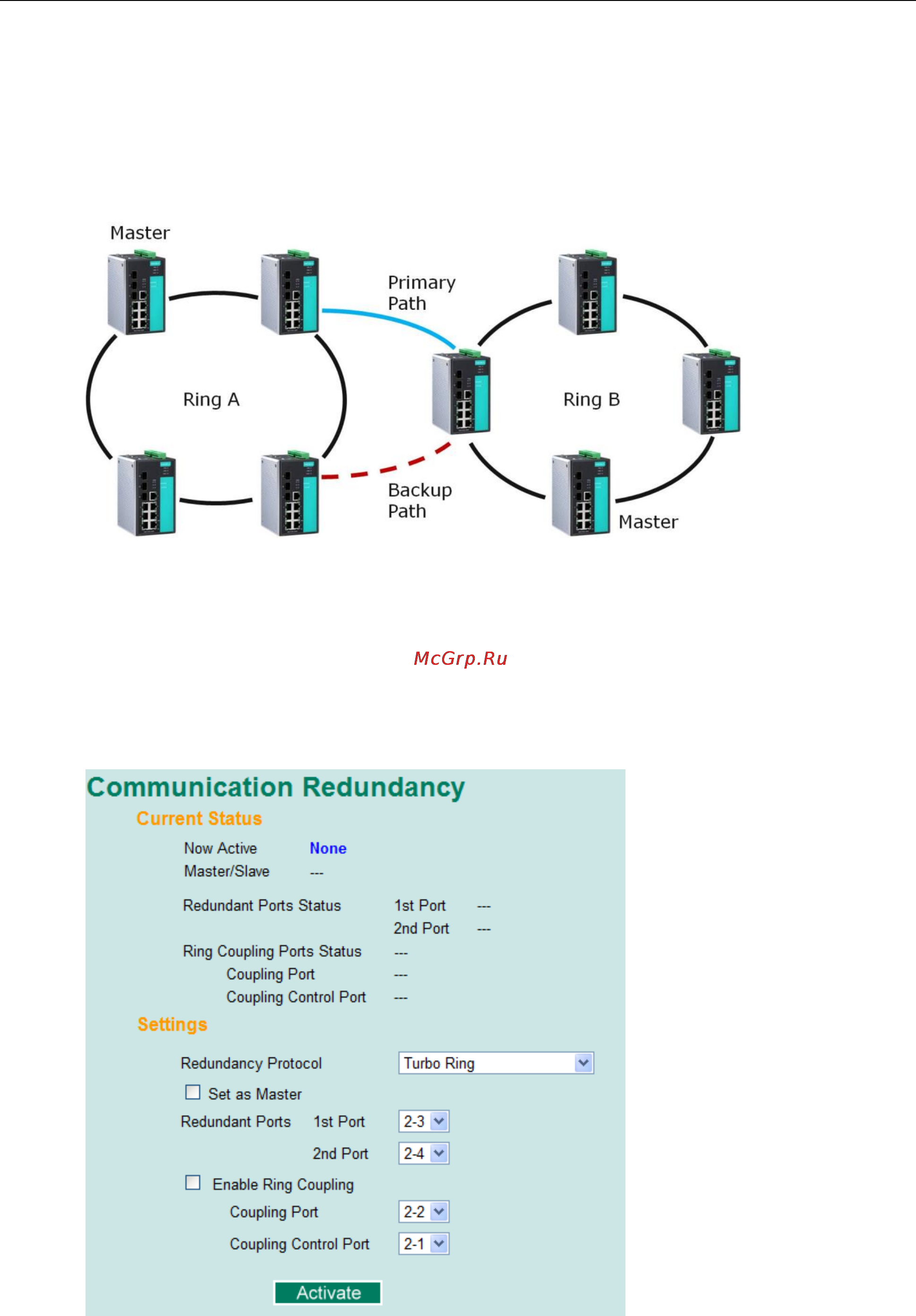

Communication Redundancy Turbo Ring
2-7
Dual-Homing Configuration (applies only to “Turbo Ring V2”)
The dual-homing option uses a single Ethernet switch to connect two networks. The primary path is the
operating connection, and the backup path is a back-up connection that is activated in the event that the
primary path connection fails.
Dual-Homing for a “Turbo Ring V2” Ring
Configuring “Turbo Ring” and “Turbo Ring V2”
Use the Communication Redundancy page to select Turbo Ring, Turbo Ring V2, or Turbo Chain. Note
that configuration pages for these three protocols are different.
Configuring “Turbo Ring”
