Communication Redundancy Turbo Ring

2-6

(4) Ring Coupler – Scenario 2:

By linking all members of DRC group 2 to the member of the another ring DRC group 1 (Diagram 1: The

right side DRC group 2 of ring A coupler to left side DRC group 1 of ring B)

or by linking all members of DRC group 2 to the member of the another ring DRC group 2 (Diagram 2:

The right side DRC group 2 of ring A coupler to left side DRC group 2 of ring B)

or no connection of the DRC group 2 (Diagram 2: The right side DRC group 2 of ring C)

(5) After all cable connections complete, the DRC protocol will start convergence and automatically assign

one DRC group of the ring as Active DRC group.

ATTENTION

The ports which support bypass function cannot be used in redundant protocol like STP, RSTP, MSTP, Turbo

Ring, Turbo Ring v2, Turbo Ring V2 with DRC (Dyanmic Ring Coupling) and Turbo Chain.

NOTE

Bypass function is used to apply on linear topology only.

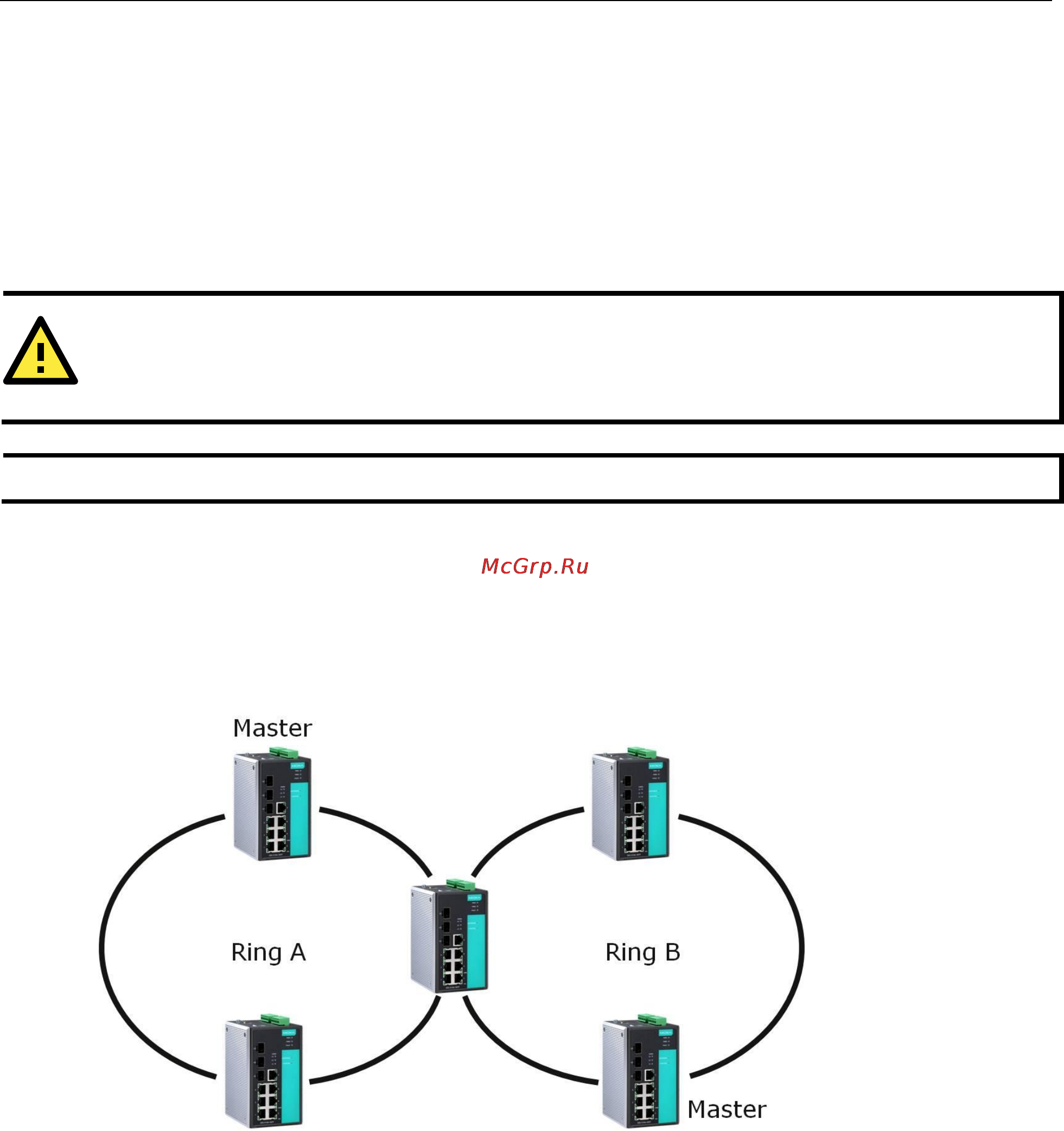

Dual-Ring Configuration (applies only to “Turbo Ring V2”)

The dual-ring option provides another ring coupling configuration, in which two adjacent rings share one

switch. This type of configuration is ideal for applications that have inherent cabling difficulties.

Dual-Ring for a “Turbo Ring V2” Ring
