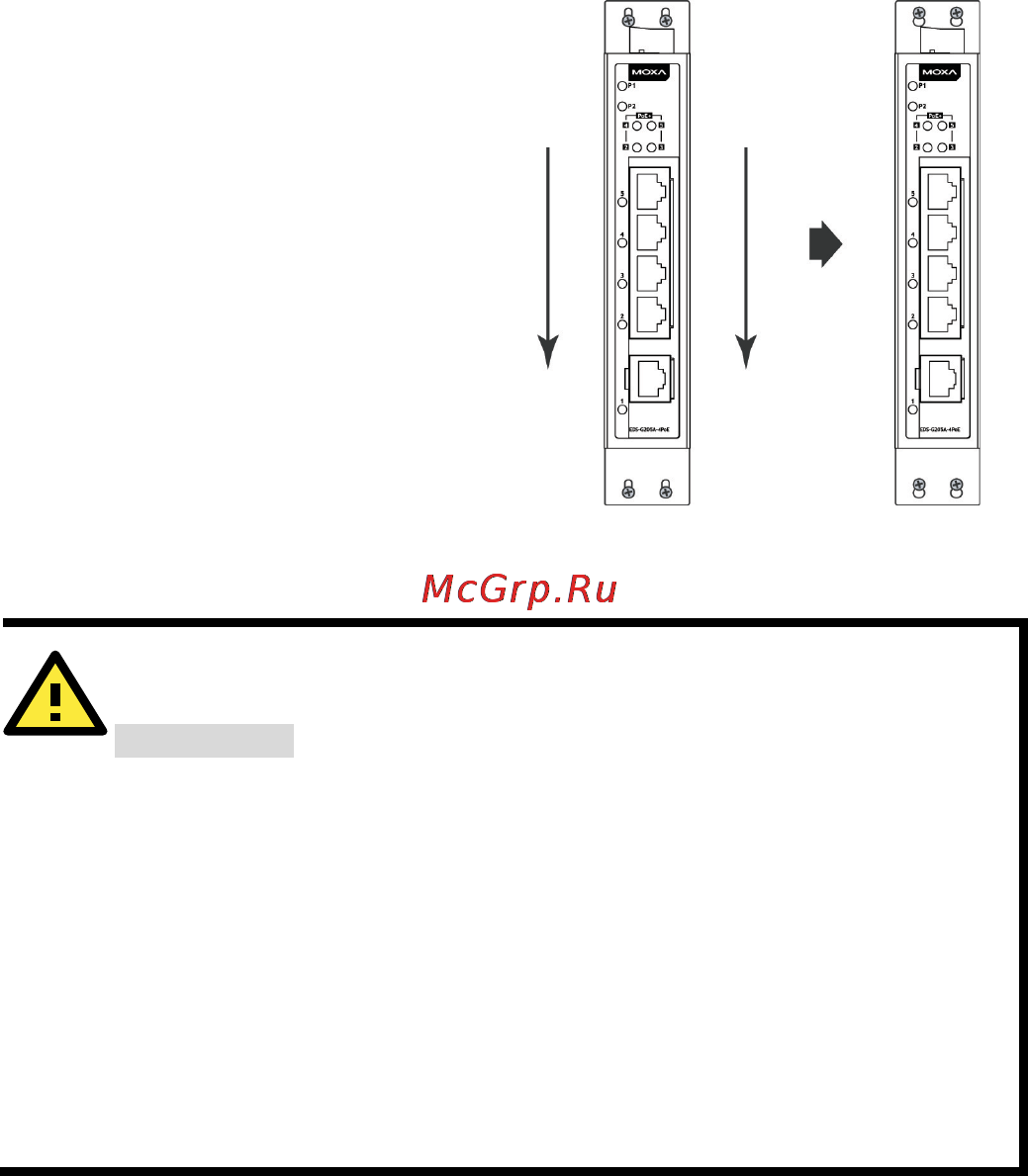

STEP 3:

Once the screws are fixed on the

wall, insert the four screw heads

through the large parts of the

keyhole

shaped apertures, and then

slide

the EDS downwards, as

indicated. Tighten the four screws

for

added stability.

Wiring Requirements

WARNING

Safety First

Turn the power off before disconnecting modules or wires. The

correct

power supply voltage is listed on the product label. Check

the voltage of your power source to make sure that you are using

the correct voltage. Do NOT use a voltage greater than what is

specified on the product label

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes dictating the

maximum current allowable for each wire size. If the current goes

above the maximum ratings, the wiring could overheat, causing

serious damage to your equipment.

You should also pay attention to the following points:

• Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE: Do not run signal or communications wiring and power wiring

in the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately.

• You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring that shares similar electrical characteristics can be

bundled together.

• Keep input wiring and output wiring separated.

• It is strongly advised that you label wiring to all devices in the system

when necessary.

• Please use copper conductor only.
