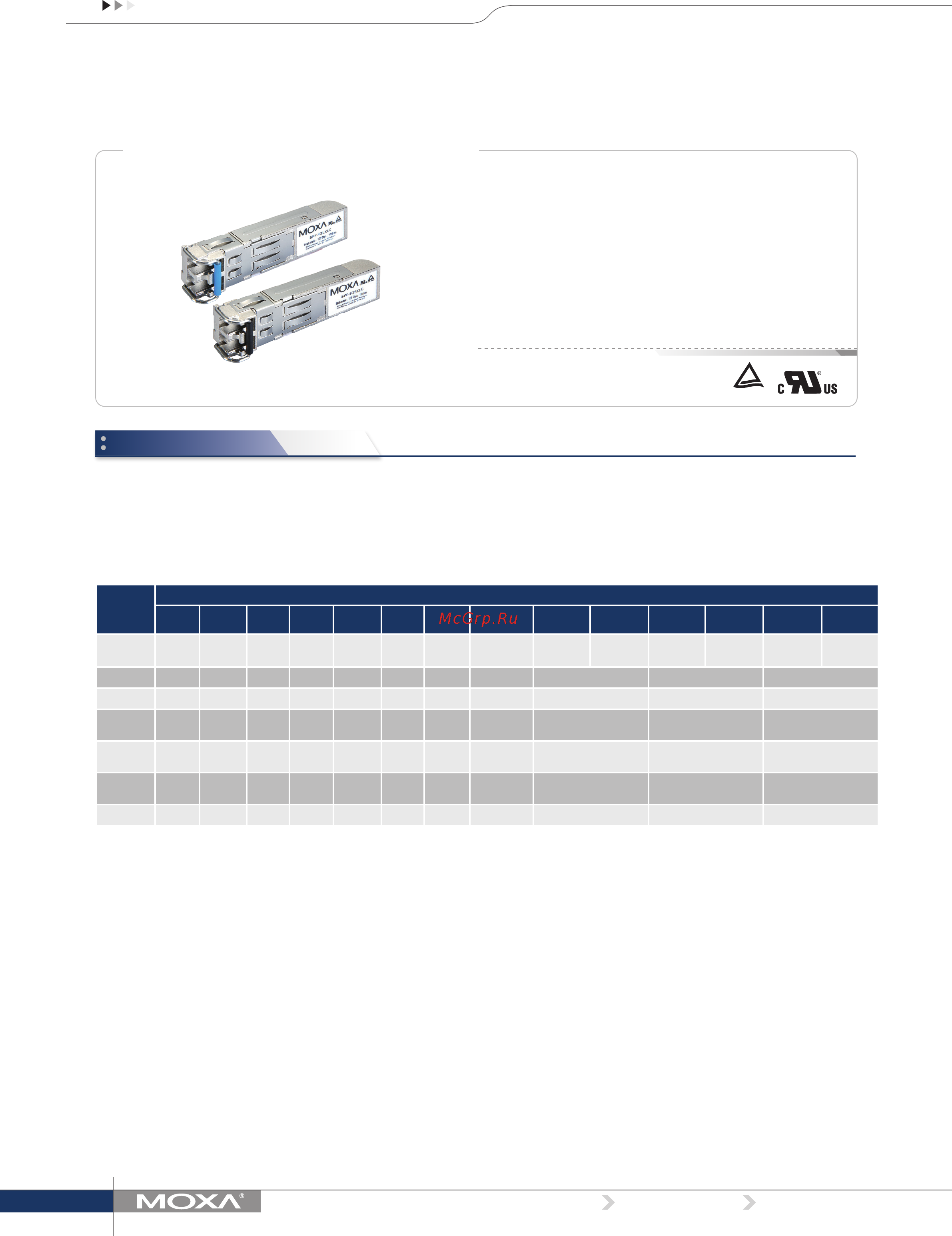

SFP-1G Series
EN : 60825
1-port Gigabit Ethernet SFP modules
Specifications
› IEEE 802.3z compliant
› Differential LVPECL inputs and outputs
› TTL signal detect indicator
› Hot pluggable LC duplex connector
› Class 1 laser product, complies with EN 60825-1
Interface
Ethernet Ports: 1
Connectors: Duplex LC Connector or Simplex LC Connector (WDM-type only)
Note: WDM-type SFP modules must be used in pairs (e.g., SFP-1G10ALC and SFP-1G10BLC)
Note: When connecting long distance SFP (SFP-ZX, EZX or EZX-120), please ensure at least 5 dB attenuation between both ends. Without attenuation, excessive optical
power may damage the transeivers.
Optical Fiber
Gigabit Ethernet
SFP-SX SFP-LSX SFP-LX SFP-LH SFP-LHX SFP-ZX SFP-EZX SFP-EZX-120 SFP-10A SFP-10B SFP-20A SFP-20B SFP-40A SFP-40B
Wavelength
850 nm 1310 nm 1310 nm 1310 nm 1310 nm 1550 nm 1550 nm 1550 nm
TX 1310 nm,
RX 1550 nm
TX 1550 nm,
RX 1310 nm
TX 1310 nm,
RX 1550 nm
TX 1550 nm,
RX 1310 nm
TX 1310 nm,
RX 1550 nm
TX 1550 nm,
RX 1310 nm
Max. TX
-4 dBm -1 dBm -3 dBm -2 dBm 1 dBm 5 dBm 5 dBm 3 dBm -3 dBm -2 dBm 2 dBm
Min. TX
-9.5 dBm -9 dBm -9.5 dBm -8 dBm -4 dBm 0 dBm 0 dBm -2 dBm -9 dBm -8 dBm -3 dBm
RX
Sensitivity
-18 dBm -19 dBm -20 dBm -23 dBm -24 dBm -24 dBm -30 dBm -33 dBm -21 dBm -23 dBm -23 dBm
Link
Budget
8.5 dB 10 dB 10.5 dB 15 dB 20 dB 24 dB 30 dB 31 dB 12 dB 15 dB 20 dB
Typical
Distance
550 m
a
2 km
b
10 km
c
30 km
c
40 km
c
80 km
c
110 km
c
120 km
c
10 km
c
20 km
c
40 km
c
Saturation
0 dBm -3 dBm -3 dBm -3 dBm -3 dBm -3 dBm -3 dBm -8 dBm -1 dBm -1 dBm -1 dBm
a. 50/125 μm, 400 MHz-km or 62.5/125 μm, 500 MHz-km @ 850 nm multi-mode fiber optic cable
b. 62.5/125 μm, 750 MHz-km @ 1310 nm multi-mode fiber optic cable
c. 9/125 μm single-mode fiber optic cable
Note: The actual communication distance depends on many factors, including connector loss, cable deployment, and the age of the cabling system. We recommend doing a
link budget analysis and reserving a 3 dB margin for such factors.
Environmental Limits
Operating Temperature:
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: UL 60950-1, TÜV
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
