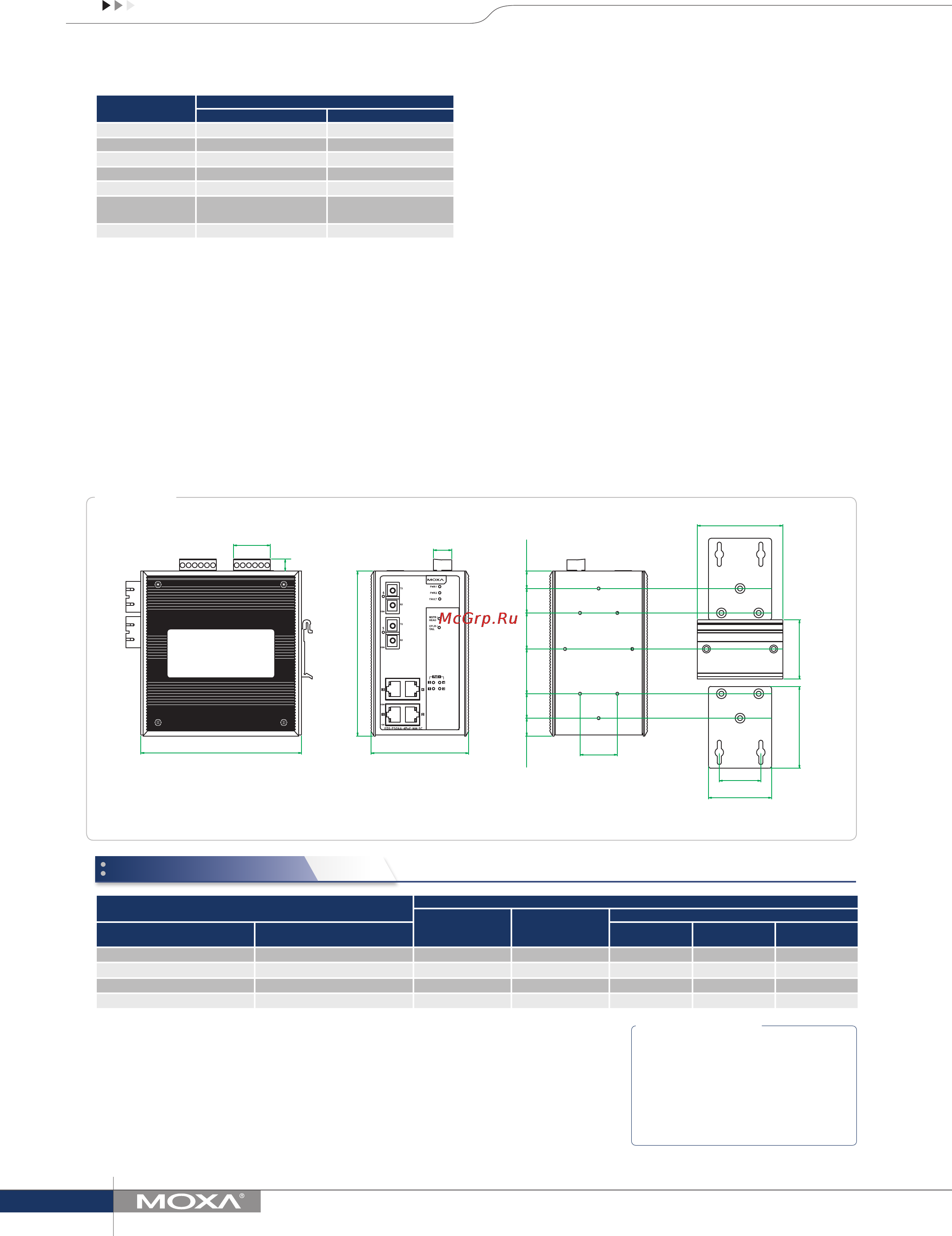

Side View Front View Rear View DIN-Rail/Panel Mounting Kit
80.05 (3.15)
131.5 (5.18)
30 (1.18)
51.6 (2.03)
67 (2.64)
48.39 (1.9)
70 (2.76)
9.75 (0.38)
135 (5.31)
15 (0.59)
36.6 (1.44)
29.5
(1.16)
30.5 (1.2)
14.3 (0.56)20
(0.79)
20
(0.79)
14.6(0.57)
34 (1.34)
Optical Fiber
100BaseFX
Multi-mode Single-mode
Wavelength 1300 nm 1310 nm
Max. TX -10 dBm 0 dBm
Min. TX -20 dBm -5 dBm
RX Sensitivity -32 dBm -34 dBm
Link Budget 12 dB 29 dB
Typical Distance
5 km
a
4 km
b
40 km
c
Saturation -6 dBm -3 dBm
a. 50/125 μm, 800 MHz*km fiber optic cable
b. 62.5/125 μm, 500 MHz*km fiber optic cable
c. 9/125 μm single-mode fiber optic cable
Power Requirements
Input Voltage: 24/48 (20 to 60 V) VDC, redundant dual inputs
Input Current: Max. 7.8 A @ 24 VDC (supports up to 4 ports at 30
watts per PoE port)
Connection: 2 removable 6-contact terminal blocks
Reverse Polarity Protection: Present
Physical Characteristics
Housing: Metal, IP30 protection
Dimensions: 80 x 135 x 131.5 mm (3.15 x 5.31 x 5.18 in)
Weight: 1270 g
Installation: DIN-rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature:
StandardModels:0to60°C(32to140°F)
WideTemp.Models:-40to75°C(-40to167°F)
Storage Temperature:-40to85°C(-40to185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: UL 508
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Rail Traffic: EN 50121-4
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Note:PleasecheckMoxa’swebsiteforthemostup-to-datecerticationstatus.
MTBF (mean time between failures)
Time: 433,000 hrs
Database: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
Dimensions
Unit:mm(inch)
Available Models
Port Interface
PoE+,
10/100BaseT(X)
10/100BaseT(X)
100BaseFX
Standard Temperature
(0 to 60˚C)
Wide Temperature
(-40 to 75˚C)
Multi-mode
SC Connector
Multi-mode
ST Connector
Single-mode
SC Connector
EDS-P506A-4PoE EDS-P506A-4PoE-T
4 2 – – –
EDS-P506A-4PoE-MM-SC EDS-P506A-4PoE-MM-SC-T
4 – 2 – –
EDS-P506A-4PoE-MM-ST EDS-P506A-4PoE-MM-ST-T
4 – – 2 –
EDS-P506A-4PoE-SS-SC EDS-P506A-4PoE-SS-SC-T
4 – – – 2
Ordering Information
Optional Accessories (can be purchased separately)
DR-75-24/120-24: 75/120 W DIN-rail 24 VDC power supplies
DR-75-48/120-48: 75/120 W DIN-rail 48 VDC power supplies
DRP-240-48: 240 W DIN-rail 48 VDC power supplies
MXview: Moxa industrial network management software with 50, 100, 250, 500, 1000, or 2000 nodes
EDS-SNMP OPC Server Pro: OPC server software that works with all SNMP devices
ABC-01:CongurationbackupandrestorationtoolformanagedEthernetswitches,0to60°Coperating
temperature
WK-51-01: Wall mounting kit
RK-4U:4U-high19”rackmountingkit
Package Checklist
• EDS-P506A-4PoE switch
• RJ45 to DB9 console port cable
• Protective caps for unused ports
• Document and software CD
• Hardware installation guide (printed)
• Warranty card
