Industry-specific Ethernet Switches
1
www.moxa.com
Specifications
Introduction

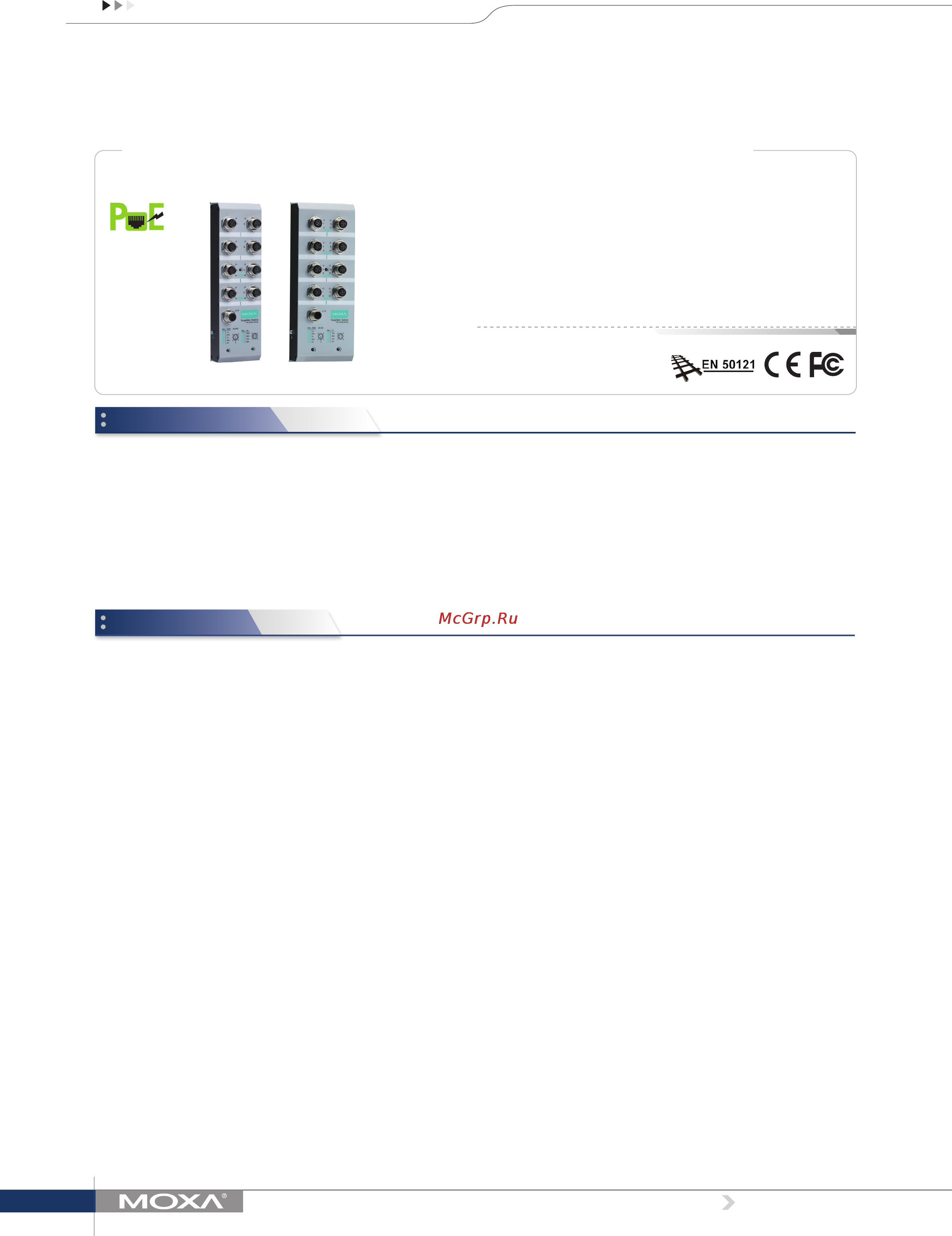

TN-5308-4/8PoE Series
EN 50155 8-port unmanaged Ethernet switches with 4/8 PoE ports
The ToughNet TN-5308-4/8PoE series M12 unmanaged Ethernet
switches are designed for industrial applications in harsh
environments. The M12 connectors ensure tight, robust connections,
and guarantee reliable operation, even for applications that are
subject to high vibration and shock. The TN-5308-4/8PoE series
Ethernet switches provide 8 Fast Ethernet M12 ports with 4/8 IEEE
802.3af compliant PoE (Power-over-Ethernet) ports. The switches are
classified as power source equipment (PSE) and provide up to 15.4
watts of power per port.
The TN-5308-4/8PoE switches can be used to power IEEE 802.3af
compliant powered devices (PDs), eliminating the need for additional
wiring. The switches support IEEE 802.3/802.3u/802/3x with 10/100M,
full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical
solution for your industrial Ethernet network. Models with an extended
operating temperature range of -40 to 75°C are also available. The
TN-5308-4/8 PoE series Ethernet switches comply with a portion of
EN 50155 specifications, covering operating temperature, power input
voltage, surge, ESD, and vibration, making the switches suitable for a
variety of industrial applications.
› 4 or 8 IEEE 802.3af compliant PoE and Ethernet combo ports
› Provides up to 15.4 watts at 48 VDC per PoE port
› Complies with a portion of EN 50155 specifications
› -40 to 75°C operating temperature range (T models)
Power over Ethernet
Technology
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
IEEE 802.3af for Power-over-Ethernet
Processing Type: Store and Forward
Interface
M12 Ports: 10/100BaseT(X) auto negotiation speed, F/H duplex mode
and auto MDI/MDI-X connection
Power Requirements
Input Voltage: 48 VDC
Operating Voltage: 46 to 50 V
Input Current:
• TN-5308-4PoE: 1.6 A @ 48 VDC
• TN-5308-8PoE: 2.9 A @ 48 VDC
Overload Current Protection: 3 A @ 48 VDC
Connection: M12 connector
Reverse Polarity Protection: 3 A @ 48 VDC
PoE (per port)
Max. Output Power: 15.4 W
Output Voltage: 44 to 48.5 VDC
Max. Output Current: 350 mA
Max. Overload Protection: 400 mA
Physical Characteristics
Housing: Metal
IP Rating: IP40 protection
Dimensions:
TN-5308-4PoE: 60 x 216.6 x 48.7 mm (2.36 x 8.53 x 1.91 in)
TN-5308-8PoE: 80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.1 in)
Weight:
TN-5308-4PoE: 675 g (1.49 lb)
TN-5308-8PoE: 970 g (2.14 lb)
Installation: Panel mounting, DIN-rail mounting (with optional kit)
Environmental Limits
Operating Temperature:
Standard Models: -25 to 60°C (-13 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
Safety: UL/cUL 508, EN 60950-1 (LVD)
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
IEC 61000-4-2 ESD: Contact 6 kV; Air 8 kV
IEC 61000-4-3 RS: 20 V/m (80 MHz to 1 GHz)
IEC 61000-4-4 EFT: Power 2 kV; Signal 2 kV
IEC 61000-4-5 Surge: Power 2 kV; Signal 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8
Rail Traffic: (for panel mounting installations)
EN 50155*, EN 50121-4, EN 45545-2
*Complies with a portion of EN 50155 specifications.
Shock: EN 50155, IEC 61373
Freefall: IEC 60068-2-32
Vibration: EN 50155, IEC 61373
Note: Please check Moxa’s website for the most up-to-date certication status.
