www.moxa.com
info@moxa.com
Industry-specific Ethernet Switches

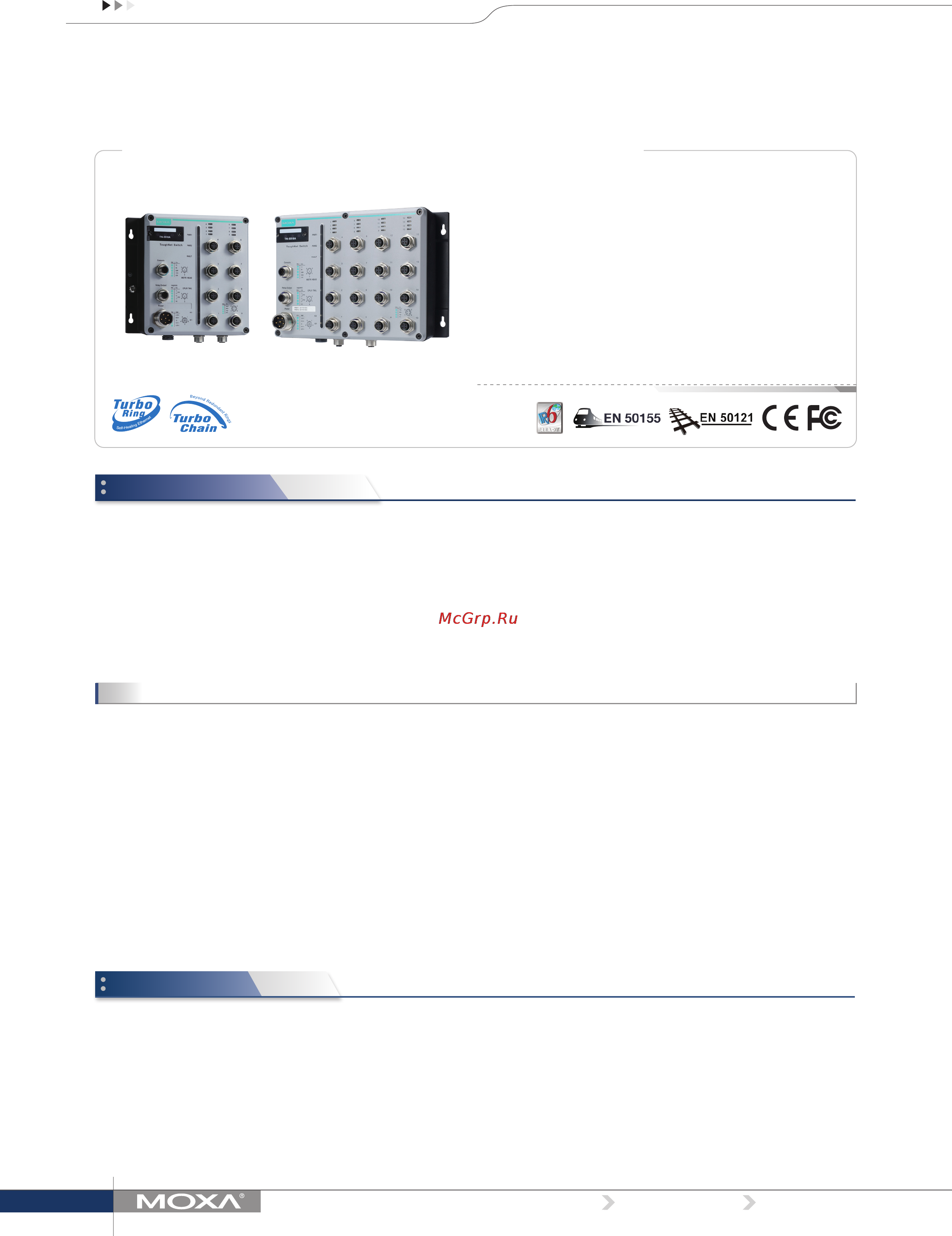

TN-5510A/5518A Series
The ToughNet TN-5500A series M12 managed Ethernet switches are
designed for railway applications, such as rolling stock, and wayside
installations. The TN series switches use M12 and other circular
connectors to ensure tight, robust connections, and guarantee reliable
operation against environmental disturbances, such as vibration
and shock. The TN-5500A series Ethernet switches provide 8 or 16
Fast Ethernet M12 ports and 2 ports on the down side to provide the
Gigabit Ethernet interface with an optional bypass relay function. In
addition, the 24 to 110 VDC wide power input range and isolated dual
power inputs not only allow you to use the same type of power source
at different sites around the globe, but also increase the reliability of
your communications system. Furthermore, the -40 to 75°C operating
temperature and IP54-rated waterproof enclosure allow deployment
in harsh environments. The TN-5500A series Ethernet switches are
compliant with essential sections of EN 50155, covering operating
temperature, power input voltage, surge, ESD, and vibration, as well as
conformal coating and power insulation, making the switches suitable
for a variety of industrial applications.
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• Leading EN 50155-compliant industrial Ethernet switches for
rolling stock applications
• DHCP Option 82 for IP address assignment with different policies
• Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250
switches), and STP/RSTP/MSTP for network redundancy
• IGMP snooping and GMRP for filtering multicast traffic
• EtherNet/IP and Modbus/TCP industrial Ethernet protocols
supported
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network
planning
• QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic
classification and prioritization
• IEEE 802.3ad, LACP for optimum bandwidth utilization
• SNMPv1/v2c/v3 for different levels of network management
• TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance
network security
• RMON for efficient network monitoring and proactive capability
• Bandwidth management prevents unpredictable network status
• Lock port allows access by only authorized MAC addresses
• Port mirroring for online debugging
• Automatic warning by exception through email, relay output
• Line-swap fast recovery
• LLDP for automatic topology discovery in network management
software
• Configurable by web browser, Telnet/serial console, CLI, and
Windows utility
• Loop protection prevents network loops
• Panel mounting or DIN-rail mounting installation capability
Features and Benefits
Introduction
EN 50155 8+2G/16+2G-port Gigabit Ethernet switches
› 2 Gigabit ports with optional bypass relay function
› Isolated power with wide 24 to 110 VDC power supply range
› Essential compliance with EN 50155*
› -40 to 75°C operating temperature range
› Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250
switches), and STP/RSTP/MSTP for network redundancy
*Moxa defines “essential compliance” to include those EN 50155 requirements
that make products more suitable for rolling stock railway applications.
Specifications
Technology
Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
Protocols: IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/
Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP,
RMON, HTTP, HTTPS, Telnet, SSH, Syslog, SNMP Inform, LLDP,
IEEE 1588 PTP v2, IPv6, NTP Server/Client, EtherNet/IP, Modbus/TCP
MIB: MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge
MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control: IEEE802.3x flow control, back pressure flow control
