MartinLogan Cinema [6/20] Cinema pad installation

6 Installation

On the Television

If your television provides a wide, level and stable platform, the shielded Cinema

can be placed directly on it (see figure 3). The Cinema is equipped with nonskid

material underneath to prevent vibration and to keep it from scratching the top of

your television. Please see the “Cinema Pad Installation” section below for more details.

On the Wall

An optional adjustable mount is available allowing you to mount the Cinema on the

wall or ceiling without locating a stud (see figure 4). Contact your dealer for details.

On the Floor

Placing the Cinema on the floor may position it too low to blend with the front

speakers. The use of a stand that positions the Cinema at the bottom of the screen

may be a good solution (see figure 5). However, if placing the Cinema on the

floor is the best arrangement for your system, the optional adjustable mount will

allow for tilting towards the listening position. Contact your dealer for details

Cinema Pad Installation

If not using the optional Cinema adjustable mount, we have provided protective pads

to protect the surface the Cinema will be placed on. Follow the instructions below

to properly adhere the pads to the bottom of the Cinema (see figure 2). To prevent

slipping it is important that the Cinema be used on a level surface. If the Cinema is

being used on a tilted surface we recommend use of the optional adjustable mount.

Cinema Pad Installation Instructions:

1. Turn the Cinema upside down and set it on a soft towel.

2. Place the protective pads on the Cinema to determine their placement.

3. Remove white backing being careful not to peel the adhesive layer off.

4. Line up the holes in the pads with the holes in the bottom of the Cinema and

carefully apply.

Installation Options

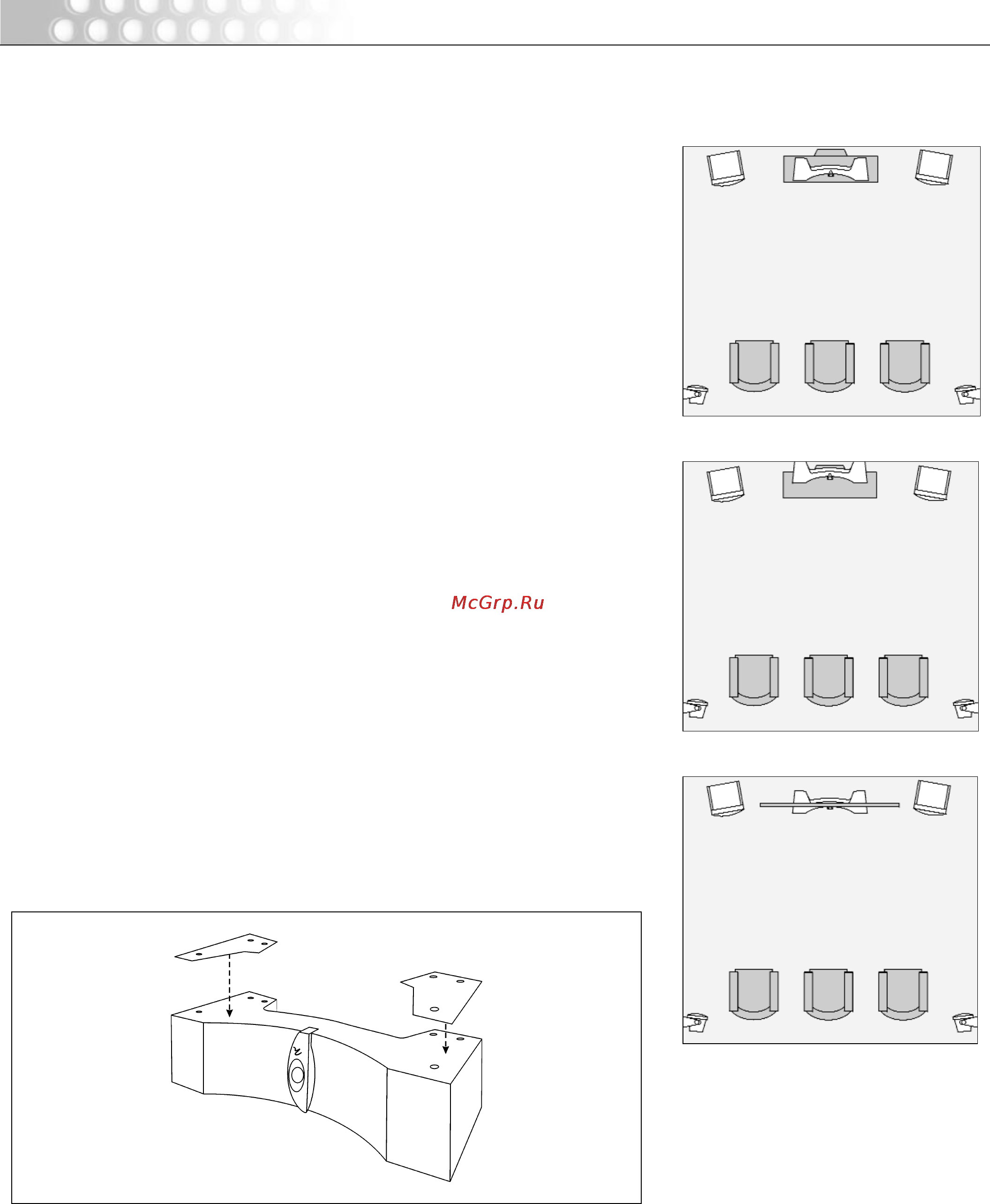

Figure 3. On the television

Figure 4. On the wall

Figure 5. On the floor

Figure 2. Installing the Cinema pads.

INSTALLATION
