Moxa TN-5818-2GTXBP-HV-HV-T [54/109] Using virtual lan

Moxa Managed Ethernet Switches Featured Functions

3-42

CoS Value and Priority Queues

Setting Description Factory Default

Low/Normal/

Medium/High

Maps different CoS values to 4 different egress queues. 0: Low

1: Low

2: Normal

3: Normal

4: Medium

5: Medium

6: High

7: High

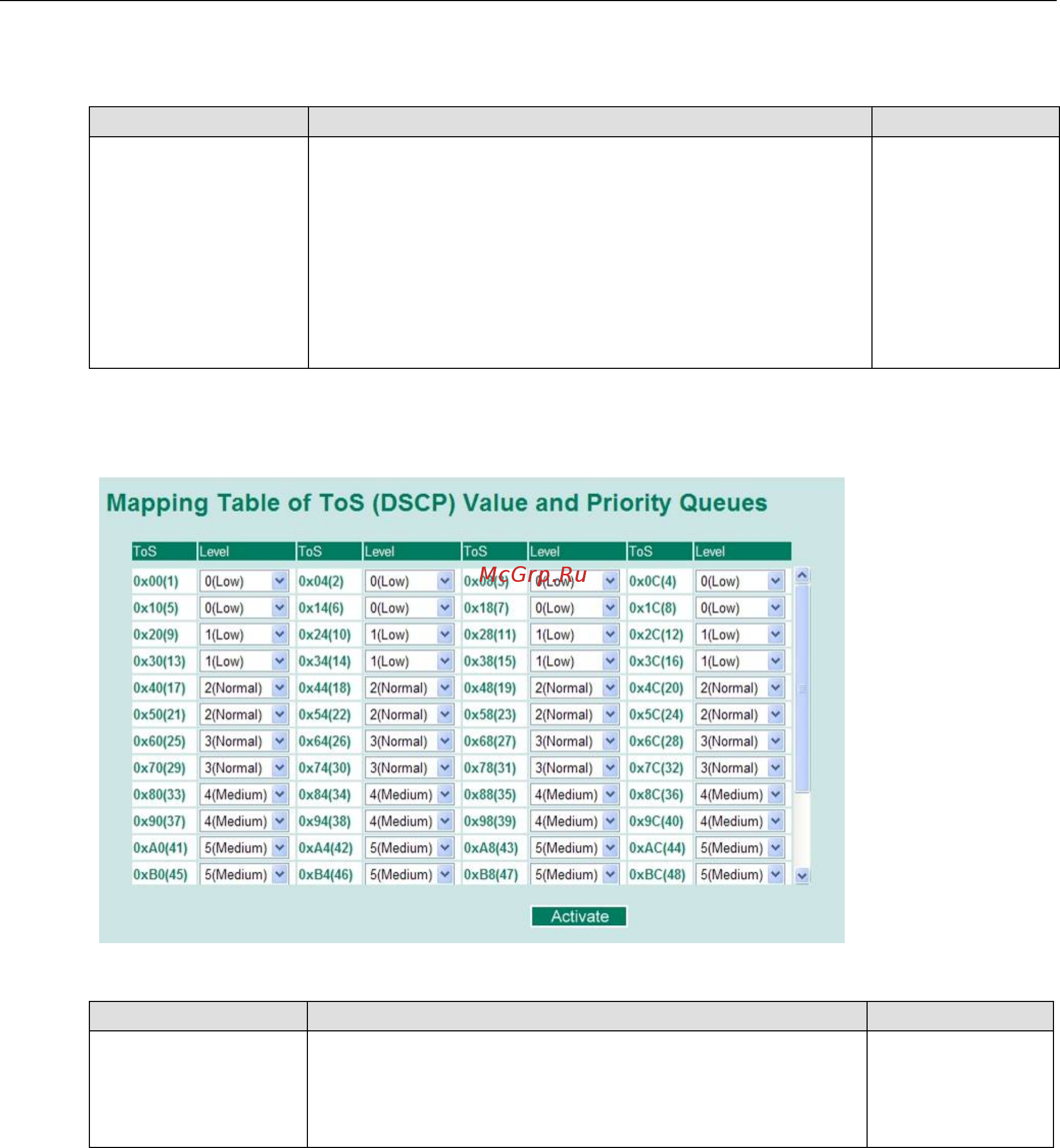

TOS/DiffServ Mapping

ToS (DSCP) Value and Priority Queues

Setting Description Factory Default

Low/Normal/

Medium/High

Maps different TOS values to 4 different egress queues. 1 to 16: Low

17 to 32: Normal

33 to 48: Medium

49 to 64: High

Using Virtual LAN

Setting up Virtual LANs (VLANs) on your Moxa switch increases the efficiency of your network by dividing the

LAN into logical segments, as opposed to physical segments. In general, VLANs are easier to manage.

The Virtual LAN (VLAN) Concept

What is a VLAN?

A VLAN is a group of devices that can be located anywhere on a network, but which communicate as if they are

on the same physical segment. With VLANs, you can segment your network without being restricted by physical

connections—a limitation of traditional network design. With VLANs you can segment your network according

into:
