Controls and Connections 7

configuration of your listening environment, the placement

of the unit, and your seating arrangement. Due to the way

bass sound waves develop in different rooms, there is no rule

of thumb for setting phase. For instance, if your room has

a peak at the subwoofer crossover area, you may wish to

set the phase so the actual acoustic outputs of the subwoofer

and main speakers are out of phase. Experiment, try dif-

ferent settings and be patient.

Power

The Auto/On/Standby switch controls Depth i’s energy sav-

ing feature. When set to 'Auto', the Depth i will turn on

when a music signal is detected and off when there is none.

The 'On' setting prevents the Depth i from entering energy

saving mode. The 'Standby' setting forces the Depth i into

energy saving mode. While set to 'Standby’, the Depth i will

not operate.

25Hz Hz Level

The 25Hz Level knob significantly adjusts frequen-

cies where peaks and dips of different amplitudes often

manifest in real world environments. The ideal setting is

dependent on room size and construction, system con-

figuration and personal preference.

High Pass Filter: Out

The High Pass Filter: Out control filters the signal output

from the Right Out and Left Out connections.

Status Light

See descriptions of the status light on page 8. The top con-

trol panel status light functions identically to the back plate

status light.

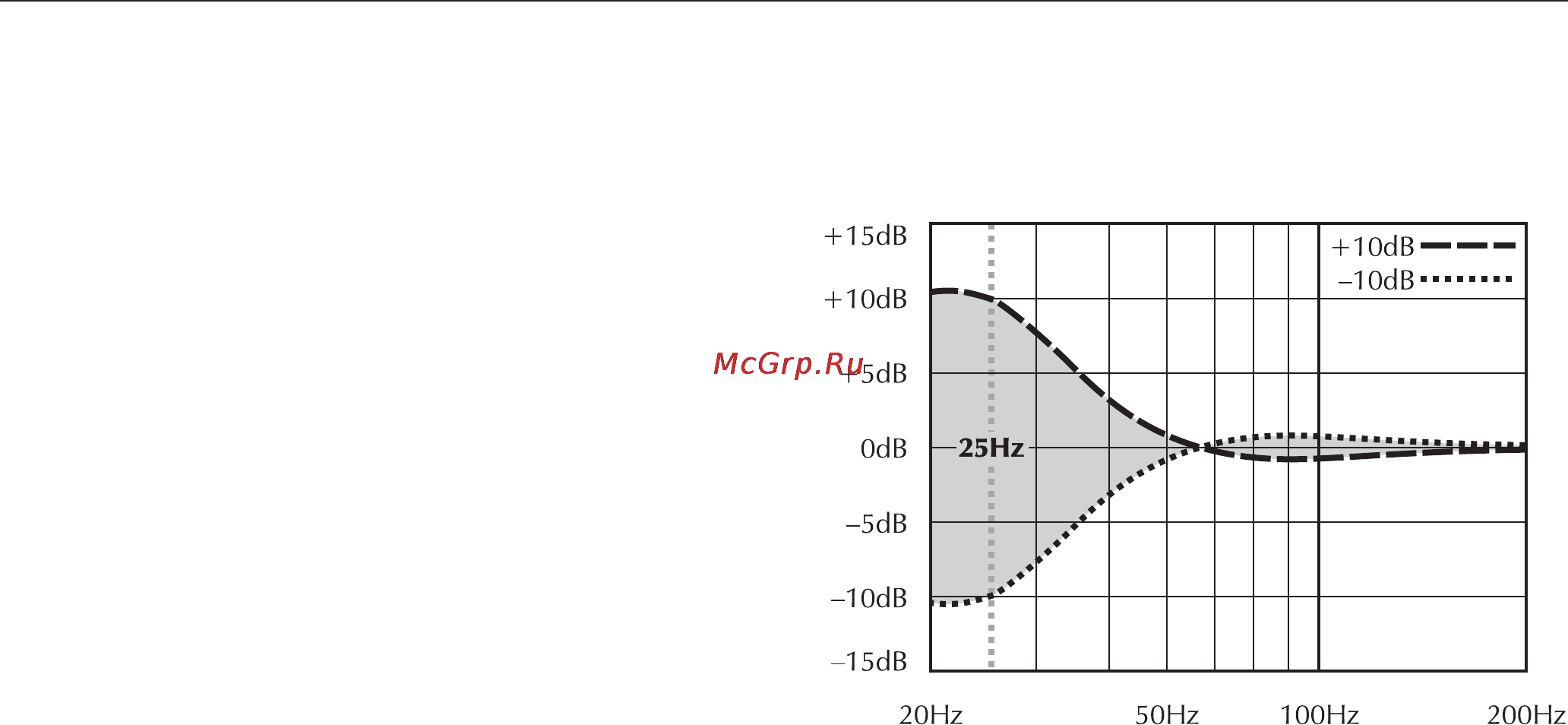

Figure 2 Graph demonstrating the frequencies effected by the 25Hz

Level controls
