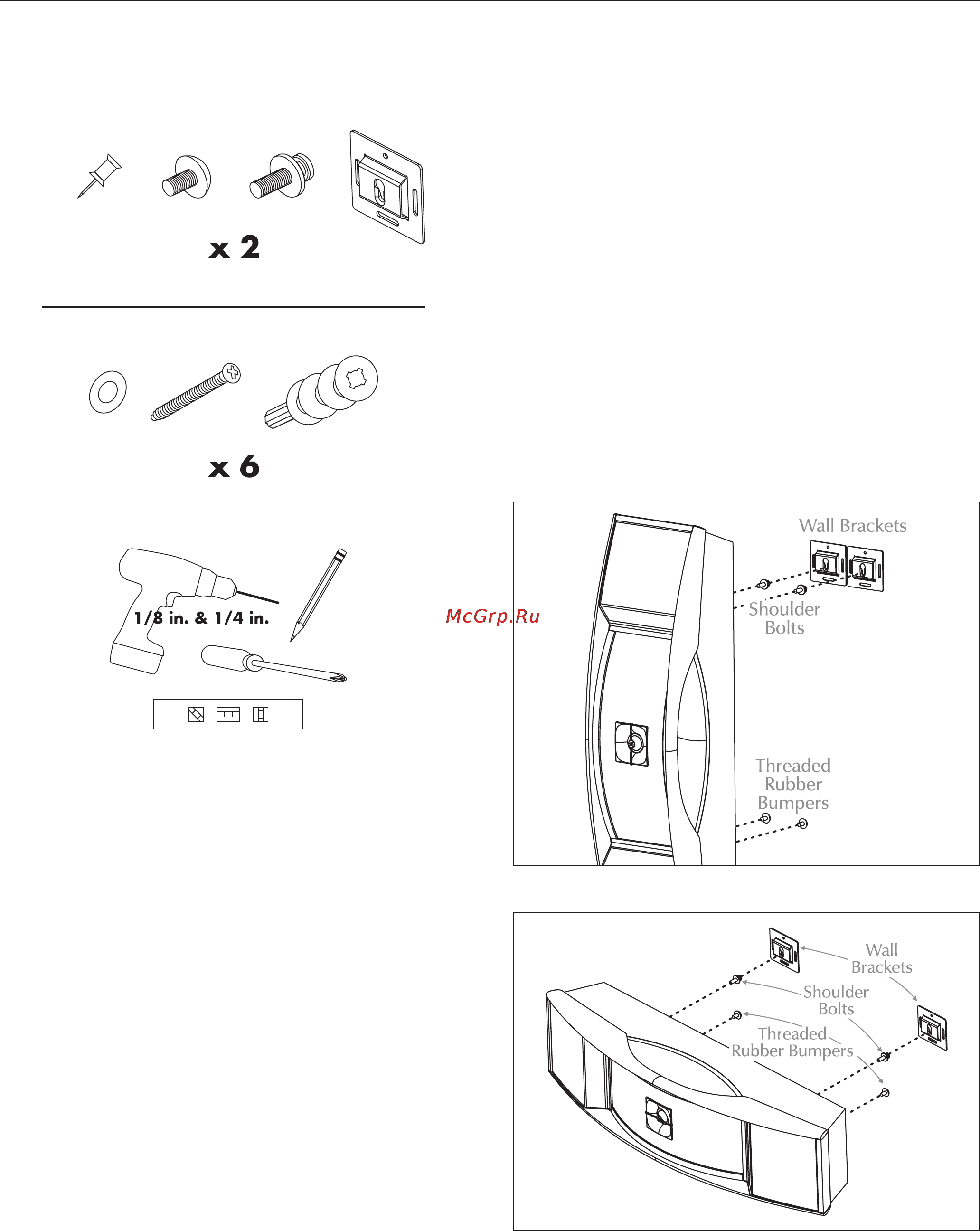

10 Installation

Required hardware (included):

Required tools (not supplied):

1 Position the template. Install the center push pin.

2 Level the template. Install the second push pin.

3 Using a pencil trace two keyholes located on the template.

4 Using a 1/8-inch drill bit, drill two pilot holes located

on the template.

5 Remove the template.

6 If a pilot hole does not hit a stud use a 1/4-inch drill

bit to widen the hole and install a wall anchor.

7 Install both wall brackets using only the top screw. Do

not over tighten the top screw.

8 Align each wall bracket’s keyhole with a traced key-

hole and tighten the top screw.

9 On the back of the Feature, install two shoulder bolts

in the top holes and two rubber bumpers in the bottom

holes. Test fit the speaker. Adjust the bracket positions

until the speaker fits. IMPORTANT! At this point do not

allow the speaker to hang freely—there are not enough

screws installed to fully support its weight.

10 Drill two more pilot holes (per bracket) at the screw hole

locations on the left & right sides of both wall brackets.

11 If a pilot hole does not hit a stud remove the wall brack-

et, use a 1/4-inch drill bit to widen the hole, and install

a wall anchor.

12 Install both wall brackets using all 3 screws per brack-

et. Tighten the screws.

13 Hang the speaker on the wall brackets.

Figure 6. Vertical Hardware Configuration

Figure 7. Horizontal Hardware Configuration
