MartinLogan Feature [9/24] Nstallation

On the Television or Stand

If your television provides a wide, level and stable plat-

form, the Feature can be placed directly on top of the

television (see figure 3). The Feature may also be placed

on an equipment stand. When used this way, the non-skid

rubber grip feet should be used beneath the Feature to

provide stability.

On the Floor

Placing the Feature on the floor might position it too low to

blend with the front speakers. If placing the Feature on the

floor is your best option, the adjustable stand (sold sepa-

rately—MartinLogan part number 9870002) will allow

you to tilt the Feature towards the listening position.

On the Wall

The included brackets allow you to mount the Feature on

the wall (see figures 4 and “Mounting the Feature On A

Wall,” page 10).

WARNING! Installation other than that

described in the body of this document

requires specific documentation from

MartinLogan.

Using the Non-Skid Grip Feet

When setting Feature on a surface, use the non-skid Grip

Feet beneath the speaker to provide traction (see figure 5).

Mounting the Feature On A Wall

NOTE: These instructions assume the mounting surface is

of wood frame and standard sheet rock construction. If

you wish to mount the Feature to another type of material

or construction, you should consult a bonded contractor.

NOTE: Before beginning, study the Horizontal and Vertical

Hardware Configuration drawings (figures 6 & 7).

IMPORTANT! This template is used for both horizontal

and vertical installations. When drilling pilot holes and

tracing keyholes make sure you’re using the 2 pilot hole

and 2 keyhole locations intended for your installation.

Installation 9

InstallatIon

Installation Options

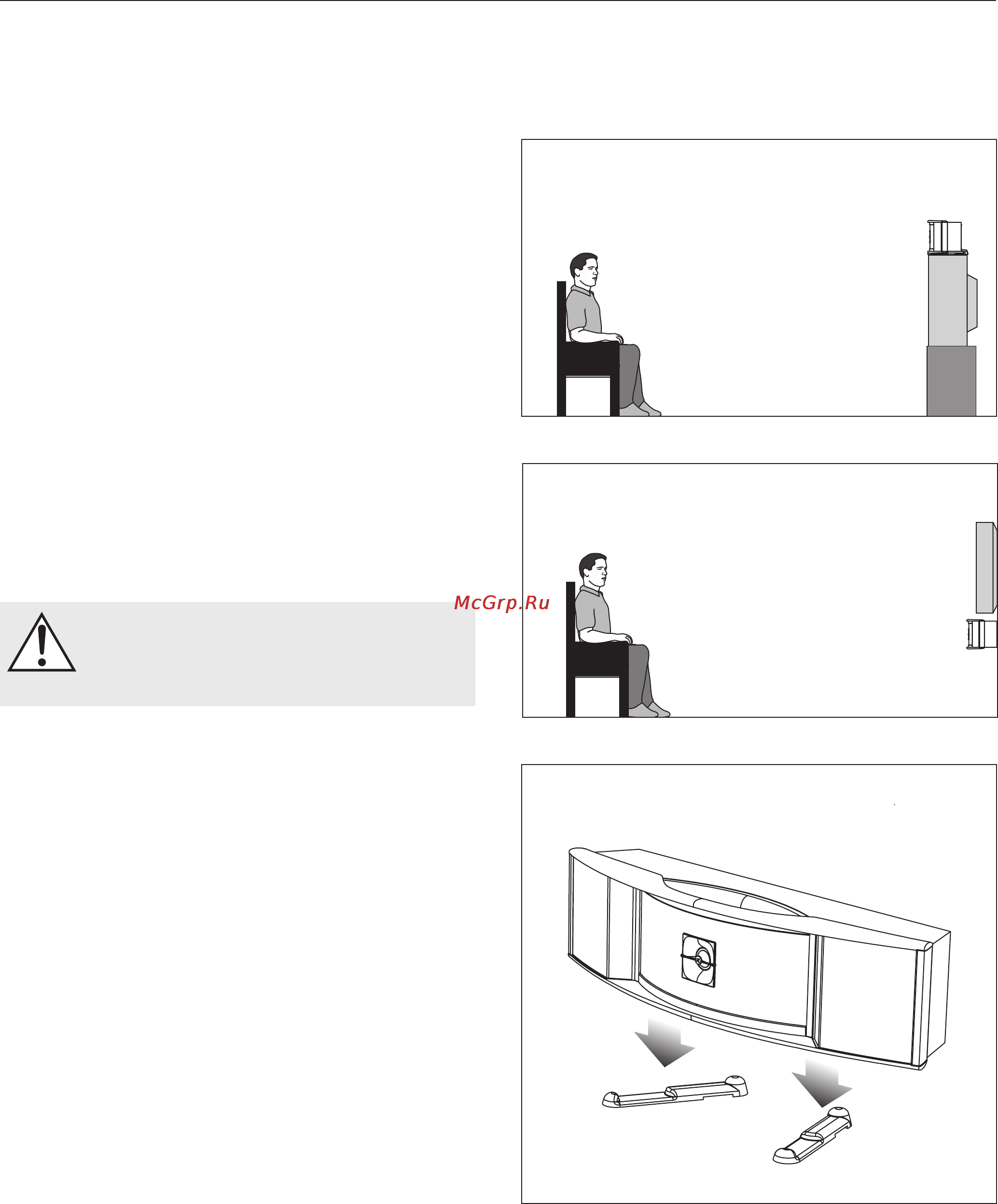

Figure 4. Feature installation on a wall.

Figure 3. Feature installation on a television.

Figure 5. If Feature is to be used with the optional adjustable stand,

place the non-skid grip feet on the stand and beneath the speaker.
