MartinLogan Grotto [10/24] Channel mode with 2 channel output

10 Connections and Control Settings

This setup is recommended if your Grotto will be used in a

2-channel only system.

Signal Connection (see figure 10):

1 Connect the left and right outputs of your preamplifier to

the left and right inputs of the Grotto using quality RCA

interconnects.

2 Connect the left and right outputs of your Grotto to the

left and right inputs of your amplifier using quality RCA

interconnects.

Recommended Control Settings (see figure 3):

1 Set the controls as recommended on page 6.

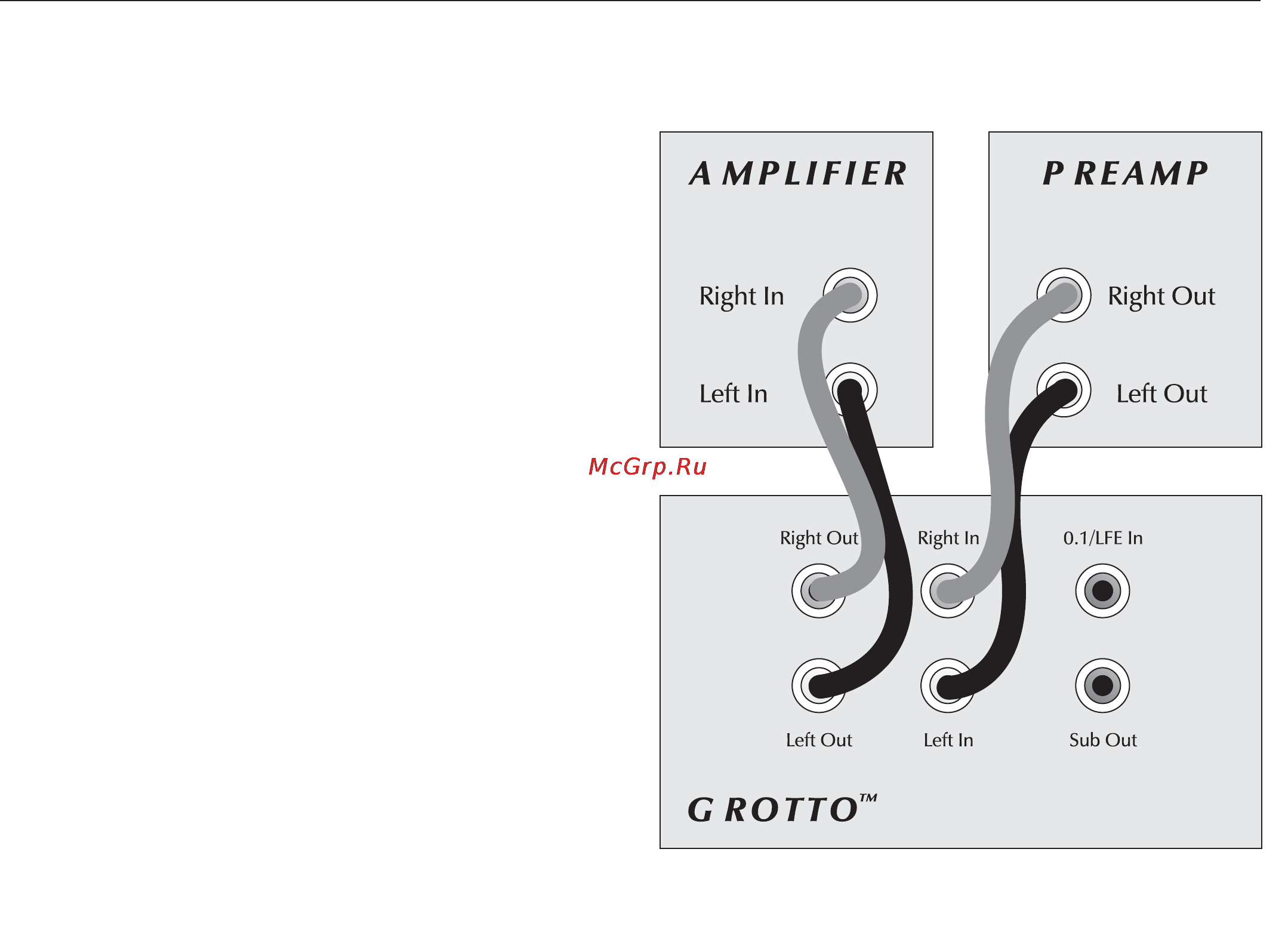

Figure 10. Signal connection for 2-channel mode with 2-channel output.

2-Channel Mode With 2-Channel Output
