MartinLogan Helos 10 [3/12] Lacement

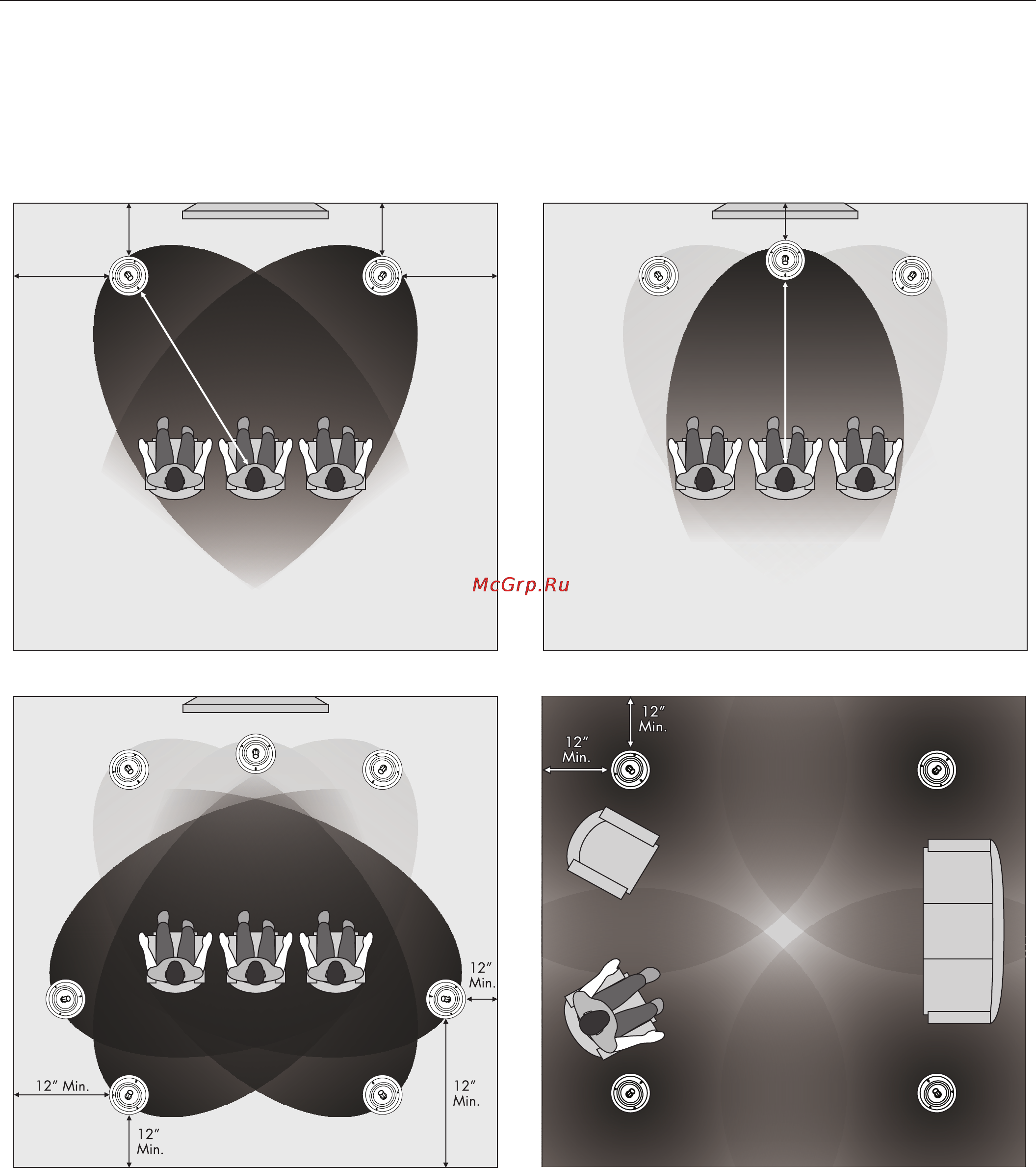

Figure 2. Adding a center channel to create a 3-channel installation.

Figure 1. 2-channel installation.

When choosing placement for the Helos 10, follow these

simple tips:

— Place the Helos 10 a minimum of 12" (30cm) from any

Place the front and center channels between 7 to 10 feet

(214 to 305cm) from the primary listening position.

— Point the tweeter of all speakers towards the primary

listening position.

Figure 4. Using the Helos 10 for distributed audio.

Adding surround channels to create a 5- or 7-channel installation.
