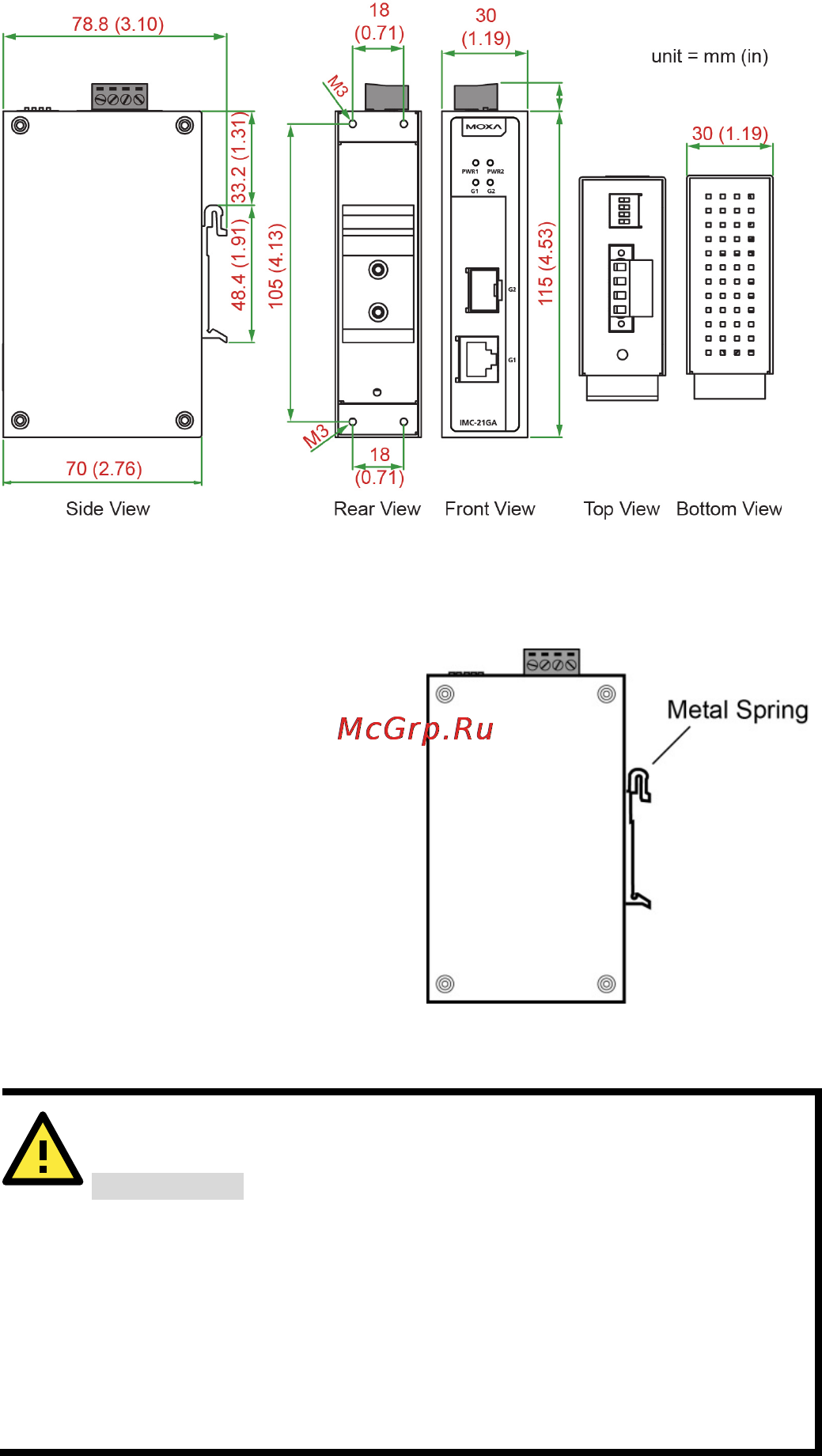

Mounting Dimensions

DIN Rail Mounting

The aluminum DIN rail attachment

plate should be fixed to the back

panel of the

IMC-21GA when you

take it out of the box. If you need to

reattach the DIN

rail attachment

plate to the

IMC-21GA, make sure

the stiff metal spring is situated

towards the top.

Wiring Requirements

ATTENTION

Safety First!

Be sure to disconnect the power cord before installing and/or

wiring your IMC

-21GA.

Calculate the maximum possible current in each power wire and

common wire. Observe all electrical codes

dictating the

maximum current allowable for each wire size.

If the current goes above the maximum rating, the wiring could

overheat, causing serious damage to your equipment.

• Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.
