Media Converter User’s Guide
First Edition, December 2003
1. Overview
MOXA ME51 Media Converter is a standalone physical layer
device that converts between 10/100BaseT(X) and
100BaseFX segments of the same network. The converter
supports Link Fault Pass-through (LFP) for easily tracing
network link failures, and the LFP function enhances the
integrity and conformity of TP-Fiber linking to make the
network easier to maintain. ME51 is powered by an external
power adapter or USB port on the hosting device (e.g., PC
or NB).
2. Package Checklist
MOXA ME51 products are shipped with the following items:
• 1 ME51-M-SC, 1 ME51-M-ST or 1 ME-S-SC
• AC-DC Power Adapter
• ME51 User's Manual
Please notify your sales representative immediately if any of
the above items is missing or damaged
3. Model Description
ME51-M-SC: 10/100BaseT(X) to 100BaseFX media
converter; multi mode, SC type fiber
connection
ME51-M-ST: 10/100BaseT(X) to 100BaseFX media
converter; multi mode, ST type fiber
connection
ME51-S-SC: 10/100BaseT(X) to 100BaseFX media
converter; single mode, SC type fiber
connection

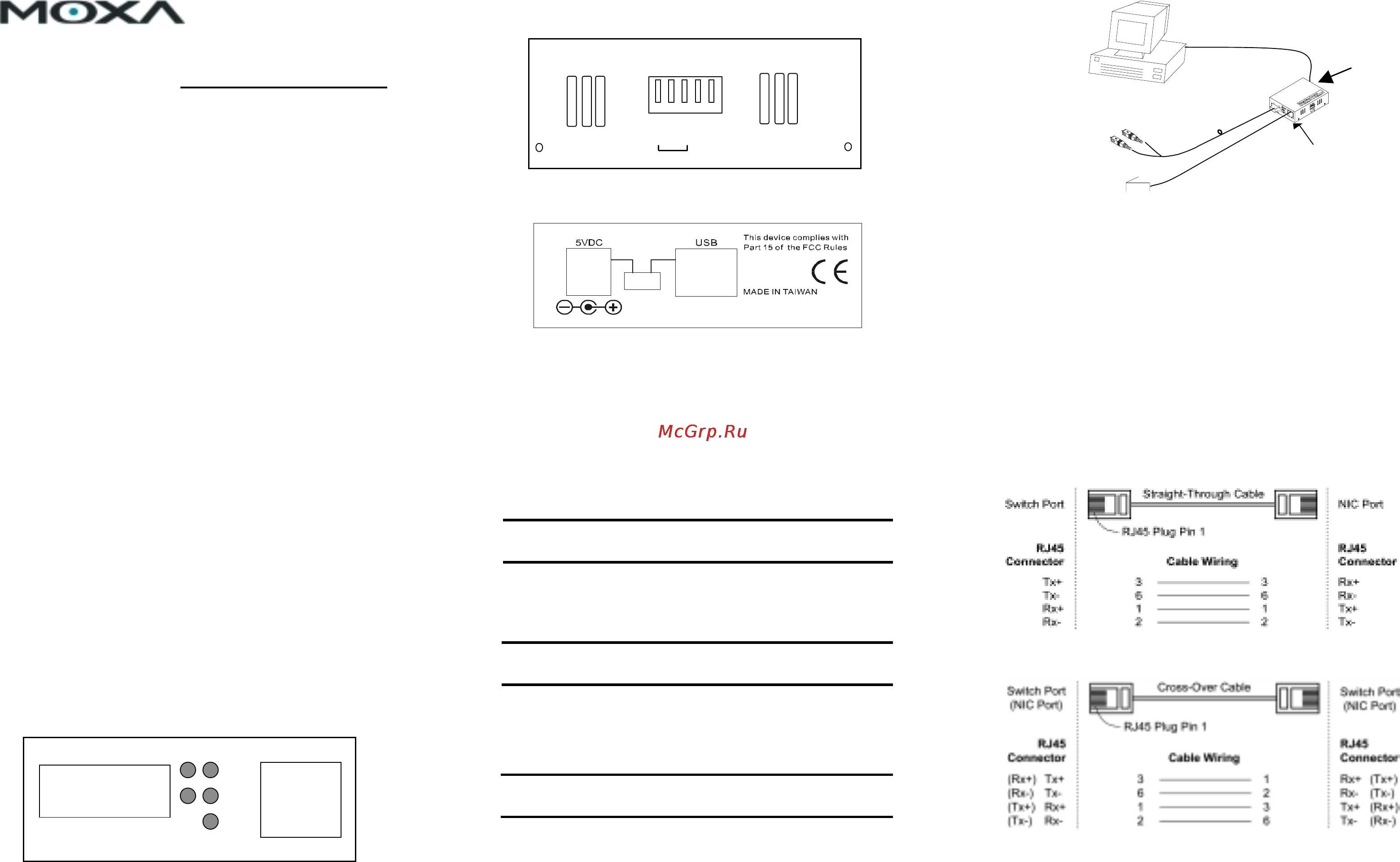

Panel Layout of ME51 series
• Front Panel View
• Side Panel View
• Rear Panel View
4. Wiring the Power Inputs
Using ME51 with the AC-DC Power Adapter
1. Use DIP switch settings to enable power through the
AC-DC Power Adapter (refer to Part 6. for DIP switch
settings).
2. Verify that the AC-DC adapter conforms to your country’s
AC power requirements and then insert the power plug.
3. Connect ME51 to the network.
Note:
Wear a grounding device to safeguard against
injury due to electrostatic discharge.
ME51 with Power over USB
1. Use DIP switch settings to enable power from the USB
port (refer to Part 6. for DIP switch settings).
Note:
Please ensure that the DIP switch is positioned
on the USB side of the slider.
2. Install the USB cable. Plug the type A connector in the
PC’s USB port and the type B connector in the ME51’s
USB port (see Fig. 1).
3. Connect ME51 to the network.
Warning: Make sure that the PC’s power turned on.
Otherwise, the ME51 will not receive power.
Fig.1 : ME51 with USB power sourece(Type B-to-Type A
Plug) and FX/TP connection
5. Communication Connection
ME51 models have one 10/100BaseT(X) Ethernet port, and
one 100 BaseFX (SC or ST type connector) fiber port.
10/100BaseT(X) Ethernet Port Connection
ME51 supports auto MDI/MDI-X. Below we show pinouts for
both MDI (NIC-type) ports and MDI-X (HUB/Switch-type)
ports, and also show cable wiring diagrams for
straight-through and cross-over Ethernet cables.
RJ45(8-pin) to RJ45(8-pin) Straight-Through Cable Wiring
RJ45(8-pin) to RJ45(8-pin) Cross-Over Cable Wiring
FDX
/COL
LNK
/ACT
1
00
FX TP
TX RX
Bridge Media Converter
10/100Base-TX to 100Base-FX
PWR
FD
X
LFP
FD
X
100
A
UTO
HDX-FX
LFP DIS
HDX
10
FORCE
1 2 3 4 5
TP
RJ-45 Jack
Cat. 5 Cable
USB Cable
Fiber Optic
USB A Type Jack
10/100 Ethernet
Switch/NIC
USB B Type Jack
—1— —3— —2—
100FX Fiber
Network
