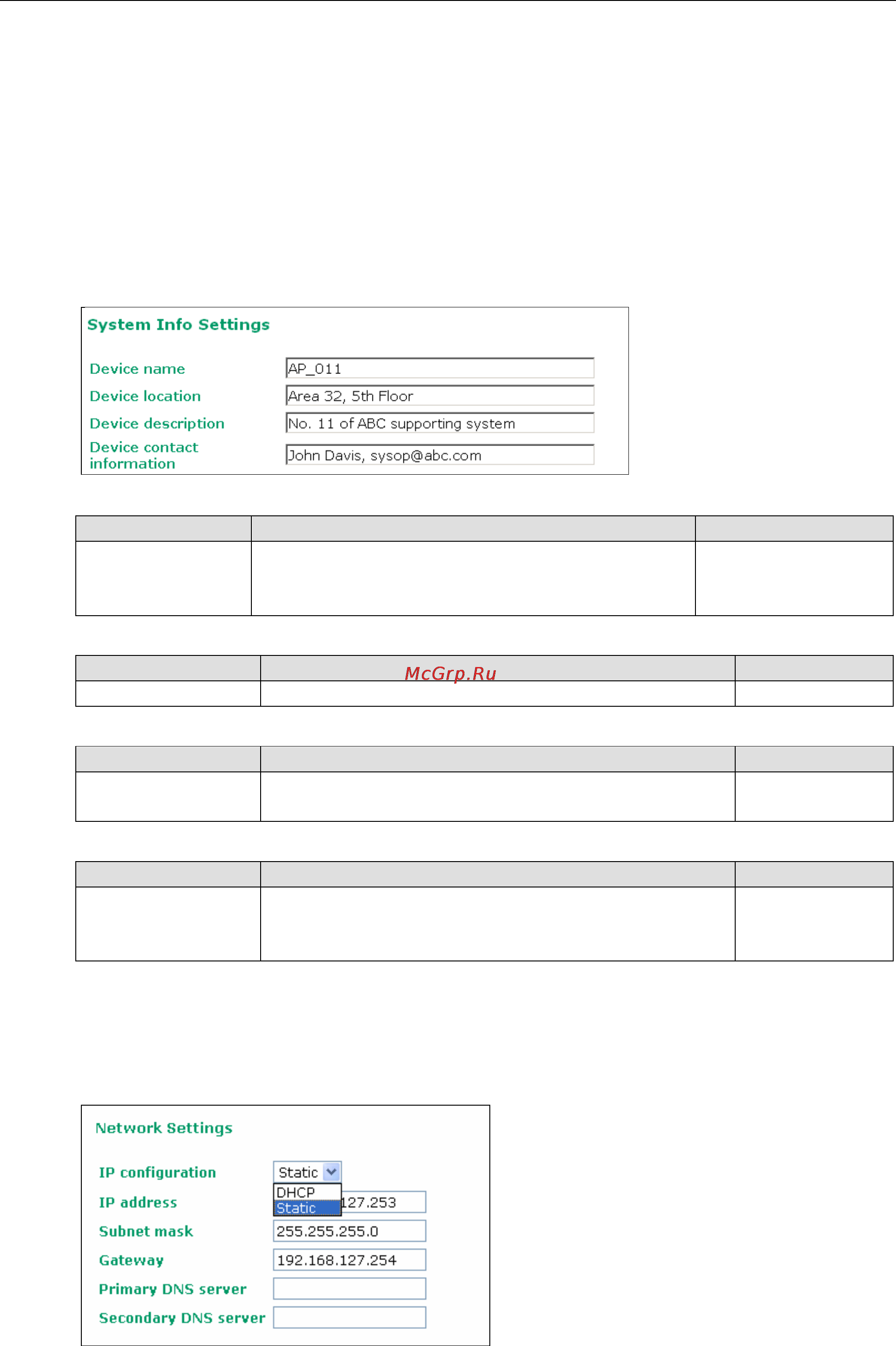

AWK-1121/1127 Web Console Configuration
3-4
Basic Settings
The Basic Settings group includes the most commonly used settings required by administrators to maintain and
control the AWK-1121/1127.
System Info Settings
System Info labels (especially Device name) are displayed and included on the Overview page, in SNMP
information, and in alarm emails. Giving descriptive, unique labels to items under System Info makes it easier
to identify the different AWK-1121/1127 units connected to your network.
Device name
Setting Description Factory Default
Max. 31 of characters This option is useful for specifying the role or application of
different AWK-1121/1127 units.
AWK-1121/1127
_<Serial
No. of this
AWK-1121/1127>
Device location
Setting Description Factory Default
Max. of 31 characters Specifies the location of different AWK-1121/1127 units. None
Device description
Setting Description Factory Default
Max. of 31 characters Use this space to record a more detailed description of the
AWK-1121/1127
None
Device contact information
Setting Description Factory Default
Max. of 31 characters Provides
information about whom to contact in order to resolve
problems. Use this space to record contact information of the
person responsible for maintaining this AWK-1121/1127.
None
Network Settings
The Network Settings configuration panel allows you to modify the usual TCP/IP network parameters. An
explanation of each configuration item is given below.
