AWK-1121/1127 Introduction
1-5
Functional Design

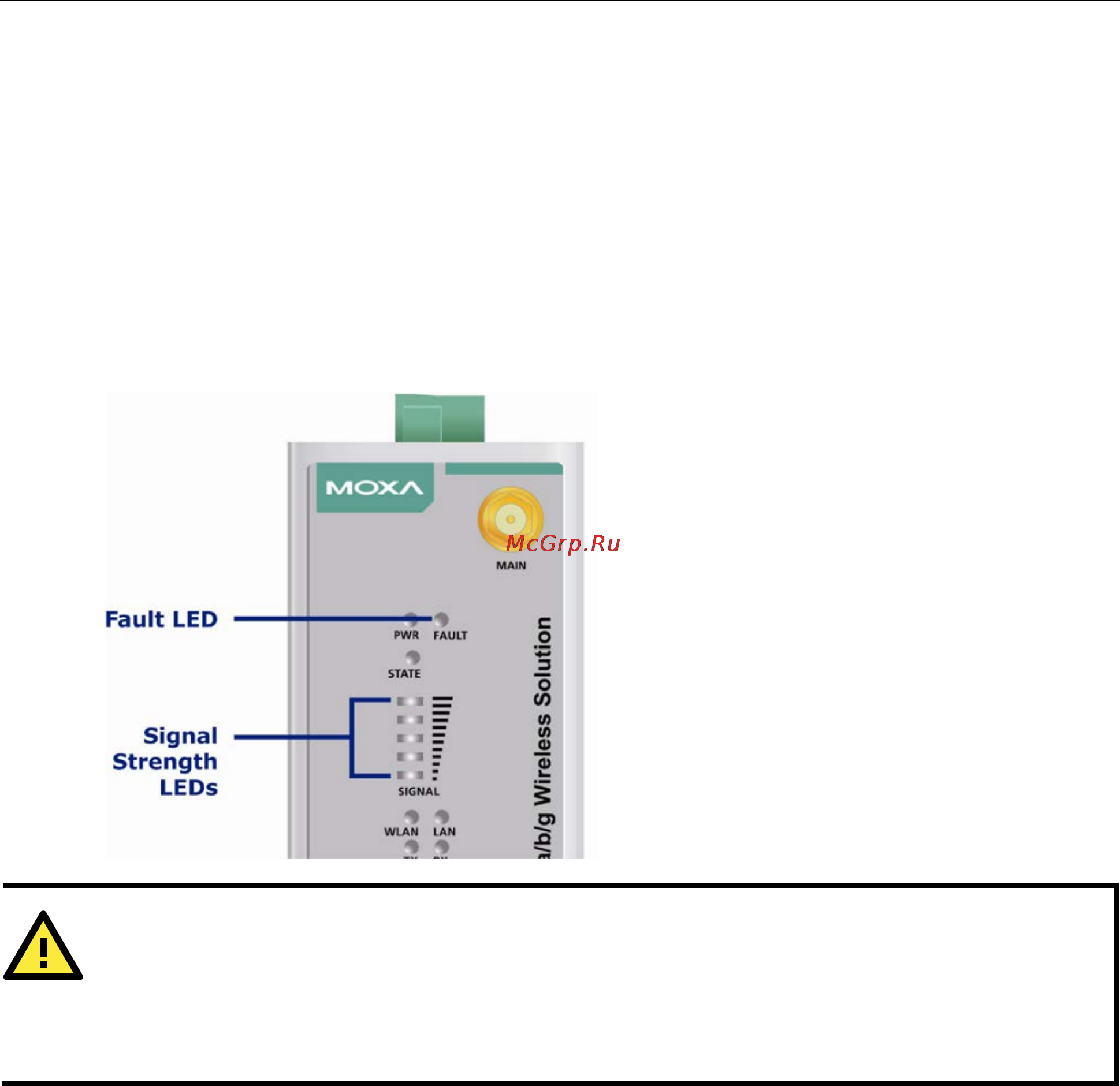

LED Indicators
The LEDs on the front panel of the AWK-1121/1127 provide a quick and easy means of determining the current
operational status and wireless settings.
The FAULT LED indicates system failures and user-configured events. If the AWK-1121/1127 cannot retrieve
the IP address from a DHCP server or if there is an IP conflict, the FAULT LED will blink at one second intervals.
The SIGNAL LEDs indicate signal strength.
ATTENTION
T
he FAULT, SIGNAL, STATE and WLAN LEDs lighting up simultaneously and blinking at one second
interval
s indicates that the system has failed to boot. This may be due to improper operation or an
uncontrollable
factor, such as an unexpected shutdown during firmware update. Instructions on how to
recover the
firmware can be found in Appendix B in the “Firmware Recovery” section.
Beeper
The beeper emits two short beeps when the system is ready.
