• 'Left & Right' stereo from a single speaker (figure 1): When sitting in the main

listening area, sound should be spacious and clear.

• Multi-speaker Distributed multi-speaker 'Left & Right' stereo from a single speaker

(figure 3): Walk around your entire area. Adjust position of speakers for uniform

sound coverage.

• Two speaker traditional 2-channel stereo (figure 2) and distributed multi-

speaker traditional 2-channel stereo (figure 4): When sitting in the main listening

area, sound should be spacious and clear. Fine-tune placement to achieve optimal

imaging. This may involve moving speakers a small amount in one direction or the

other, or turning speakers slightly to point toward the listening area.

If a speaker is not working correctly, refer to the “Troubleshooting” on page 10 of this

manual, otherwise finalize connections.

NOTE: Connect wires with wire nuts (not included) following wire nut manufacturer’s

instructions. Fill nuts with waterproof silicone sealant (not included) to prevent

deterioration over time — do this only after testing speaker placement.

Connecting 2-Channels of Amplification (Left & Right) to a Single Speaker (figure 5)

In this connection method, 2-channels of amplification (left-channel and right-channel)

are attached to a single speaker to achieve stereo sound.

1. Connect one speaker channel at a time to your receiver/amplifier. Connect the

right (+) amplifier terminal to the right red (+) speaker input wire and the right (–)

amplifier terminal to the right black (–) speaker input wire.

2. Connect the left (+) amplifier terminal to the left red (+) speaker input wire and the

left (–) amplifier terminal to the left black (–) speaker input wire.

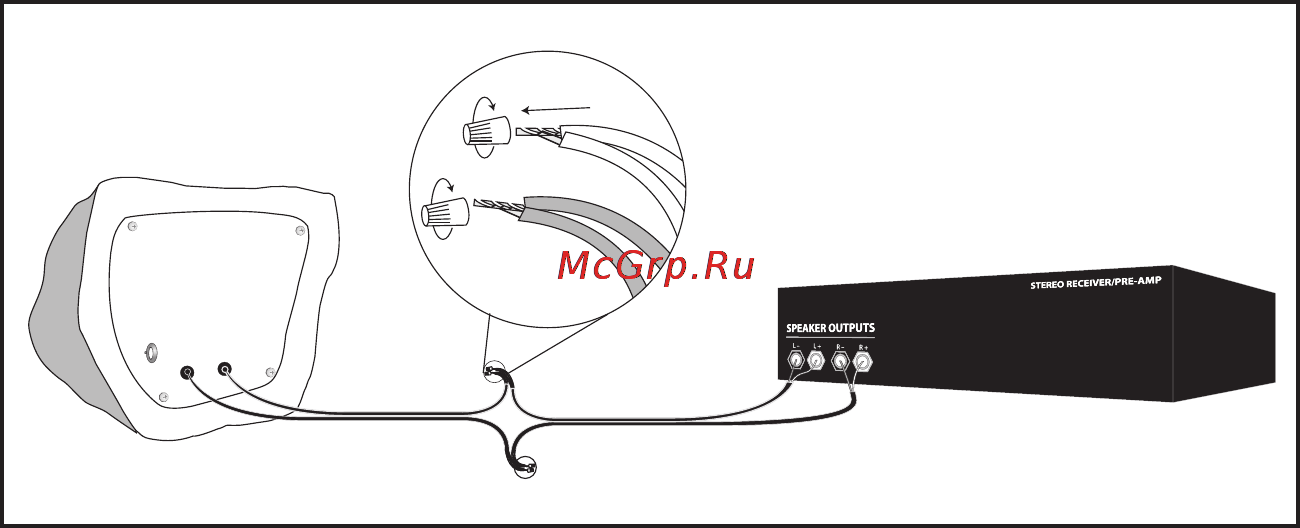

Figure 5. Connecting 2-Channels of Amplification (Left & Right) to a Single Speaker
