ANT-WDB-ARM-02

Dual-band omni-directional 2.4 and 5 GHz indoor rubber

duck antenna

Speciﬁcations

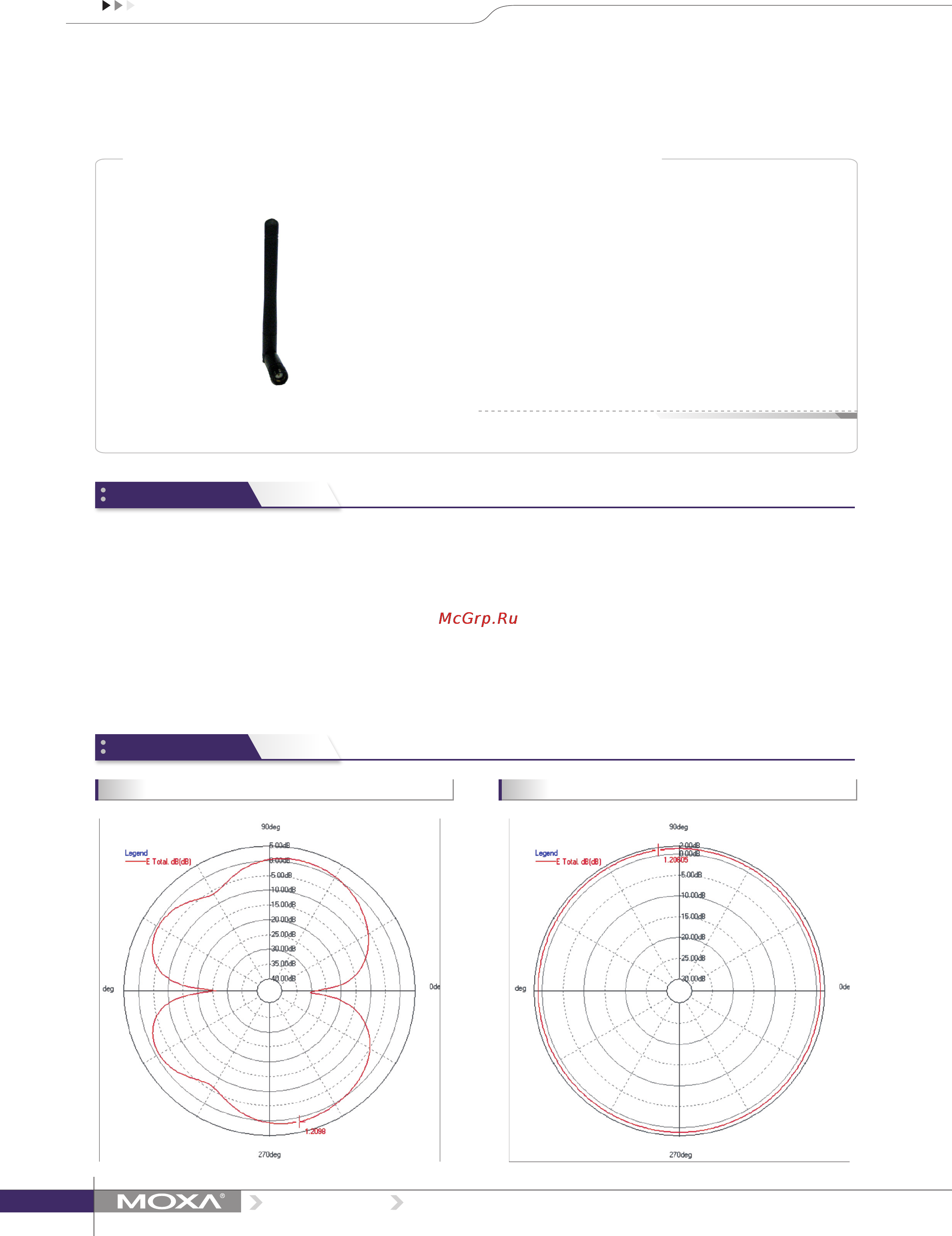

Field Patterns

Antenna Characteristics

Frequency: 2.4 to 2.5 and 5.2 to 5.8GHz

Anntenna Type: Omni-directional

Typical Antenna Gain: 2 dBi at 2.4 GHz, 2 dBi at 5 GHz

Connector: RP-SMA (male)

Impedance: 50 ohms

Polarization: Linear, vertical

HPBW/horizontal: 360°

HPBW/vertical: 80°

V.S.W.R.: 2.0 max

Physical Characteristics

Weight: 10 g

Dimensions: Length=108 mm

Radome Color: Black

Radome Material: Plastic

Installation: Straight mount

Environmental Limits

Operating Temperature: -40 to 80°C (-40 to 176°F)

Storage Temperature: -40 to 80°C (-40 to 176°F)

Ambient Relative Humidity: 5 to 95% (30°C, non-condensing)

Warranty

Warranty Period: 1 year

Details: See www.moxa.com/warranty

E-plane H-plane

› Small size for compact ﬁt

› Lightweight for portable deployment

› Tilt and swivel design

› Flexible installation

› RP-SMA connector (male) supported
