Multiport Serial Boards

© Moxa Inc. All Rights Reserved. Updated Apr. 15, 2016. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.

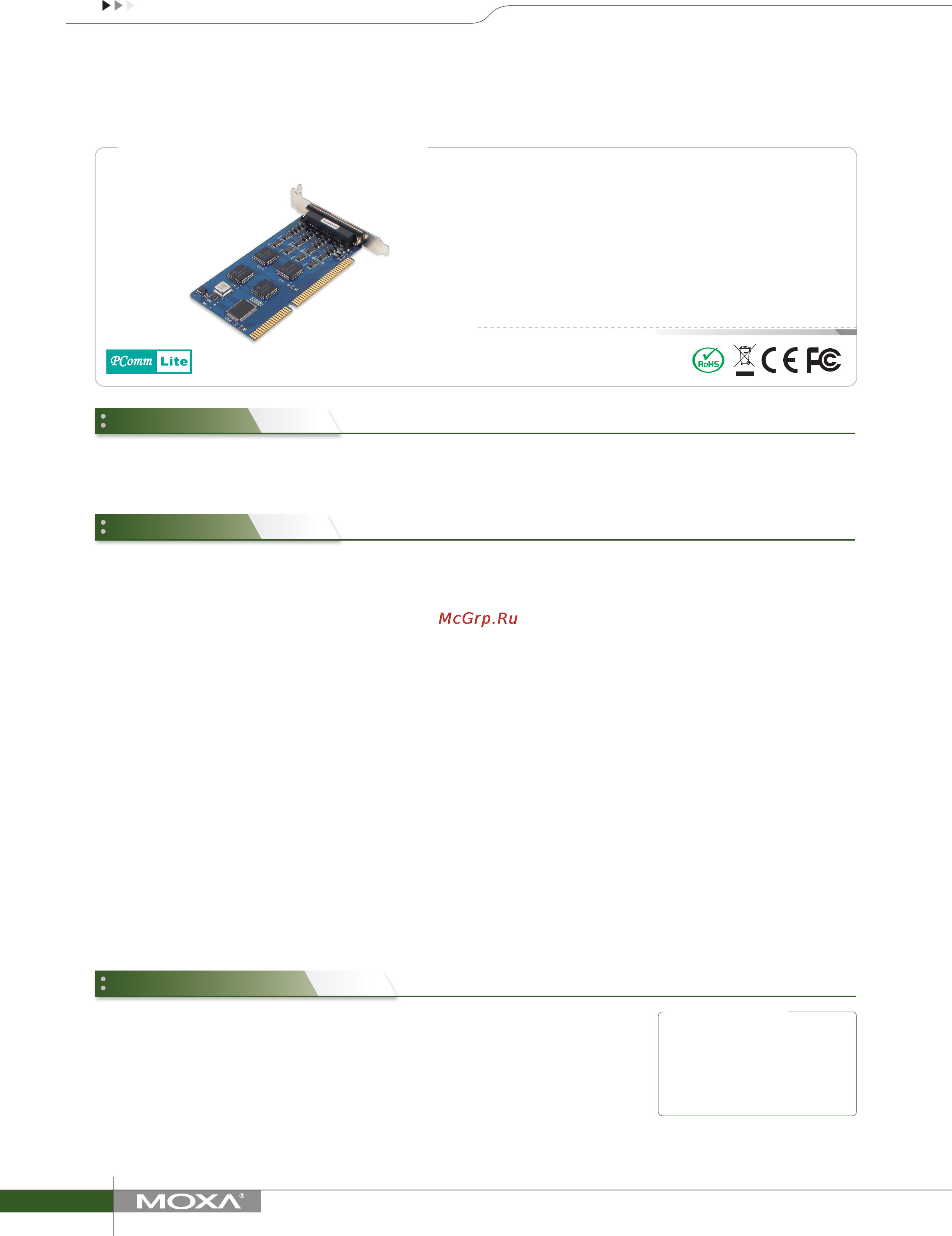

C104H/HS

The 4-port C104H/HS ISA boards offer users an economical, high-

performance multiport serial communication solution for connecting

terminals, modems, printers, data acquisition equipment, and other

serial devices to a PC. The boards are a top choice of industrial

automation engineers and system integrators, and they support many

different operating systems, including Windows, Linux, and even Unix.

In addition, each of the 4 RS-232 ports supports a superfast 921.6

kbps baudrate.

› Easy configuration, without switches or jumpers

Hardware

Comm. Controller: 16C550C or compatible x 4

Bus: 16-bit ISA

Connector: DB37 female

Serial Interface

Number of Ports: 4

Serial Standards: RS-232

Max. No. of Boards per PC: 4

Performance

IRQ: 2 (9), 3, 4, 5, 7, 10 (default), 11, 12, 15

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Physical Characteristics

Dimensions: 83 x 157 mm (3.27 x 6.18 in)

Driver Support

Windows: Windows 95/98/ME/NT/2000, Windows XP/2003/

Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64),

Windows 3.x, DOS, Windows Embedded CE 5.0/6.0, Windows XP

Embedded

Storage Temperature: -20 to 85°C (-4 to 185°F)

Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

EMC: EN 55022/24

EMI: CISPR 22, FCC Part 15B Class B

EMS:

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV

IEC 61000-4-5 Surge: Power: 2 kV

Power Requirements

Input Current: 100 mA @ +5 VDC; 100 mA @ +12 VDC; 60 mA @ -12

VDC

Warranty

Warranty Period: 5 years

Details: See www.moxa.com/warranty

Available Models

C104H: 4-port RS-232 ISA serial board

C104H-DB9M: 4-port RS-232 ISA serial board (CBL-M37M9x4-30 cable included)

C104H-DB25M: 4-port RS-232 ISA serial board (CBL-M37M25x4-30 cable included)

Package Checklist

• 1 C104H or C104HS board

• 1 connection cable (optional)

• Documentation and software CD

• Quick installation guide (printed)

• Warranty card
