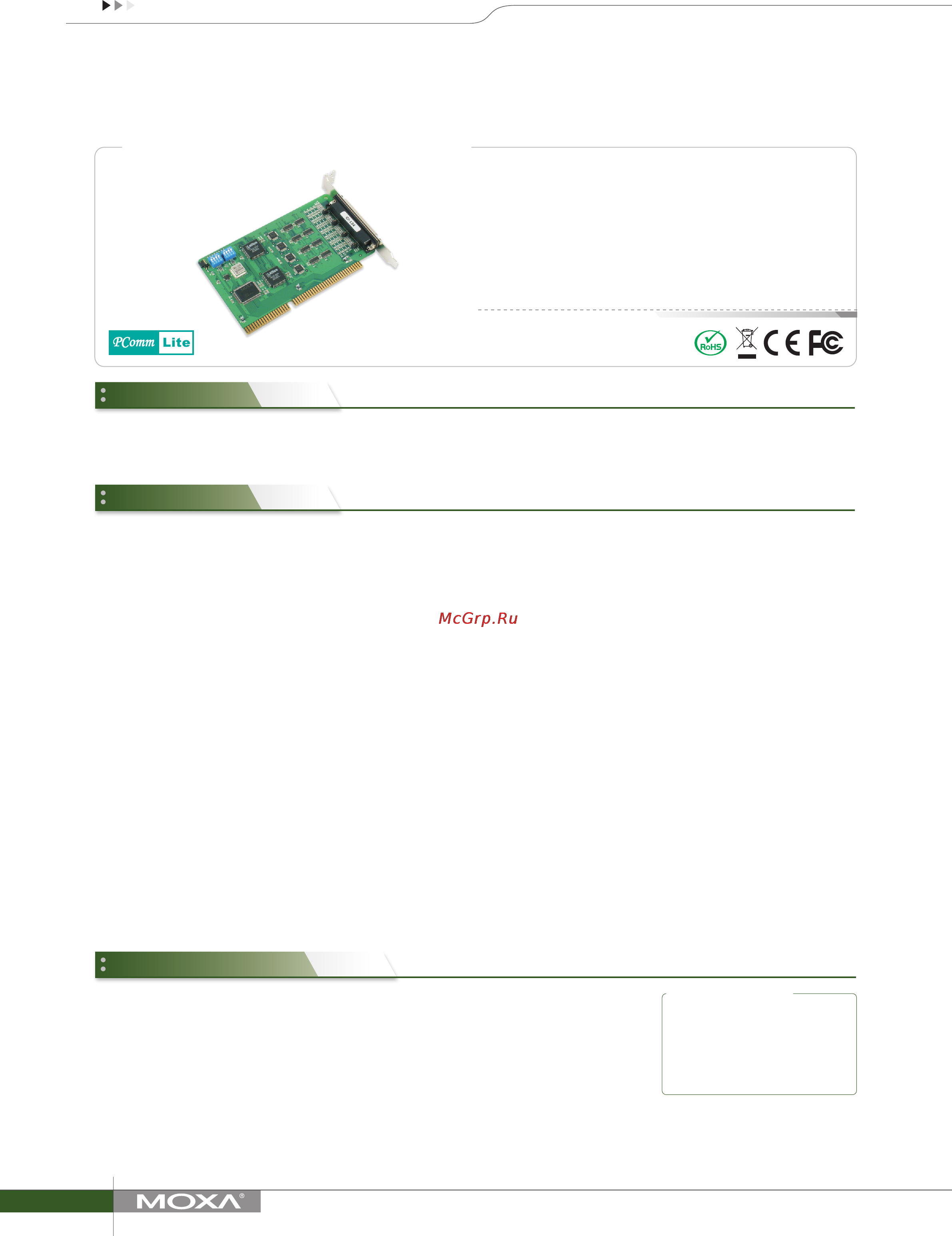

Multiport Serial Boards

© Moxa Inc. All Rights Reserved. Updated Apr. 15, 2016. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.

The CI-134 series ISA boards come with 4 independent RS-422/485

serial ports for connecting data acquisition equipment and other

serial devices to a PC. Connect your devices over longer distances—

up to 1.2 km (4000 ft)—and ensure greater reliability in industrial

environments with on-board surge protection and electrical isolation

(available with some models). Enjoy greater versatility by using

point-to-point full duplex connections, or set up a half duplex RS-485

multi-drop network.

4-port RS-422/485 ISA serial boards

CI-134 Series

Available Models

CI-134-DB9M: 4-port RS-422/485 ISA serial board (CBL-M37M9x4-30 cable included)

CI-134I-DB9M: 4-port RS-422/485 ISA serial board with electrical isolation (CBL-M37M9x4-30 cable included)

CI-134IS-DB9M: 4-port RS-422/485 ISA serial board with electrical isolation and surge protection (CBL-

M37M9x4-30 cable included)

CI-134 w/o Cable: 4-port RS-422/485 ISA serial board (CBL-M37M25x4-30 cable included)

CI-134I w/o Cable: 4-port RS-422/485 ISA serial board with electrical isolation (CBL-M37M25x4-30 cable

included)

CI-134IS w/o Cable: 4-port RS-422/485 ISA serial board with electrical isolation and surge protection

(CBL-M37M25x4-30 cable included)

Package Checklist

• Quick installation guide (printed)

• Warranty card

Hardware

Comm. Controller: 16C550C or compatible x 4

Bus: 16-bit ISA

Connector: DB37 female

Serial Interface

Number of Ports: 4

Serial Standards: RS-422/485

Max. No. of Boards per PC: 4

Serial Communication Parameters

Data Bits: 5, 6, 7, 8

Stop Bits: 1, 1.5, 2

Parity: None, Even, Odd, Space, Mark

I/O Address: 0x0000-0xFFFF (default = 0x180)

IRQ: 2 (9), 3, 4, 5, 7, 10 (default), 11, 12, 15

Serial Signals

RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), RTS+(B), RTS-(A),

CTS+(B), CTS-(A), GND

RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND

Driver Support

Windows: Windows 95/98/ME/NT/2000, Windows XP/2003/

Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64),

Windows 3.x, DOS, Windows Embedded CE 5.0/6.0, Windows XP

Embedded

Linux: Linux 2.4.x, 2.6.x, 3.x

Unix-like Systems: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10,

FreeBSD

EMC: EN 55022/24

EMI: CISPR 22, FCC Part 15B Class B

EMS:

IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m

IEC 61000-4-4 EFT: Signal: 2 kV

MTBF (mean time between failures)

Time: 424,655 hrs

Standard: Telcordia (Bellcore) TR/SR

Power Requirements

Details: See www.moxa.com/warranty
