PCI Express Boards Software Installation

3-35

8. If you use the CP-118EL-A, CP-114EL, CP-114EL-I, CP-132EL, CP-132EL-I, select Interface (RS-232,

RS-422, RS-485-2W, or RS-485-4W) and Termination Resistor (120Ω, Enable, or Disable) for

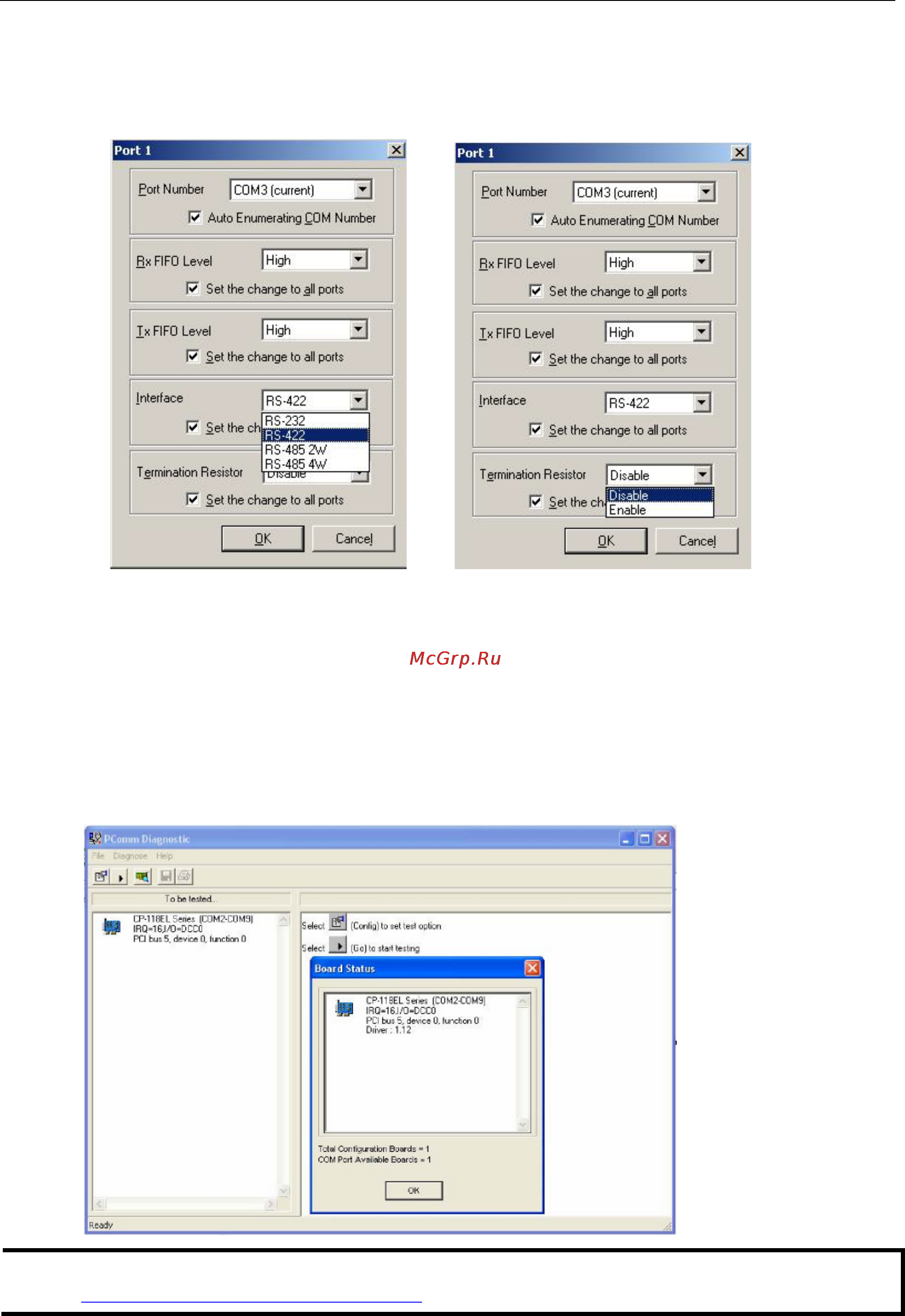

configuration. For illustration purposes, The CP-114EL is used. The following figure shows the settings for

configuring the port for RS-422 and disabling Termination Resistor.

9. Click OK to save the port settings and then click OK in the Property window to finish the port settings

procedure.

Using Moxa PComm Utility

The PComm Diagnostic program is a useful tool for checking the status of Moxa’s multiport boards. The

program can be used to test internal and external IRQ, TxD/RxD, UART, CTS/RTS, DTR/DSR, etc. Use this

program to ensure that your Moxa boards and ports are working properly.

To start the program, click Start



Programs



PComm Lite 2000



PComm Diagnostic.

NOTE

You can download the PComm Lite software for free from Moxa’s website at

www.moxa.com/support/free_downloads.htm
