— 4 — — 5 — — 6 —

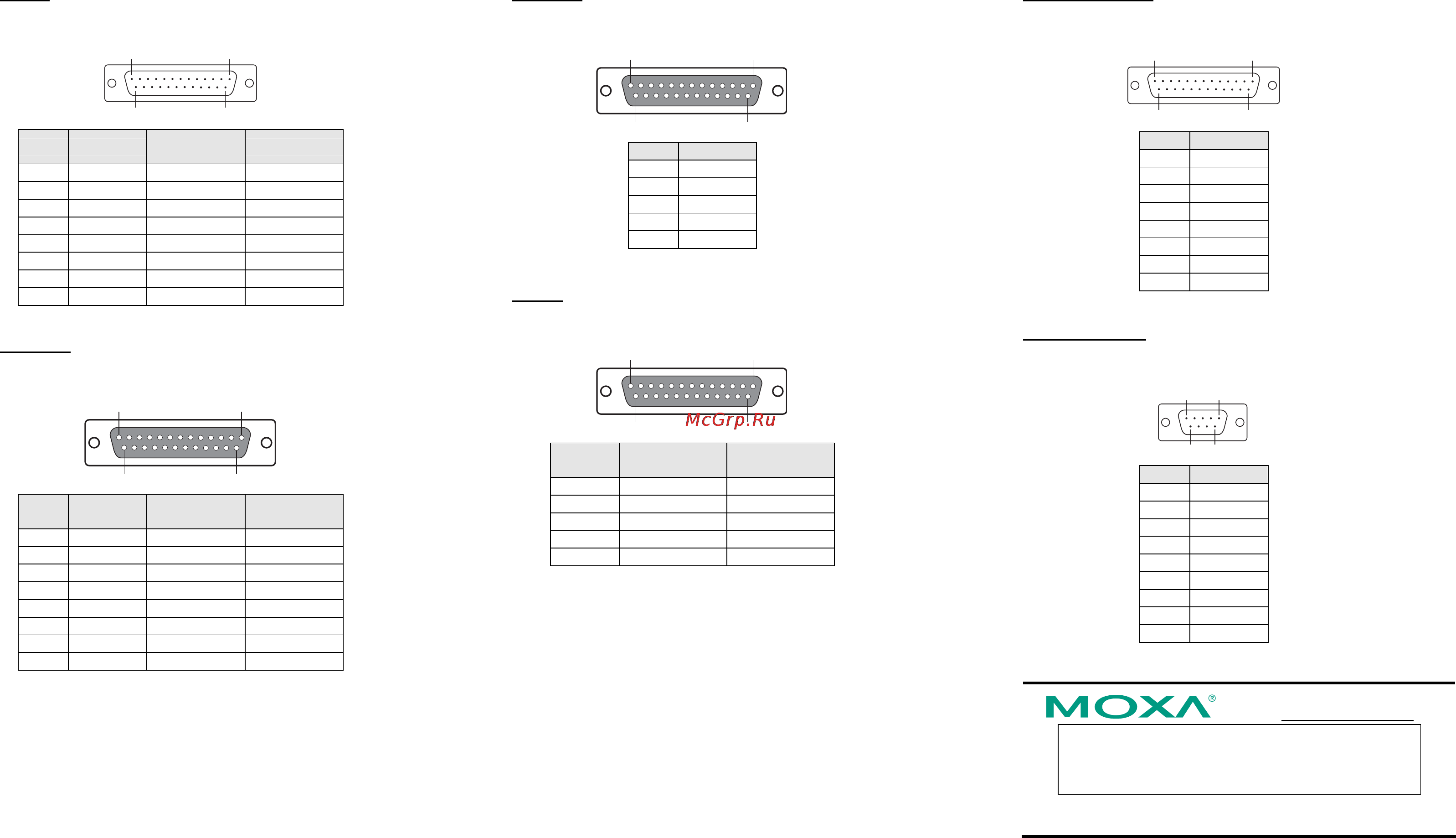

CP-118EL-A and CP-168EL-A
Opt8B+
Male DB25
1
14
13
25
Pin RS-232
RS-422/
4-wire RS-485
2-wire RS-485
2 TxD RxD+(B) Data+(B)
3 RxD TxD+(B) ---
4 RTS --- ---
5 CTS --- ---
6 DSR --- ---
7 GND GND GND
8 DCD TxD-(A) ---
20 DTR RxD-(A) Data-(A)
Opt8A+/S+
Female DB25
13 1
25 14
Pin RS-232
RS-422/
4-wire RS-485
2-wire RS-485
2 RxD TxD+(B) ---
3 TxD RxD+(B) Data+(B)
4 CTS --- ---
5 RTS --- ---
6 DTR RxD-(A) Data-(A)
7 GND GND GND
8 DCD TxD-(A) ---
20 DSR --- ---
CP-168EL-A
Opt8F+/Z+
Female DB25
13 1
25 14
Pin RS-422
2 RxD+(B)
3 TxD+(B)
14 RxD-(A)
16 TxD-(A)
7 GND
Opt8K+
Female DB25
13 1
25 14
Pin
RS-422/
4-wire RS-485
2-wire RS-485
2 RxD+(B) Data+(B)
3 TxD+(B) ---
14 RxD-(A) Data-(A)
16 TxD-(A) ---
7 GND GND
CP-104EL-A
CBL-M44M25x4-50:
Male DB44 to male DB25 x 4, 50 CM
Male DB25
1
14
13
25
Pin RS-232
2 TxD
3 RxD
4 RTS
5 CTS
6 DSR
7 GND
8 DCD
20 DTR
CBL-M44M9x4-50:
Male DB44 to male DB9 x 4, 50 CM
Male DB9
15
69
Pin RS-232
1 DCD
2 RxD
3 TxD
4 DTR
5 GND
6 DTS
7 RTS
8 CTS
9 ---
Click here for online support:
www.moxa.com/support
The Americas: +1-714-528-6777 (toll-free: 1-888-669-2872)
Europe: +49-89-3 70 03 99-0
Asia-Pacific: +886-2-8919-1230
China: +86-21-5258-9955 (toll-free: 800-820-5036)
© 2009 Moxa Inc. All rights reserved.
Reproduction without permission is prohibited.
