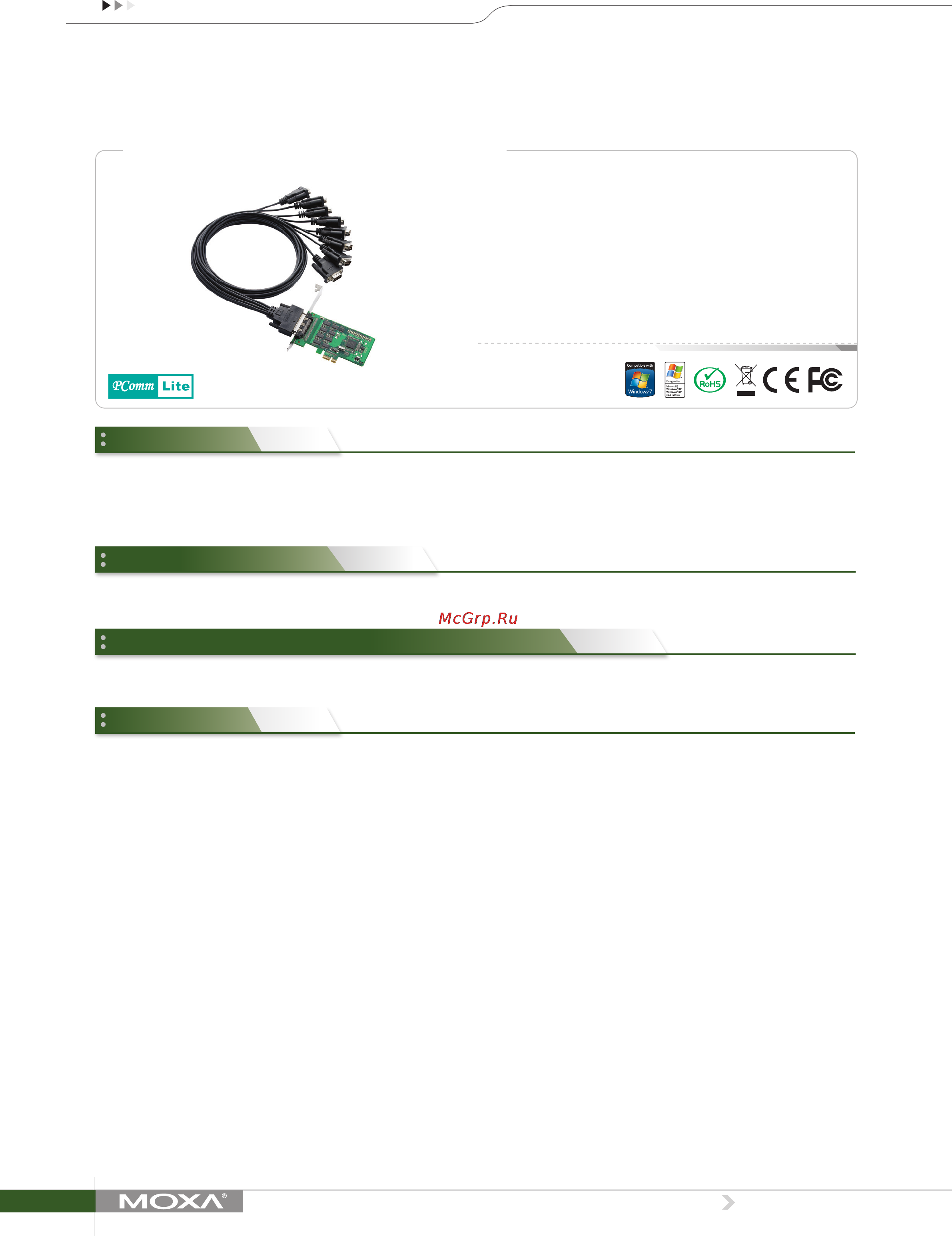

CP-168EL-A
8-port RS-232 PCI Express serial board
The CP-168EL-A is a smart, 8-port PCI Express board designed for
POS and ATM applications. It is a top choice of industrial automation
engineers and system integrators, and supports many different
operating systems, including Windows, Linux, and even Unix. In
The CP-168EL-A is a low-profile board that is compatible with any PCI
Express slot. The board requires only a 3.3 VDC power supply, which
Moxa continues to support a wide variety of operating systems, and
the CP-168EL-A board is no exception. Reliable Windows and Linux/
addition, each of the board’s 8 RS-232 serial ports supports a super
fast 921.6 kbps baudrate. The CP-168EL-A provides full modem
control signals to ensure compatibility with a wide range of serial
peripherals, and its PCI Express “x1” classification allows it to be
installed in any PCI Express slot.
means that the board fits any host computer, ranging from shoebox to
standard-sized PCs.
Unix drivers are provided for all Moxa boards, and other operating
systems, such as WEPOS, are also supported for embedded
integration.
› PCI Express x1 compliant
› 921.6 kbps maximum baudrate for super fast data transmission
› 128-byte FIFO and on-chip H/W, S/W flow control
› Choose from a wide range of connection cables and boxes
› Low profile form factor fits small-sized PCs
› Drivers provided for a broad selection of operating systems,
including the latest Windows and Linux
Hardware
Comm. Controller: 16C550C compatible
Bus: PCI Express x1
Connector: VHDCI 68
Serial Interface
Number of Ports: 8
Serial Standards: RS-232
Max. No. of Boards per PC: 4
Performance
Baudrate: 50 bps to 921.6 kbps
Serial Communication Parameters
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Physical Characteristics
Dimensions: 64.42 x 102 mm (2.54 x 4.02 in)
Driver Support
Windows: Windows 95/98/ME/NT/2000, Windows XP/2003/
Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2
(x64), DOS
Linux: Linux 2.4.x, 2.6.x, 3.x
Unix-like Systems: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10
Note: Please refer to Moxa’s website for the latest driver support information.
Environmental Limits
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature: -20 to 85°C (-4 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
EMC: EN 55022/24
EMI: CISPR 22, FCC Part 15B Class B
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
MTBF (mean time between failures)
Time: 2,351,336 hrs
Standard: Telcordia (Bellcore) TR/SR
Power Requirements
Input Current: 1,225 mA @ 3.3 VDC
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
Specifications
Overview
Smaller Form Factor
Drivers Provided for Windows, Linux, and Unix
Multiport Serial Boards
1
www.moxa.com
