Moxa CP-168EL-A [2/2] Ordering information

Moxa CP-168EL-A [2/2] Ordering information

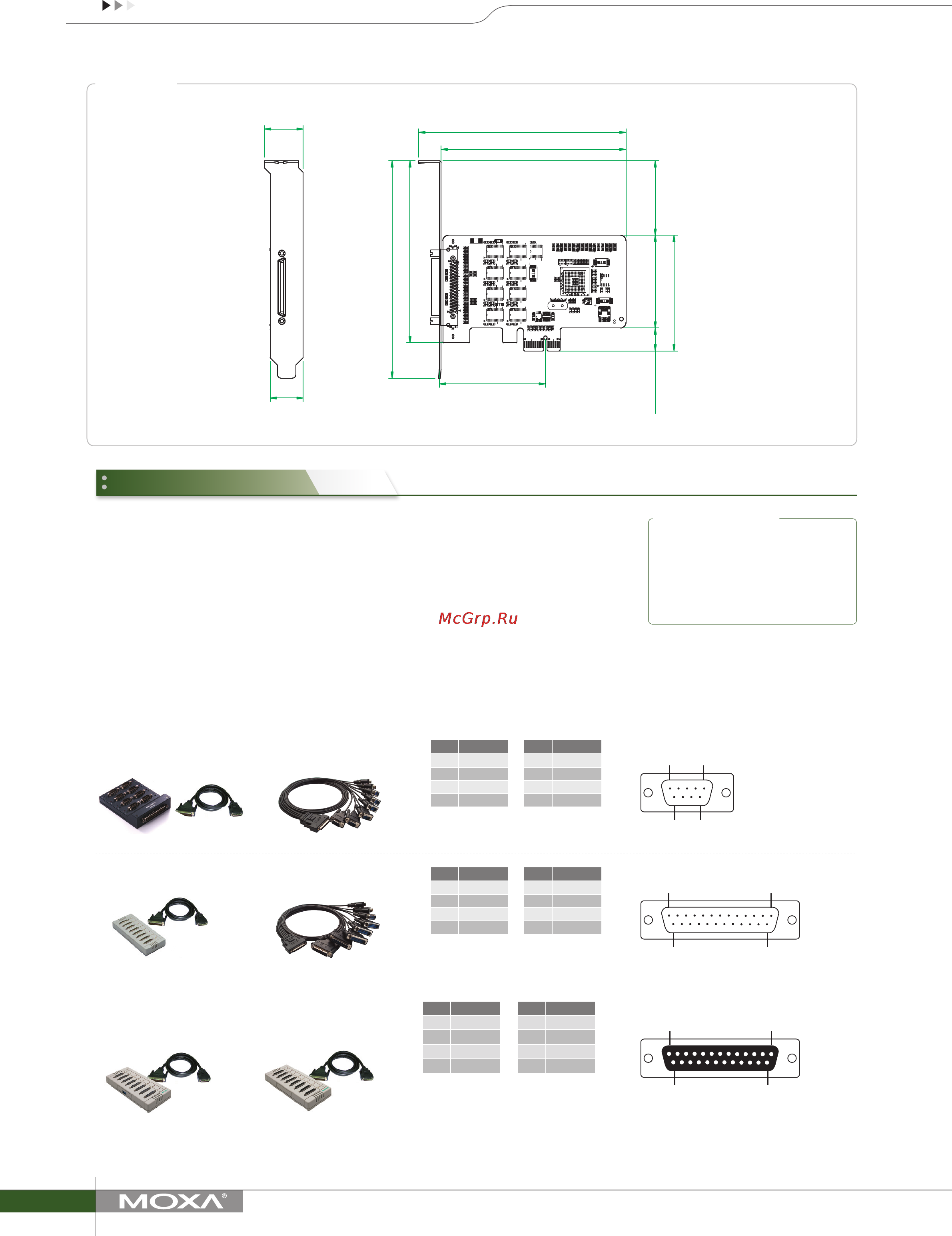

Dimensions
Unit: mm (inch)
101.38 (3.991)
121.02 (4.765)
102.94 (4.053)
51.66 (2.034) 41.46 (1.632)
12.75 (0.502)
59.1 (2.327)
115.37 (4.542)
21.59 (0.850)
18.42 (0.725)
64.41 (2.536)
PIN RS-232
1 DCD
2 RxD
3 TxD
4 DTR
PIN RS-232
2 TxD
3 RxD
4 RTS
5 CTS
PIN RS-232
5 GND
6 DSR
7 RTS
8 CTS
PIN RS-232
6 DSR
7 GND
8 DCD
20 DTR
OPT8-M9+
DB9 male x 8 (150 cm cable)
OPT8B+
DB25 male x 8 (150 cm cable)
CBL-M68M9x8-100
DB9 male x 8 (100 cm cable)
CBL-M68M25x8-100
DB25 male x 8 (100 cm cable)
PIN RS-232
2 RxD
3 TxD
4 CTS
5 RTS
PIN RS-232
6 DTR
7 GND
8 DCD
20 DSR
OPT8A+
DB25 female x 8, 150 cm cable
OPT8S+
DB25 female x 8 (150 cm cable)
DB9 male
DB25 male
DB25 female
Available Models
CP-168EL-A: 8-port RS-232 low profile PCI Express x1 serial board
Connection Options (can be purchased separately)
Low Profile Bracket: Bracket for VHDCI connector (1490000008000)
CBL-M68M9x8-100: SCSI VHDCI 68 to 8 x DB9-M cable, 100 cm
CBL-M68M25x8-100: SCSI VHDCI 68 to 8 x DB25-M cable, 100 cm
Optional Connectors (choose one per board)
OPT8-M9+: VHDCI 68 to 8 x DB9-M connection box
OPT8B+: VHDCI 68 to 8 x DB25-M connection box
OPT8A+: VHDCI 68 to 8 x DB25-F connection box
OPT8-RJ45+: VHDCI 68 to 8 x RJ45 (8-pin) connection box
OPT8S+: VHDCI 68 to 8 x DB25-F connection box w/ surge protection
Package Checklist
• 1 CP-168EL-A board
• Low profile bracket
• Documentation and software CD
• Quick installation guide (printed)
• Warranty card
Ordering Information
13
1
25 14
1
13
14 25
1
5
6 9
Multiport Serial Boards
2
© Moxa Inc. All rights reserved. Updated Apr. 20, 2016. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.
