2
Multiport Serial Boards
© Moxa Inc. All Rights Reserved. Updated Mar. 28, 2014. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.
PIN RS-232
1 DCD
2 RxD
3 TxD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
CBL-M25M9x2-50
DB25 male to DB9 male x 2
(50 cm cable)
DB9 male
Available Models
CP-102U: 2-port RS-232 Universal PCI serial board, 0 to 55°C operating temperature
CP-102UL-DB9M: 2-port RS-232 low profile Universal PCI serial board, 0 to 55°C operating
temperature (includes DB9 male cable)
CP-102U-T: 2-port RS-232 Universal PCI serial board, -40 to 85°C operating temperature
CP-102UL-T: 2-port RS-232 low profile Universal PCI serial board, -40 to 85°C operating
temperature
Connection Options (can be purchased separately)
Package Checklist
• 1 CP-102U or CP-102UL board
• Low profile bracket (CP-102UL only)
• Documentation and software CD
• Quick installation guide (printed)
• Warranty card
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Operating Systems
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows
XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012
R2 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP
Embedded
Fixed TTY Drivers: QNX 6, SCO OpenServer, UnixWare 7, Solaris 10,
FreeBSD
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x
Note: Please refer to Moxa’s website for the latest driver support information.
Physical Characteristics
Dimensions:
CP-102U: 80 x 120 mm (3.15 x 4.72 in)
CP-102UL: 64.5 x 120 mm (2.53 x 4.72 in)
Environmental Limits
Operating Temperature:
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m
Note: Please contact Moxa if you require products guaranteed to function
properly at higher altitudes.
Standards and Certifications
EMC: CE, FCC
EMI: EN 55022, FCC Part 15 Subpart B Class B
EMS: EN 55024, IEC 61000-4-2, IEC 61000-4-3
Green Product: RoHS, CRoHS, WEEE
MTBF (mean time between failures)
Time: 219,971 hrs
Database: Telcordia (Bellcore), GB
Power Requirements
Power Consumption: 93 mA @ +5 V
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
CP-102ULCP-102U
1
5
6 9

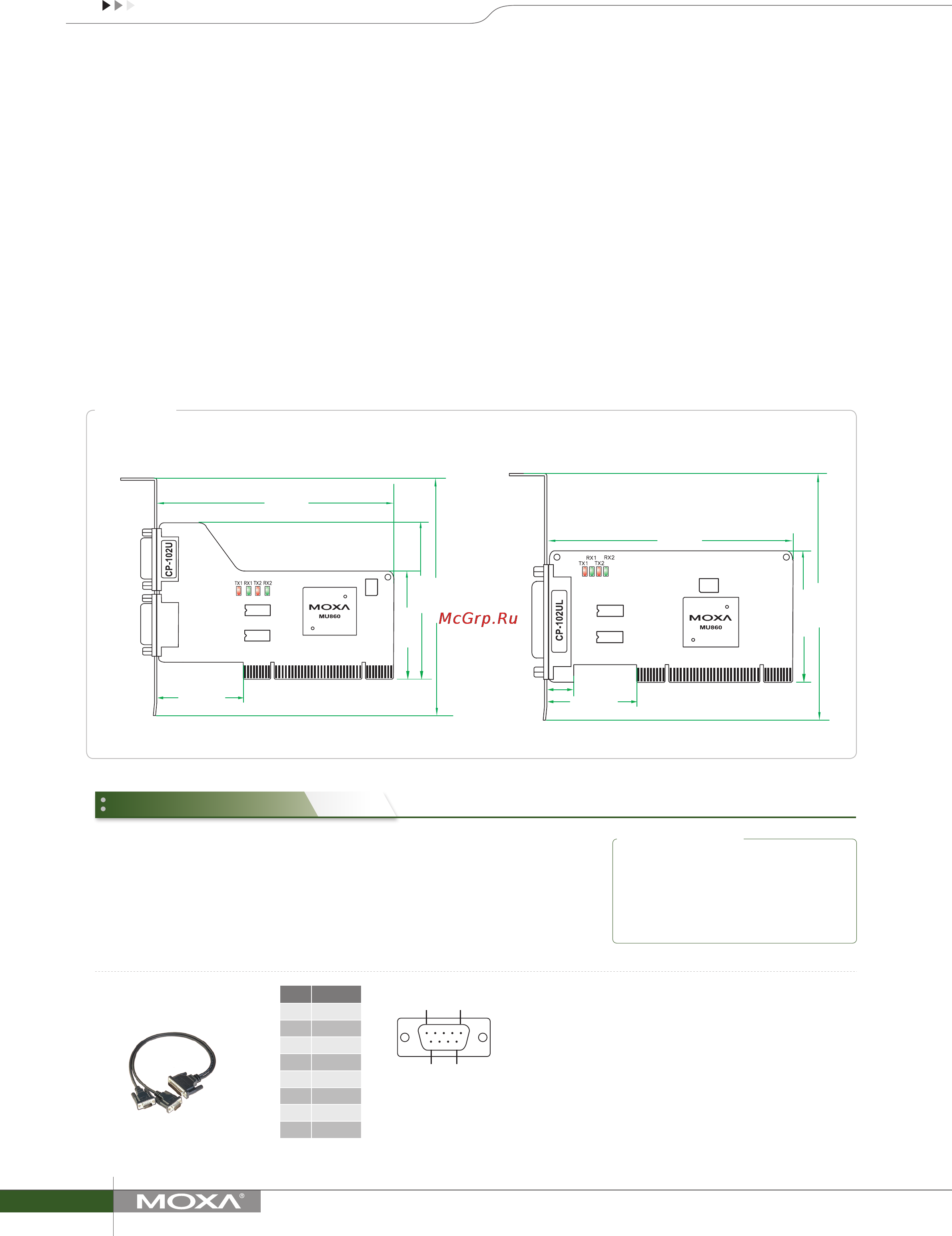

Dimensions
Unit: mm (inch)
Port 1 Port 2
120 (4.72)
55 (2.17)
80 (3.15)
121 (4.76)
41.7 (1.64)
120 (4.72)
64.5 (2.53)
121 (4.76)
41.7 (1.64)
16 (0.63)
Ordering Information
