Universal PCI Board Software Installation
3-36

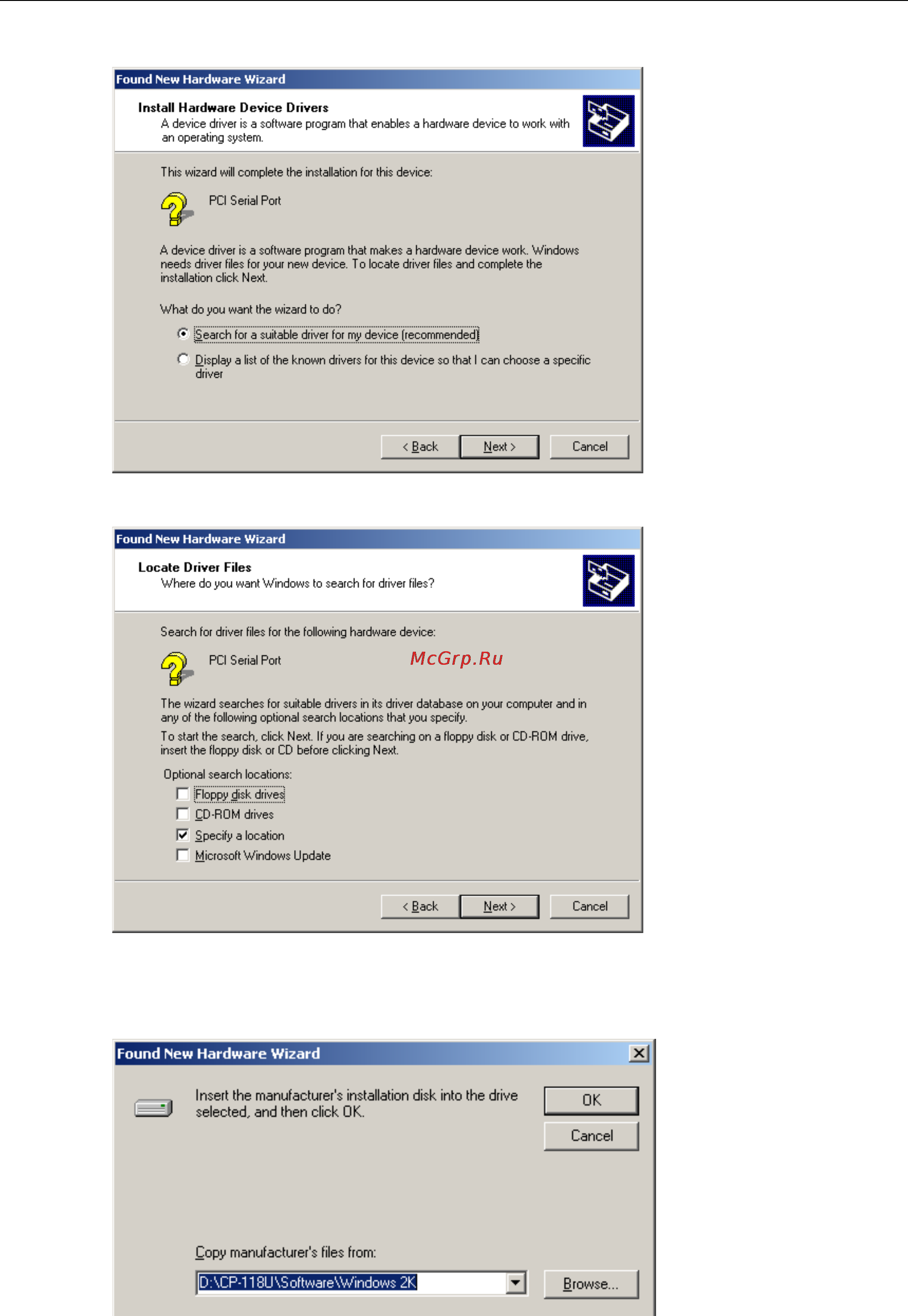

2. Select Search for a suitable driver for my device (recommended) and click Next to continue.
3. Select Specify a location and click Next to continue.
4. Click Browse and select the appropriate directory on the Document & Software CD for the driver. Drivers
for all operating systems are located under the product folder in the \Software directory (e.g., under
\CP-118U Series\Software). Select the \Windows 2K folder and click Next to continue.
