PCI Express Boards Software Installation
3-17

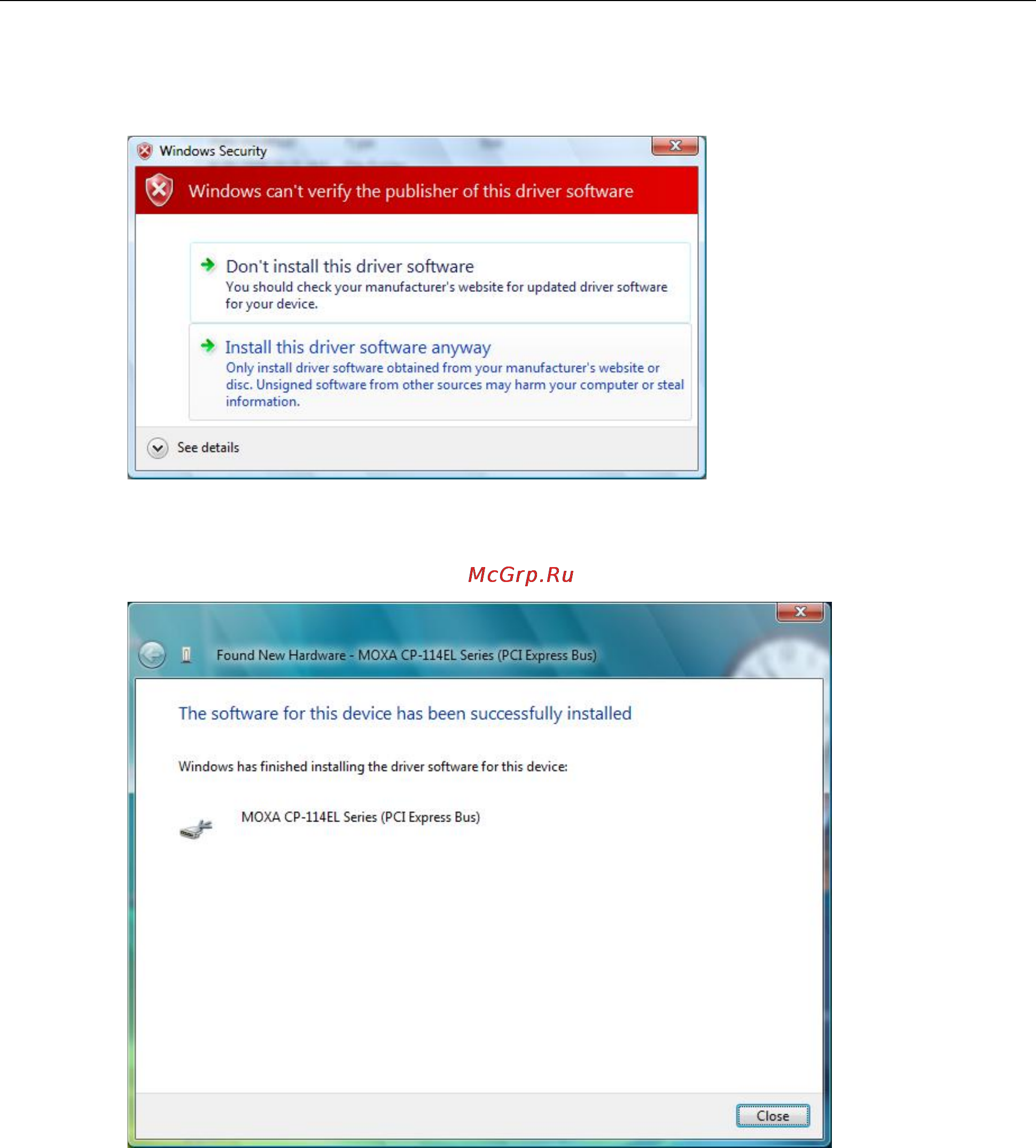

5. Wait while the installation wizard searches for the correct drivers. The next window that opens cautions you
that although this software has not passed Windows Logo testing, the driver has been tested and shown
that it can support the Windows OS. Click Install this driver software anyway to proceed.
6. Wait while the driver software is installed. The next window shows the model name of the board, and
indicates that Windows has completed the driver installation. Click Close to proceed with the rest of the
installation procedure.
