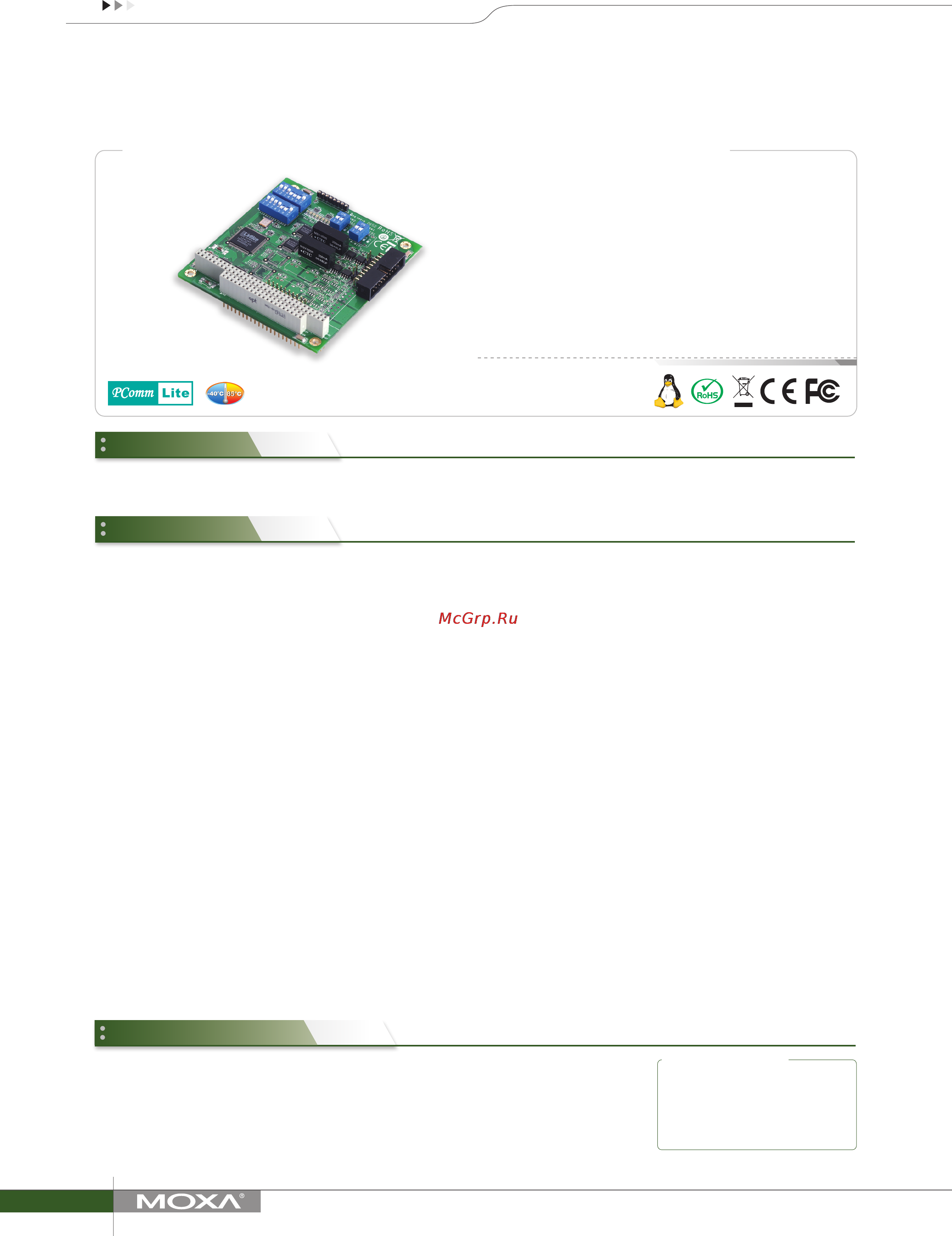

The CA-132/132I PC/104 modules are reliable, high performance,

multiport serial communication solutions that have 2 RS-422/485

ports, and can be used with PC/104 CPU boards that accept the

PC/104 expansion interface. Optional DB9 and DB25 connection cables

are available for connecting to serial devices, and the CA-132/132Is’

versatile driver support makes the modules suitable for a wide range

of applications.

2-port RS-422/485 PC/104 modules with optional 2 kV isolation

CA-132/132I Series

› Windows CE 5.0/6.0 and Windows XP embedded operating

systems supported

› Wide temperature models available for -40 to 85°C environments

Hardware

Comm. Controller: 16C550C or compatible x 2

Bus: PC/104 bus

Connector: 20-pin box header

LED Indicators: Built-in TX, RX LEDs for each port

DIP Switches: I/O base address, interrupt vector

Serial Interface

Performance

Baudrate: 50 bps to 921.6 kbps

Serial Communication Parameters

Data Bits: 5, 6, 7, 8

Stop Bits: 1, 1.5, 2

Parity: None, Even, Odd, Space, Mark

IRQ: 3, 4, 5, 6, 7, 9, 10, 11, 12, 15 (shared for all ports)

FIFO: 64 bytes

Serial Signals

RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND

Fixed TTY Drivers: QNX 4, QNX 6

Linux Real TTY Drivers: Linux 2.4.x, 2.6.x

Physical Characteristics

Dimensions: 90 x 96 mm (3.54 x 3.78 in)

Environmental Limits

Operating Temperature:

Standard Models: 0 to 55°C (32 to 131°F)

Wide Temp. Models: -40 to 85°C (-40 to 185°F)

Storage Temperature: -40 to 85°C (-40 to 185°F)

EMI: EN 55022, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B

Class A

EMS: EN 55024, IEC 61000-6-2, IEC 61000-6-4, IEC 61000-4-2, IEC

61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC

61000-4-8, IEC 61000-4-11 (DIPS)

Green Product: RoHS, CRoHS, WEEE

MTBF (mean time between failures)

Time: 536,288 hrs

Database: Telcordia (Bellcore), GB

Power Requirements

Available Models

CA-132: 2-port RS-422/485 PC/104 module, 0 to 55°C operating temperature

CA-132I: 2-port RS-422/485 PC/104 module with electrical isolation, 0 to 55°C operating temperature

CA-132-T: 2-port RS-422/485 PC/104 module, -40 to 85°C operating temperature

CA-132I-T: 2-port RS-422/485 PC/104 module with electrical isolation, -40 to 85°C operating temperature

Connection Options (can be purchased separately)

CBL-F20M9x2-50: 20-pin box header to DB9 male x 2 connection cable, 50 cm

CBL-F20M25x2-50: 20-pin box header to DB25 male x 2 connection cable, 50 cm
